Local Image Features

COS 351 - Computer Vision

image representations

• Templates
  • intensity, gradients, etc.
• Histograms
  • color, texture, SIFT descriptors, etc.

image representations: histograms

Global Histogram

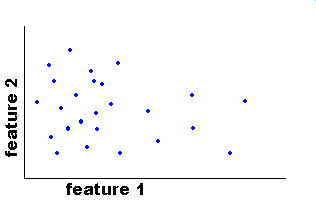

• Represent distribution of features
  • color, texture, depth, ...

image representations: histograms

Histogram: Probability or count of data in each bin

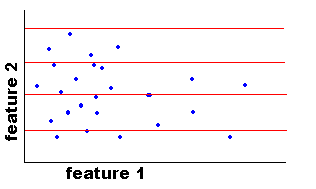

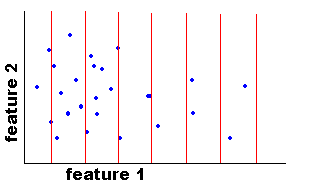

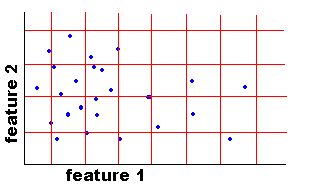

Joint Histogram requires lots of data loss of resolution to avoid empty bins Marginal histogram requires independent features more data/bin than joint histogram

image representations: histograms

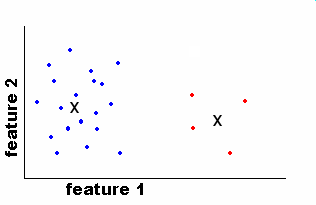

Clustering: Use the same cluster centers for all images

what do we compute histograms of?

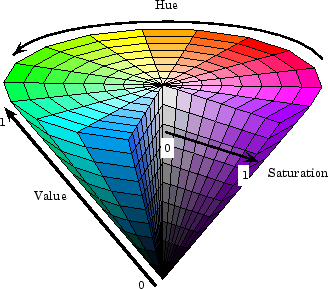

• Color
• Texture (filter banks or HOG over regions)

what do we compute histograms of?

Different local feature descriptors:

• Scale-Invariant Feature Transform (SIFT)
• Speeded Up Robust Features (SURF)
• Shape Context
• Geometric Blur
• Histogram of Oriented Gradients (HOG)
• Gradient Location and Orientation Histogram (GLOH)
• ...

local descriptors: SIFT

SIFT vector formation:

• Computed on rotated and scaled version of window according to computed orientation and scale
  • resample the window
• Based on gradients weighted by Gaussian of variance half the window (for smooth falloff)

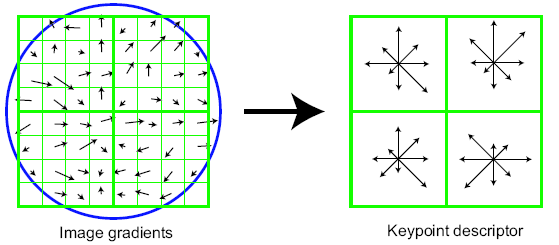

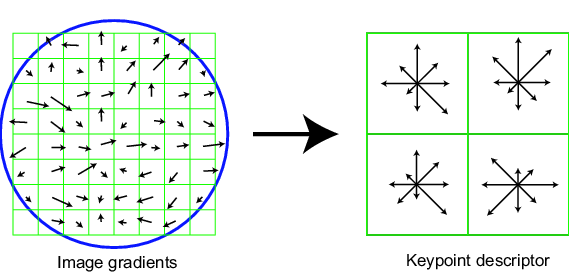

local descriptors: SIFT

SIFT vector formation:

• 4x4 array of gradient orientation histogram weighted by magnitude (showing only 2x2 below)
• 8 orientations times 4x4 array = 128 dimensions
• Motivation: some sensitivity to spatial layout, but not too much

local descriptors: SIFT

Ensure smoothness:

• Gaussian weight
• Trilinear interpolation
• a given gradient contributes to 8 bins: 4 in space times 2 in orientation

local descriptors: SIFT

Reduce effect of illumination:

• 128-dim vector normalized to 1
• Threshold gradient magnitudes to avoid excessive influence of high gradients
  • After normalization, clamp gradients > 0.2
  • Renormalize

local descriptors: SURF

Fast approximation of SIFT idea

• Efficient computation by 2D box filters and integral images
• \(\Rightarrow\) 6 times faster than SIFT
• Equivalent quality for object identification

GPU implementation available, link

• Feature extraction @ 200Hz (detector + descriptor, 640x480 image)

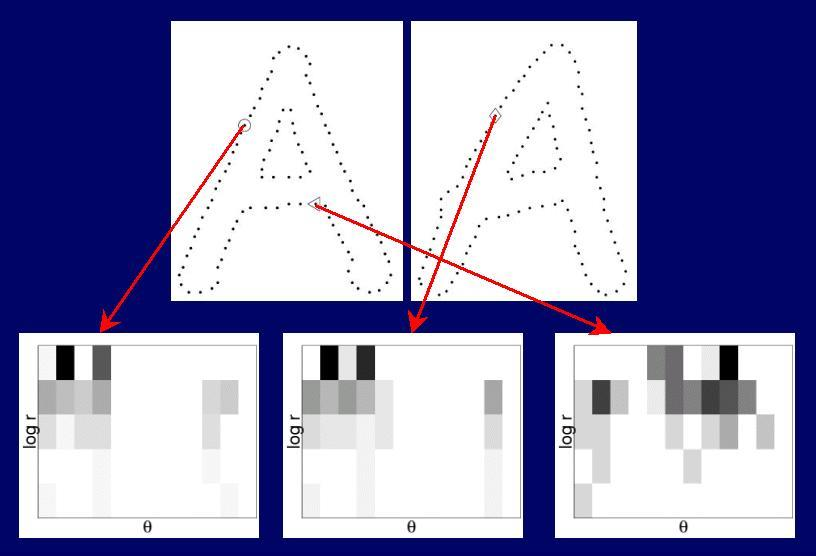

local descriptors: shape context

• Count the number of points inside each bin
• Log-polar binning
  • more precision for nearby points
  • more flexibility for farther points

local descriptors: shape context

local descriptors: geometric blur

• Compute edges at four orientations
• Extract a patch in each channel
• Apply spatially varying blur and sub-sample

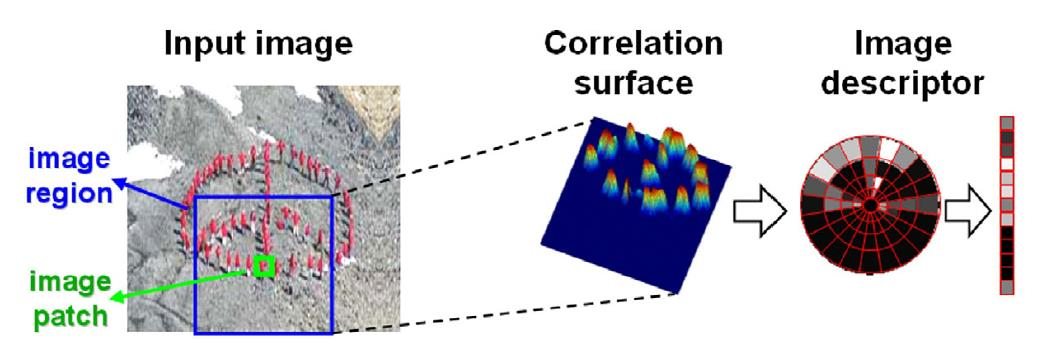

local descriptors: self-similarity

local descriptors: self-similarity

local descriptors: self-similarity

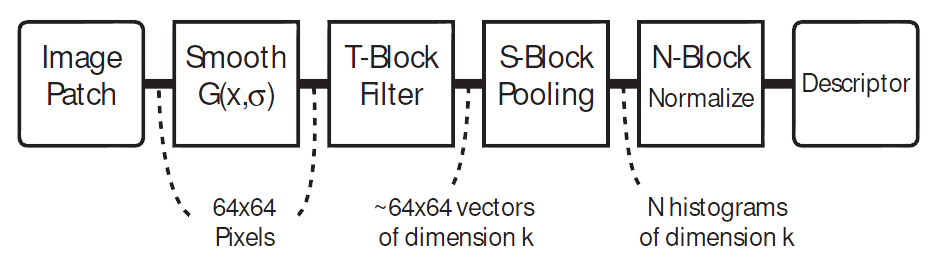

learning local image descriptors

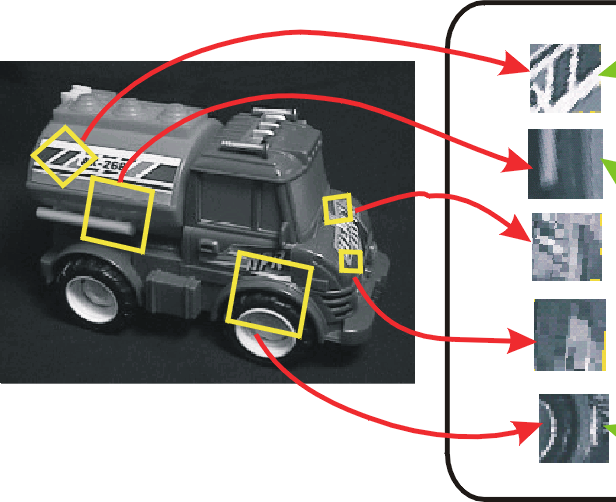

matching local features

• Nearest neighbor (Euclidean distance)

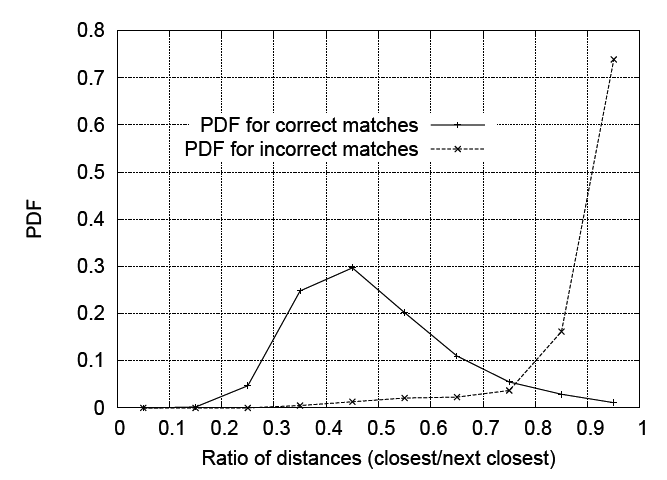

• Threshold ratio of nearest to 2nd nearest descriptor

choosing a descriptor

• Again, need not stick to one
• For object instance recognition or stitching, SIFT or variant is a good choice

things to remember

Descriptors: robust and selective

• spatial histograms of orientation
• SIFT
