geometry crash course / review

COS 350 - Computer Graphics

geometry crash course / review

geometric types

segment

segment: set of points (line) between two points

\[ \tilde\p(t) = \tilde\a + t(\tilde\b - \tilde\a) \text{ with } t \in [0,1] \]

note: linear interpolation of points, parameterized by \(t\)

\[ \begin{array}{rclcl} \point{p}(t) & = & \point{a} + t(\point{b} - \point{a}) & = & \point{a} + t\vector{b} - t\vector{a} \\ & = & \point{a} - t\vector{a} + t\vector{b} & = & (1-t)\vector{a} + t\vector{b} \end{array} \]

ray

ray: infinite line from point in a given direction

\[ \point{p}(t) = \point{e} + t\direction{d}, \text{ with } t \in \rangeZeroInf \]

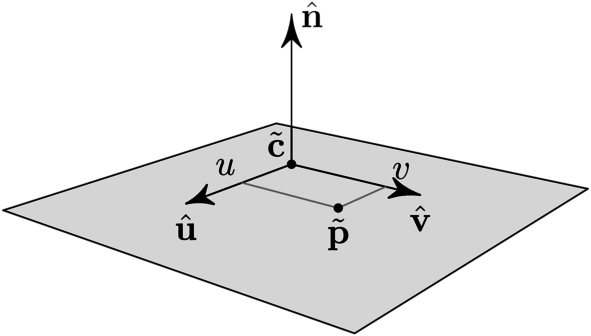

infinite plane

\(\tilde\p \in \text{plane} \iff (\tilde\p - \tilde\c) \* \hat\n = 0 \iff \tilde\p \* \hat\n = d\)
- note: last eqn slightly abuses notation
\(\tilde\p(u,v) = \tilde\c + u \* \hat\u + v \* \hat\v\) with \((u,v) \in (-\infty,\infty)^2\)
- normal: \(\hat\n = \hat\u \xx \hat\v\)

triangle

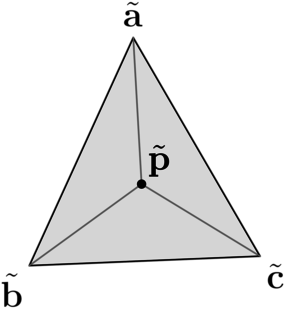

triangle baricentric coordinates

\(\tilde\p(\alpha,\beta,\gamma) = \alpha \tilde\a + \beta \tilde\b + \gamma \tilde\c\) with \(\alpha + \beta + \gamma = 1\)
- note: slightly abuses notation
\(\tilde\p(\alpha,\beta) = \alpha (\tilde\a-\tilde\c) + \beta (\tilde\b-\tilde\c) + \tilde\c\)
\(\alpha = \mathit{area}\left( \tilde\b\tilde\c\tilde\p \right) / \mathit{area}\left( \tilde\a\tilde\b\tilde\c \right)\), ...

sphere

\(\tilde\p \in \text{sphere} \iff || \tilde\p-\tilde\c || = r\)
\(\tilde\p(\theta,\phi) = \tilde\c + r \* \left( \cos \phi \sin \theta, \sin \phi \sin \theta, \cos \theta \right)\)

geometry crash course / review

frames

frame

coordinate system (aka frame)

\[ \frame{f}_{2D} = \{ \point{f}_o, \direction{f}_x, \direction{f}_y \} \qquad \frame{f}_{3D} = \{ \point{f}_o, \direction{f}_x, \direction{f}_y, \direction{f}_z \} \]

\(\point{f}_o\): position, called "origin"
\(\direction{f}_x\), \(\direction{f}_y\), \(\direction{f}_z\): orthonormal axes
default (or world) frame: origin at \((0,0,0)\) and three major axes

frame

point coords and vector coords are defined wrt a frame

\(\tilde\p=(p_x,p_y,p_z)\) wrt \(\{\tilde\f_o,\hat\f_x,\hat\f_y,\hat\f_z\}\) (world if not specified)

changing frames

change of coordinate system from world (\(\frame{f}\)) to local (\(\frame{f}'\))

general: transform \(\frame{f} \rightarrow \frame{f}'\), where \(\frame{f}'\) is defined wrt to \(\frame{f}\)
\(\point{p} = (p_x, p_y, p_z)\) is defined wrt to \(\frame{f}\)
find equivalent \(\point{p}' = (p'_x, p'_y, p'_z)\), defined wrt to \(\frame{f}'\)
\(\point{p}' = \left( (\point{p} - \point{f}'_o) \* \direction{f}'_x, (\point{p} - \point{f}'_o) \* \direction{f}'_y, (\point{p} - \point{f}'_o) \* \direction{f}'_z \right)\)

⇒

changing frames

change of coordinate system from local (\(\frame{f}'\)) to world (\(\frame{f}\))

general: transform \(\frame{f}' \rightarrow \frame{f}\), where \(\frame{f}'\) is defined wrt to \(\frame{f}\)
\(\tilde\p' = (p'_x, p'_y, p'_z)\) is defined wrt to \(\frame{f}'\)
find equivalent \(\tilde\p = (p_x, p_y, p_z)\), defined wrt to \(\frame{f}\)
\(\tilde\p = \tilde\f'_o + p'_x \hat\f'_x + p'_y \hat\f'_y + p'_z \hat\f'_z\)

⇐

changing frames

vector coords are defined wrt a frame

assuming \(\frame{f}'\) is defined wrt to \(\frame{f}\)
to change coord system, ignore origin
\(\v = v'_x \hat\f'_x + v'_y \hat\f'_y + v'_z \hat\f'_z\)
\(\v' = \left( \v \* \hat\f'_x, \v \* \hat\f'_y, \v \* \hat\f'_z \right)\)

direction coords are defined wrt a frame

same as vector
normalize afterwards to help reduce numerical errors

constructing frames

construct a frame from two arbitrary vectors \(\x'\), \(\y'\)

assume that \(\x'\) is not parallel to \(\y'\)
\(\hat\x = \normalize{\x'}\)
\(\hat\z = \normalize{\x' \xx \hat\y}\)
\(\hat\y = \hat\z \xx \hat\x\)

construct a frame from an arbitrary vector \(\z'\)

pick a random direction \(\hat\v\) not parallel to \(\z'\)
\(\hat\x = \normalize{\v \xx \z'}\)
\(\hat\y = \normalize{\z' \xx \hat\x}\)
\(\hat\z = \normalize{\z'}\)

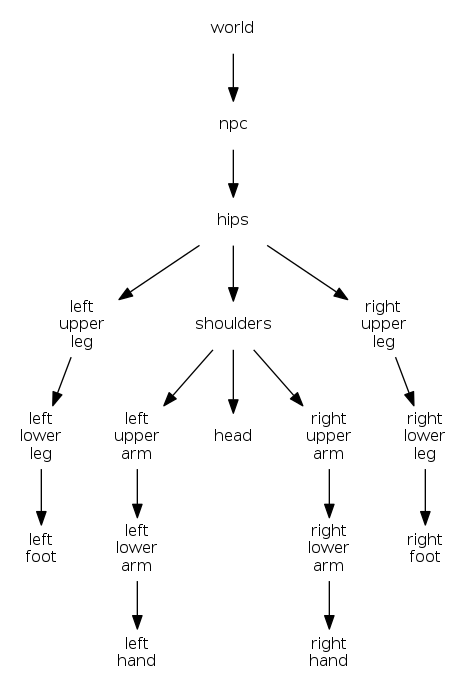

frame hierarchy

all frames are defined wrt to other frames (except world is defined wrt to itself)

produces a hierarchy of frames
useful for:
- rigid body animations
- acceleration structures
- ray-marching sdf/csg/implicit surfaces

objects with local frame

maths simplify to elegant equations when surfaces (ex: planes, triangles, spheres) are defined wrt a local coordinate system

transform surface to use frame

set \(\tilde\f_o\) to the "center" of the surface (\(\tilde\c\))
- surface center is now at the origin
- \(\tilde\c = 0\)
set \(\hat\f_x\),\(\hat\f_y\),\(\hat\f_z\) to \(\hat\u\),\(\hat\v\),\(\hat\n\)
- \(\hat\u\),\(\hat\v\),\(\hat\n\) now aligned to major axes
- \(\hat\u = (1,0,0)\), \(\hat\v = (0,1,0)\), \(\hat\n = (0,0,1)\)
