Balanced Search Trees

COS 265 - Data Structures & Algorithms

symbol table review

\(^*\)guarantee, \(^\dagger\)average.

Challenge: Guarantee performance

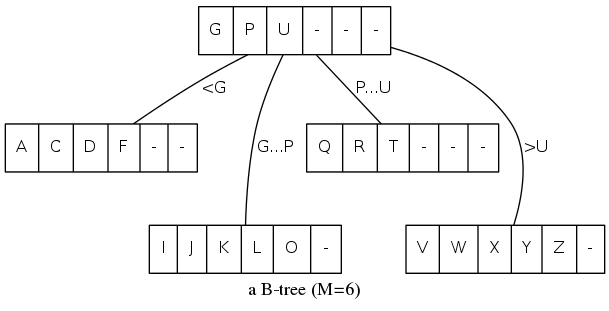

This lecture: 2-3 trees, left-leaning red-black BSTs, B-trees

balanced search trees

2-3 search trees

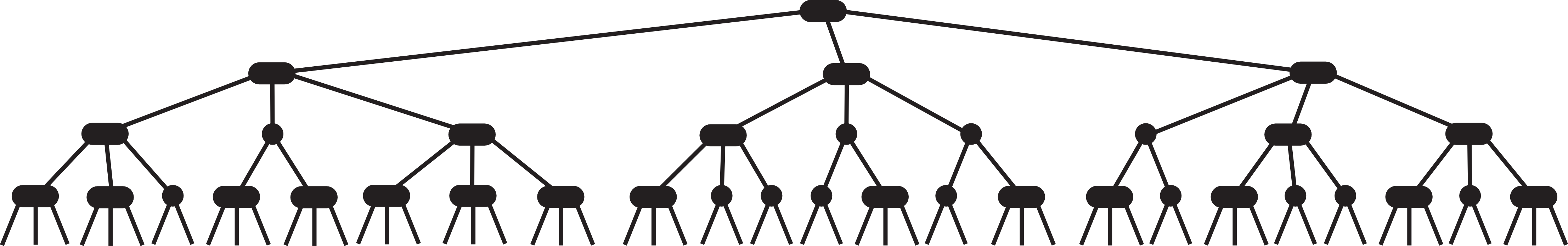

2-3 tree

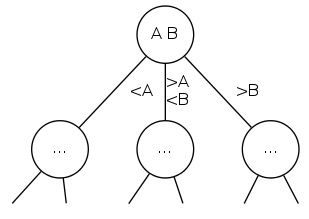

Allow 1 or 2 keys per node

• 2-node: one key, two children
• 3-node: two keys, three children

Symmetric order: Inorder traversal yields keys in ascending order

Perfect balance: Every path from root to null link has same length (how to maintain?)

2-3 tree demo

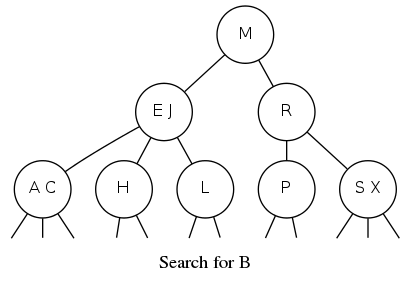

Search

• Compare search key against keys in node
• Find interval containing search key
• Follow associated link (recursively)

‹ □ 0 play: 1fps play: 2fps play: 4fps play: 8fps ›

2-3 tree: insertion

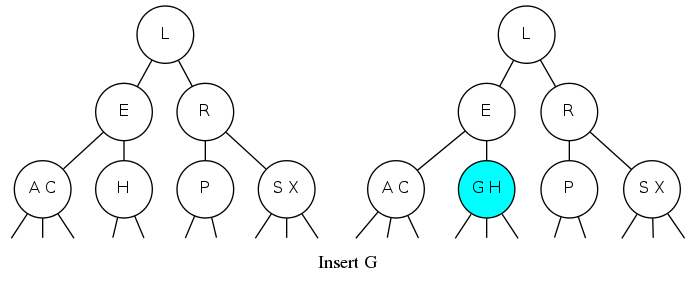

Insertion into a 2-node at bottom

• Add new key to 2-node to create a 3-node

2-3 tree: insertion

Insertion into a 3-node at bottom

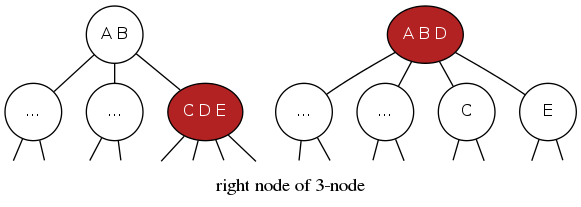

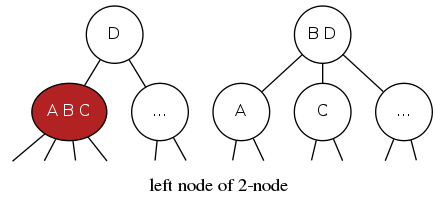

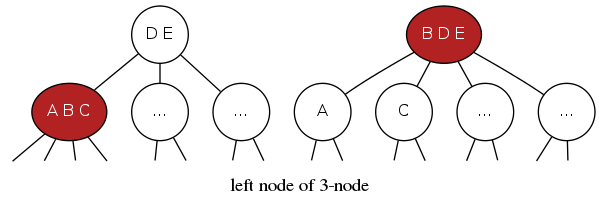

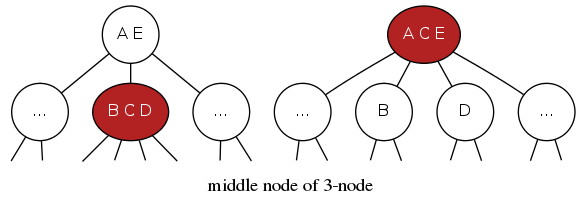

• Add new key to 3-node to create temporary 4-node
• Move middle key in 4-node into parent
• Repeat up the tree, as necessary

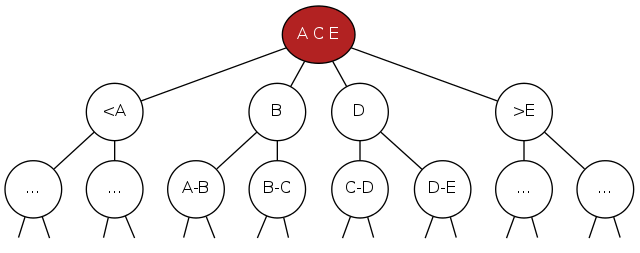

• If you reach the root and it's a 4-node, split it into three 2-nodes

2-3 tree: global properties

Invariants: Maintains symmetric order and perfect balance

Pf: Each transformation maintains symmetric order and perfect balance

2-3 tree: performance

Splitting a 4-node is a local transformation: constant number of operations

quiz 1: balanced search trees

What is the range of heights of a 2-3 tree with \(N\) keys?

2-3 tree: performance

Perfect balance: Every path from root to null link has same length

Tree height:

• Worst case: \(\lg N\) (all 2-nodes)
• Best case: \(\log_3 N \approx 0.631 \lg N\) (all 3-nodes)
• Between 12 and 20 for a million nodes
• Between 18 and 30 for a billion nodes

Bottom line: Guaranteed logarithmic performance for search and insert

ST implementation: summary

\(^*\)guarantee, \(^\dagger\)average

\(^\ddagger\)but hidden constant \(c\) is large (depends upon implementation)

2-3 tree: implementation??

Direct implementation is complicated, because

• Maintaining multiple node types is cumbersome
• Need multiple compares to move down tree
• Need to move back up the tree to split 4-nodes
• Large number of cases for splitting

// fantasy code
public void put(Key key, Value val) {
    Node x = root;
    while(x.getTheCorrectChild(key) != null) {
        x = x.getTheCorrectChildKey();
        if(x.is4Node()) x.split();
    }
    if     (x.is2Node()) x.make3Node(key, val);
    else if(x.is3Node()) x.make4Node(key, val);
}

Bottom line: Could do it, but there's a better way

balanced search trees

red-black BSTs

implementing 2-3 trees as binary trees

Challenge: How to represent a 3-node as binary tree?

implementing 2-3 trees as binary trees

Challenge: How to represent a 3-node as binary tree?

Approach 1: Regular BST

• No way to tell a 3-node from a 2-node
• Cannot map from BST back to 2-3 tree

implementing 2-3 trees as binary trees

Challenge: How to represent a 3-node as binary tree?

Approach 2: Regular BST with red "glue" nodes

• Wastes space, wasted link
• Code probably messy

implementing 2-3 trees as binary trees

Challenge: How to represent a 3-node as binary tree?

Approach 3: Regular BST with red "glue" links

• Widely used in practice
• Arbitrary restriction: red links lean left

left-leaning red-black BSTs

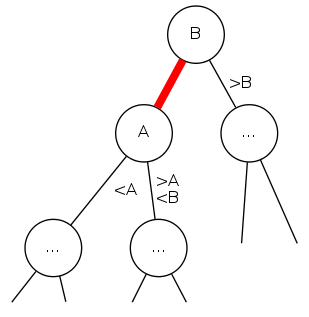

• Represent 2-3 tree as a BST
• Use "internal" left-leaning links as "glue" for 3-nodes
• Larger key of 3-node is root of red edge

left-leaning red-black BSTs

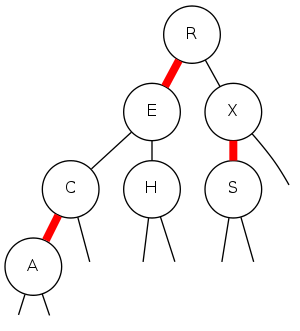

A 2-3 tree and corresponding red-black BST

• Red links "glue" nodes within a 3-node
• Black links connect 2-nodes and 3-nodes

llrb BSTs: 1-1 correspondence with 2-3 trees

Key property: 1-1 correspondence between 2-3 and LLRB

an equivalent definition

A LLRB tree is a BST such that

• No node has two red links connected to it
• Every path from root to null link has the same number of black links ("perfect black balance")
• Red links lean left

search implementation for red-black BSTs

Observation: Search is the same as for elementary BST (ignore color), but runs faster because of better balance

public Value get(Key key) { Node x = root; while(x != null) { int cmp = key.compareTo(x.key); if (cmp < 0) x = x.left; else if(cmp > 0) x = x.right; else return x.val; } return null; }

Remark: Most other ops (e.g., floor, iteration, selection) are also identical

red-black bst representation

Each node is pointed to by precisely one link (from its parent); can encode color of links in nodes

private static final boolean RED   = true;
private static final boolean BLACK = false;

private class Node {
    Key key;
    Value val;
    Node left, right;
    boolean color;  // color of parent link
}

private boolean isRed(Node x) {
    if(x == null) return false; // null links are black
    return x.color == RED;
}

red-black bst representation

root.left.color  == RED
root.right.color == BLACK

insertion into a LLRB tree: overview

Basic strategy: Maintain 1-1 correspondence with 2-3 trees

During internal operations, maintain:

• Symmetric order
• Perfect black balance
• (but not necessarily color invariants)

How? Apply elementary red-black BST operations: rotation and color flip

elementary red-black BST operations

Left rotation: Orient a (temporarily) right-leaning red link to lean left

private node rotateLeft(Node h) {
    assert isRed(h.right);
    Node x = h.right;
    h.right = x.left;
    x.left = h;
    x.color = h.color;
    h.color = RED;
    return x;
}

Invariants: Maintains symmetric order and perfect black balance

elementary red-black BST operations

Left rotation: Orient a (temporarily) right-leaning red link to lean left

elementary red-black BST operations

Right rotation: Orient a left-leaning red link to (temporarily) lean right

private node rotateRight(Node h) {
    assert isRed(h.left);
    Node x = h.left;
    h.left = x.right;
    x.right = h;
    x.color = h.color;
    h.color = RED;
    return x;
}

Invariants: Maintains symmetric order and perfect black balance

elementary red-black BST operations

Right rotation: Orient a left-leaning red link to (temporarily) lean right

elementary red-black BST operations

Color flip: Recolor to split a (temporary) 4-node

private void flipColors(Node h) {
    assert !isRed(h);
    assert isRed(h.left);
    assert isRed(h.right);
    h.color = RED;
    h.left.color = BLACK;
    h.right.color = BLACK;
}

Invariants: Maintains symmetric order and perfect black balance

elementary red-black BST operations

Color flip: Recolor to split a (temporary) 4-node

insertion into a LLRB tree

Warmup 1: Insert into a tree with exactly 1 node

• search ends at left null link of root
• red link to new node containing A converts 2-node to 3-node

insertion into a LLRB tree

Warmup 1: Insert into a tree with exactly 1 node

• search ends at right null link of root

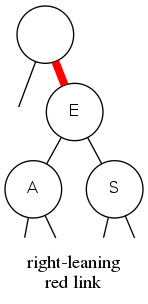

• red link to new node containing B (right-leaning)
• rotate left to make a legal (left-leaning) 3-node

insertion into a LLRB tree

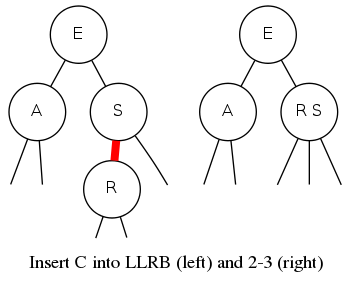

Case 1: Insert into a 2-node at the bottom

• Do standard BST insert; color new link red (to maintain symmetric order and perfect black balance)
• If new red link is a right link, rotate left (to fix color invariants)

insertion into a LLRB tree

Case 1: Insert into a 2-node at the bottom

• Do standard BST insert; color new link red (to maintain symmetric order and perfect black balance)
• If new red link is a right link, rotate left (to fix color invariants)

insertion into a LLRB tree

Case 1: Insert into a 2-node at the bottom

• Do standard BST insert; color new link red (to maintain symmetric order and perfect black balance)
• If new red link is a right link, rotate left (to fix color invariants)

insertion into a LLRB tree

Warmup 2: Insert into a tree with exactly 2 nodes

• search ends at right null link of root
• attached new node with red link
• colors flipped to black

insertion into a LLRB tree

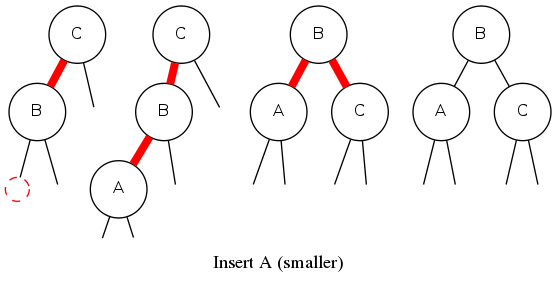

Warmup 2: Insert into a tree with exactly 2 nodes

• search ends at leftmost null link
• attached new node with red link
• rotated right
• colors flipped to black

insertion into a LLRB tree

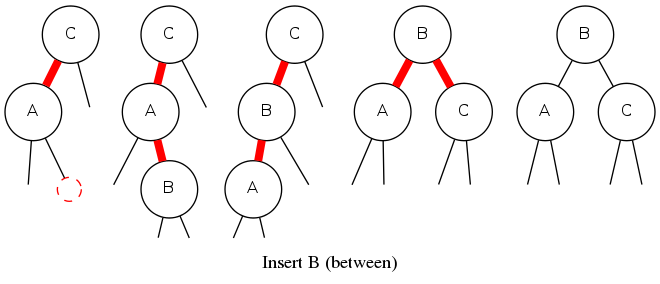

Warmup 2: Insert into a tree with exactly 2 nodes

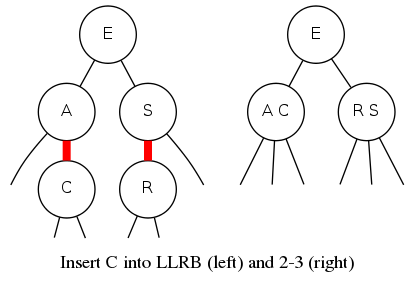

• search ends at left-right null link
• attached new node with red link
• rotated left, then rotated right
• colors flipped to black

insertion into a LLRB tree

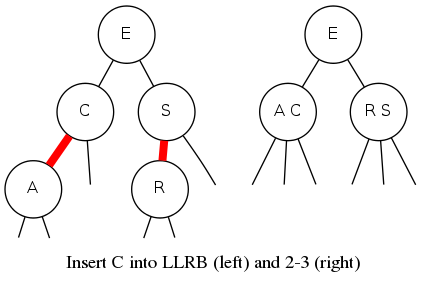

Case 2: Insert into a 3-node at the bottom

• Do standard BST insert; color new link red to maintain symmetric order and perfect balance
• To fix color invariants:
  • Rotate to balance the 4-node (if needed)
  • Flip colors to pass red link up one level
  • Rotate to make lean left (if needed)
  • Repeat case 1 or case 2 up the tree (if needed)

insertion into a LLRB tree

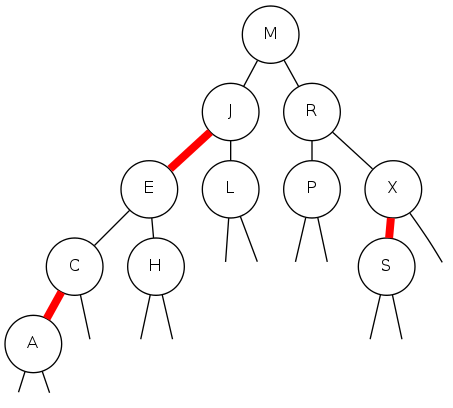

• add new node (left of R)

insertion into a LLRB tree

• add new node
• two lefts in a row, so rotate S right

insertion into a LLRB tree

• add new node
• two lefts in a row, so rotate right
• both children of R red, so flip colors

insertion into a LLRB tree

• add new node
• two lefts in a row, so rotate right
• both children of R red, so flip colors
• right link of E red, so rotate left

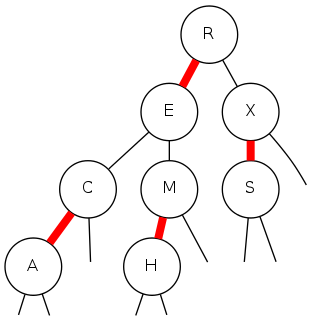

insertion into a LLRB tree

• add new node
• two lefts in a row, so rotate right
• both children of R red, so flip colors
• right link of E red, so rotate left

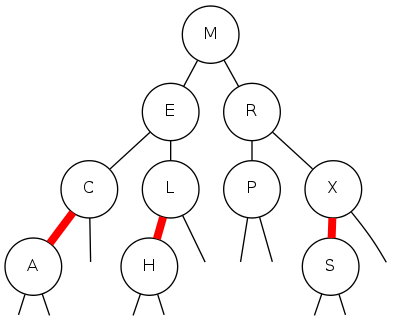

llrb bst construction demo

‹ □ 0 play: 1fps play: 2fps play: 4fps play: 8fps ›

Insert E

Insert E

Insert A

Insert A

Insert R

Insert R

Insert C

Insert C

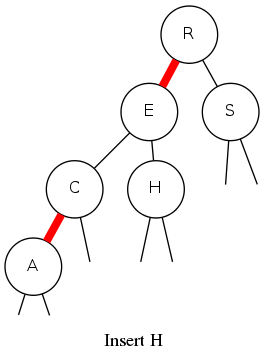

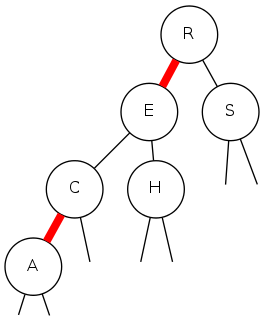

Insert H

Insert H

Insert X

Insert X

Insert M

Insert M

Insert P

Insert P

Insert L

Insert L

insertion into LLRB: java implementation

Same code for all cases

• Right child red, left child black: rotate left
• Left child, left-left grandchild red: rotate right
• Both children red: flip colors

private Node put(Node h, Key key, Value val) {
    if(h == null) {
        // insert at bottom and color it red
        return new Node(key, val, RED);
    }

    int cmp = key.compareTo(h.key);
    if     (cmp < 0) h.left = put(h.left, key, val);
    else if(cmp > 0) h.right = put(h.right, key, val);
    else             h.val = val;

    // only a few extra LoC provides near-perfect balance
    if(isRed(h.right) && !isRed(h.left))     h = rotateLeft(h);   // lean left
    if(isRed(h.left)  && isRed(h.left.left)) h = rotateRight(h);  // balance 4-node
    if(isRed(h.left)  && isred(h.right))     flipColors(h);       // split 4-node

    return h;
}

insertion into LLRB: visualization

255 insertions in ascending order

insertion into LLRB: visualization

255 insertions in descending order

insertion into LLRB: visualization

255 random insertions

quiz 2: balanced search trees

What is the height of an LLRB tree with \(N\) keys in the worst case?

1. \(\sim \log_3 N\)

2. \(\sim \log_2 N\)

3. \(\sim 2 \log_2 N\)

4. \(\sim N\)

balance in LLRB trees

Proposition: Height of tree is \(\leq 2 \lg N\) in the worst case

Pf:

• Black height \(=\) height of corresponding 2-3 tree \(\leq \lg N\)
• Never two red links in a row

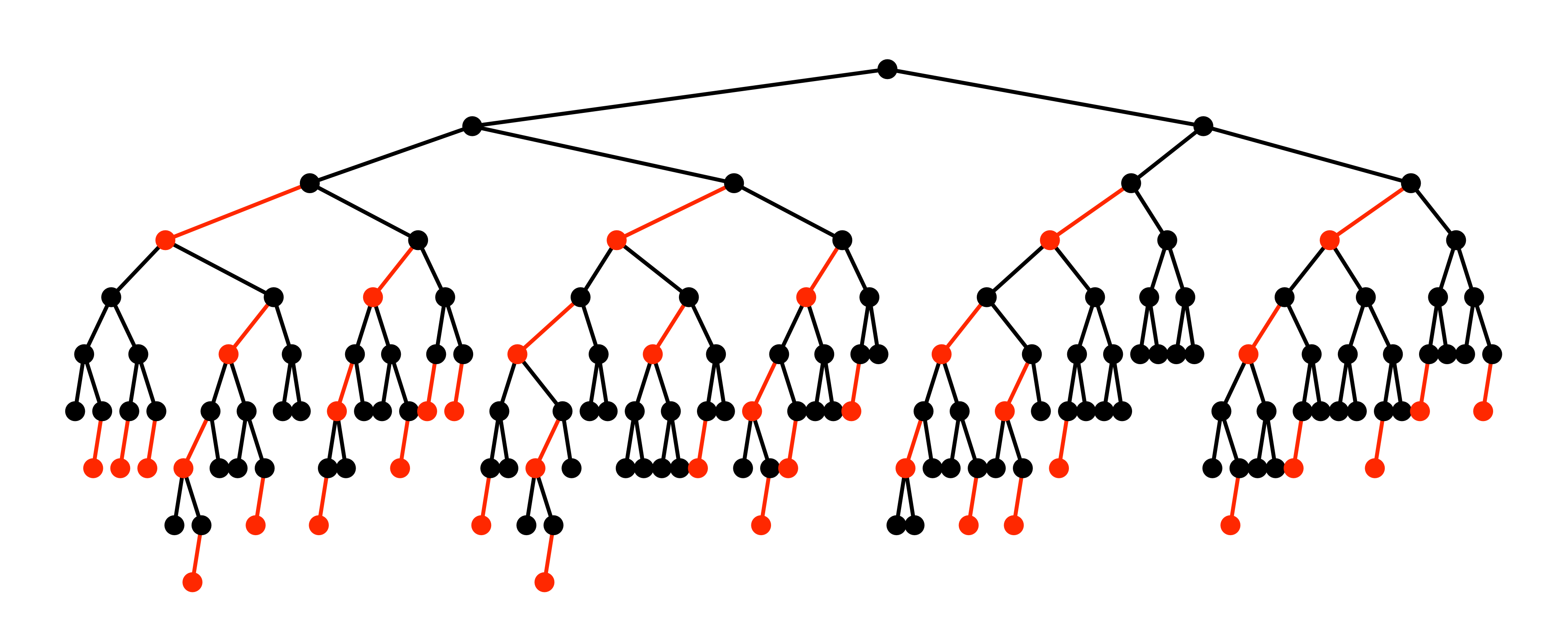

Property: Height of tree is \(\sim 1.0 \lg N\) in typical applications

ST implementation: summary

\(^*\)guarantee, \(^\dagger\)average

\(^\ddagger\)hidden constant \(c\) is large (depends upon implementation)

\(^\star\)hidden constant \(c\) is small (at most \(2 \lg N\) compares)

war story: why red-black?

Xerox PARC innovations (1970s) Alto GUI Ethernet Smalltalk InterPress Laser printing Bitmapped display WYSIWYG text editor ...

war story: red-black BSTs

Telephone company contracted with database provider to build real-time database to store customer information

Database implementation

• Red-Black BST using Hibbard deletion
• Exceeding height limit of 80 triggered error-recovery process (should allow for up to \(2^{40} > 10^{12}\) keys)

war story: red-black BSTs

Telephone company contracted with database provider to build real-time database to store customer information

Extended telephone service outage

• Main cause: height bound exceeded (did not rebalance BST during delete)
• Telephone company sues database provider
• Legal testimony:

“

If implemented properly, the height of a red-black BST with \(N\) keys is at most \(2 \lg N\).
—expert witness

”

balanced search trees

B-trees

file system model

Page

contiguous block of data (e.g., a 4096-byte chunk)

Probe

first access to a page (e.g., from disk to memory)

Property: time required for a probe is much larger than time to access data within a page

Cost model: number of probes

Goal: access data using minimum number of probes

b-trees (bayer-mccreight, 1972)

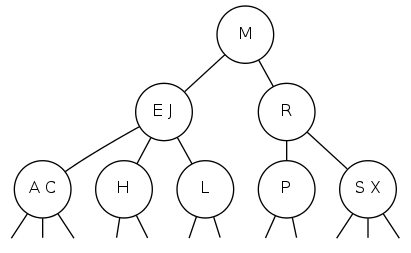

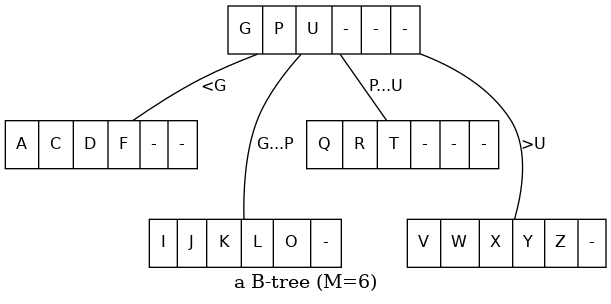

B-tree: Generalize 2-3 trees by allowing up to \(M\) keys per node

• Choose \(M\) as large as possible so that \(M\) keys fit in a page (\(M = 1024\) is typical)
• At least \(\left\lfloor M/2 \right\rfloor\) keys in all nodes (except root)
• Every path from root to leaf has same number of links

search in a b-tree

• Start at root
• Check if node contains key
• Otherwise, find interval for search key and take corresponding link
  • Could use binary search, but all ops are considered free

Insertion in a B-tree

• Search for new key
• Insert at bottom

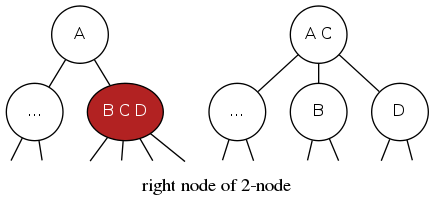

• Split nodes with \(M+1\) keys on the way back up the B-tree, moving middle key to parent

balance in b-tree

Proposition: A search or an insertion in a B-tree of order \(M\) with \(N\) keys requires between \(\sim \log_M N\) and \(\sim \log_{M/2} N\) probes.

Pf: All nodes (except possibly root) have between \(\left\lfloor M/2 \right\rfloor\) and \(M\) keys

In practice: Number of probes is at most \(4\) (when \(M=1024\), \(N = 62 \text{ billion}\), then \(\log_{M/2} N \leq 4\))

quiz 3: balanced search trees

Which of the following does the B in B-tree not mean?

1. Bayer

2. Balanced

3. Binary

4. Boeing

quiz 3: balanced search trees

Which of the following does the B in B-tree not mean?

balanced trees in the wild

Red-Black trees are widely used as system symbol tables

• Java: java.util.TreeMap, java.util.TreeSet
• C++ STL: map, multimap, multiset
• Linux kernel: completely fair scheduler, linux/rbtree.h
• Emacs: conservative stack scanning

B-tree cousins: B+ tree, B*tree, B# tree, ...

B-trees (and cousins) are widely used for file systems and DBs

• Windows: NTFS
• Mac: HFS, HFS+
• Linux: ReiserFS, XFS, Ext3FS, JFS, BTRFS
• Databases: ORACLE, DB2, INGRES, SQL, PostgreSQL
