Binary Search Trees

COS 265 - Data Structures & Algorithms

Binary Search Trees

BSTs

Binary Search Trees

Definition: A BST is a binary tree in symmetric order

A binary tree is either empty or a node with two disjoint binary trees (left and right)

Symmetric order: Each node has a key and every node's key is

• larger than all keys in its left subtree
• smaller than all keys in its right subtree

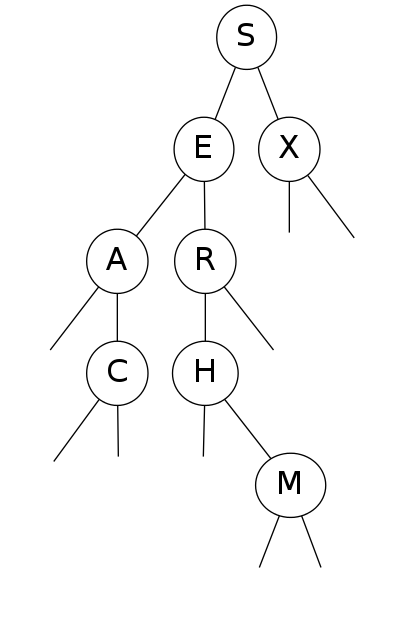

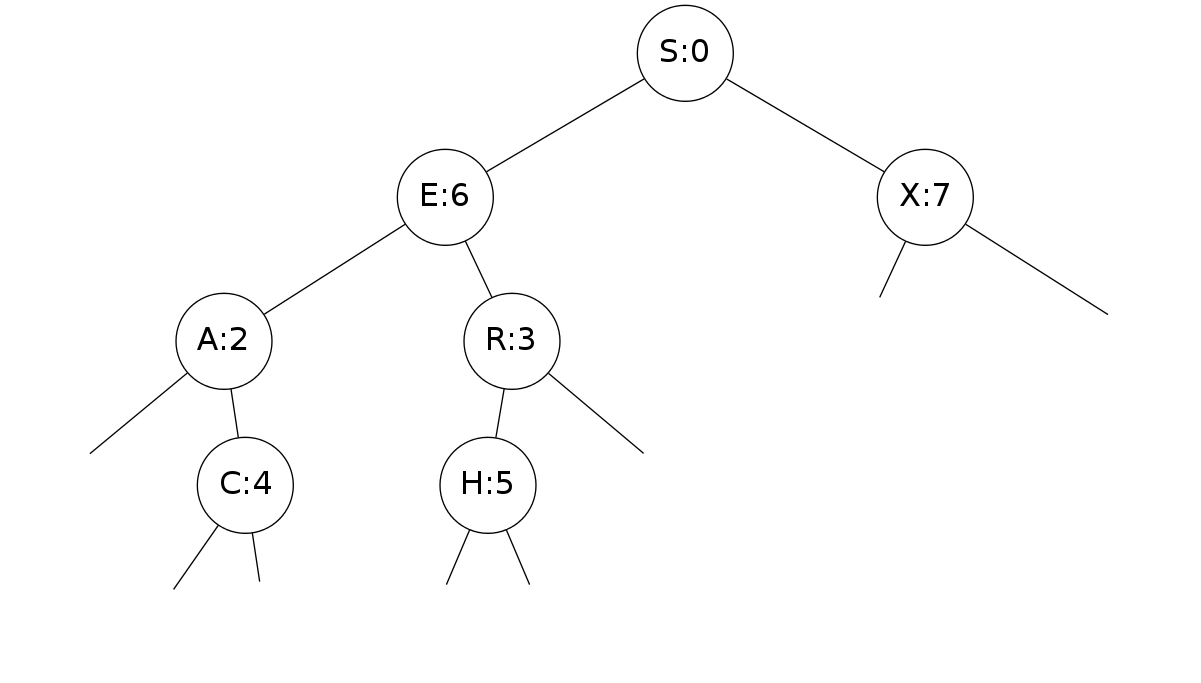

Binary Search Trees

• S-node is root of tree
• E-node is parent of A-node (left) and R-node (right)
• E-node and all children nodes is a subtree
• E-node has key = E, value = 6
• All nodes in subtree rooted at A have keys smaller than E
• All nodes in subtree rooted at R have keys larger than E

binary search tree demo

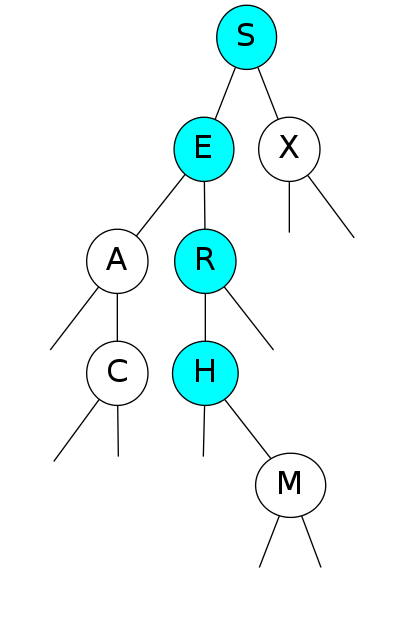

Search: if less, go left; if greater, go right; if equal, search hit

binary search tree demo

‹ □ 0 play: 1fps play: 2fps play: 4fps play: 8fps ›

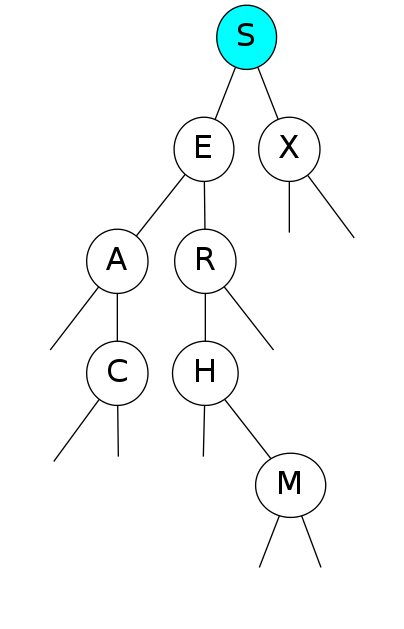

Search for A

Search for A

Search for A

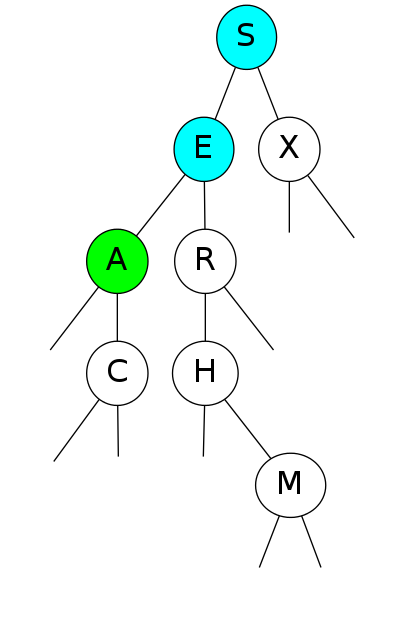

Search for A: Found!

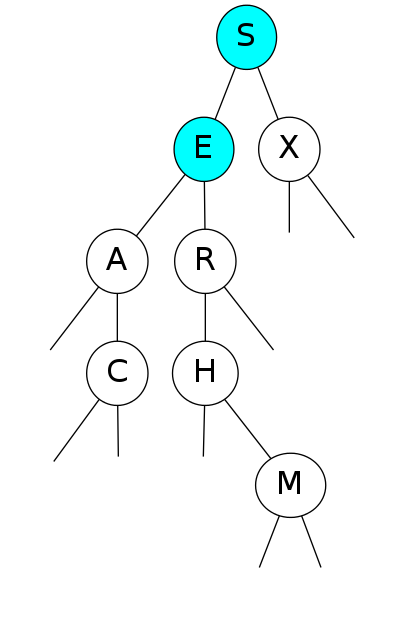

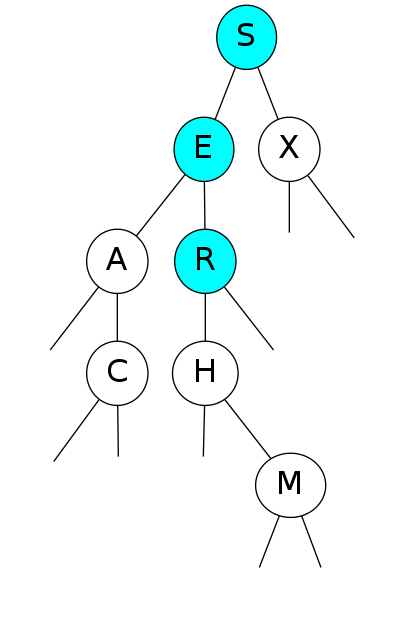

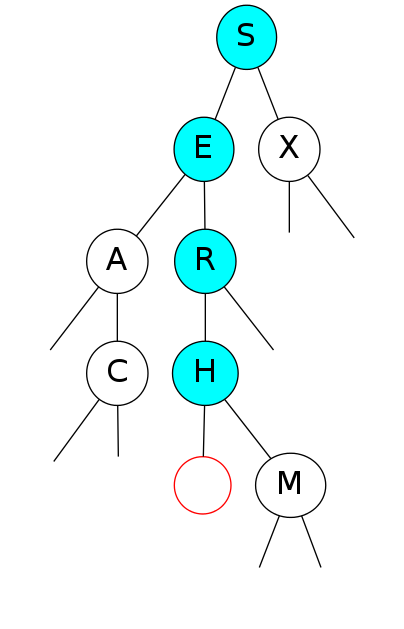

Search for F

Search for F

Search for F

Search for F

Search for F

Search for F: Not found!

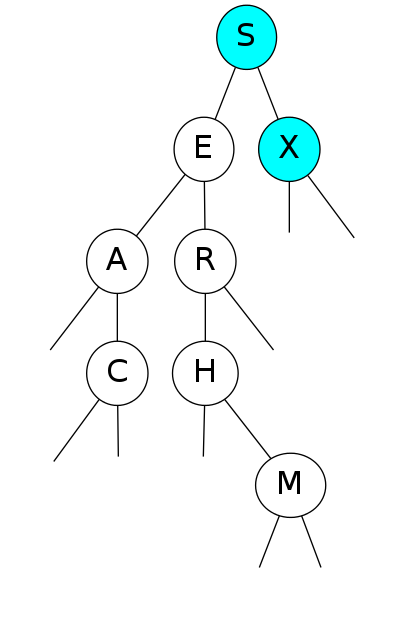

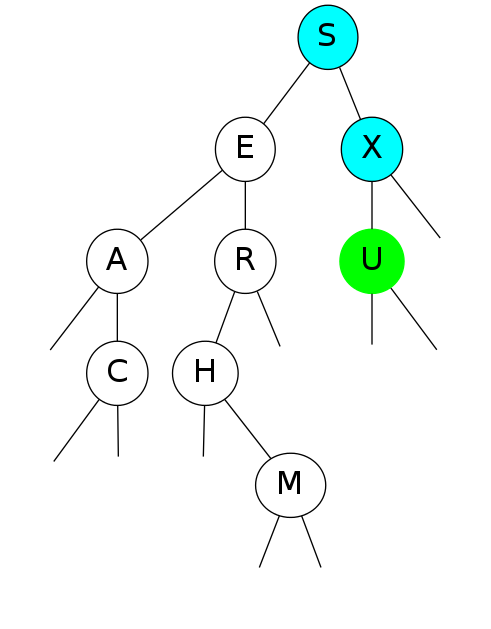

Insert U

Insert U

Insert U

Insert U

bst representation in java

Java definition: A BST is a reference to a root Node

A Node is composed of four fields:

• A Key and a Value
• A reference to the left and right subtree for smaller and larger keys (resp.)

// Key and Value are generic types; Key is Comparable
private class Node {
    private Key key;
    private Value val;
    private Node left, right;
    public Node(Key key, Value val) {
        this.key = key;
        this.val = val;
    }
}

BST implementation (skeleton)

public class BST<Key extends Comparable<Key>, Value> {
    private Node root;  // root of BST

    private class Node                  { /* prev slide */ }

    public void put(Key key, Value val) { /* next slides */ }

    public Value get(Key key)           { /* next slides */ }

    public void delete(Key key)         { /* next slides */ }

    public Iterable<Key> iterator()     { /* next slides */ }
}

bst search: java implementation

Get: return value corresponding to given key, or null if no such key

public Value get(Key key) {
    Node x = root;
    while(x != null) {
        int cmp = key.compareTo(x.key);
        if     (cmp < 0) x = x.left;
        else if(cmp > 0) x = x.right;
        else             return x.val;
    }
    return null;
}

Cost: number of compares \(= 1 + \text{depth of node}\)

bst insert

Put: Associate value with key Search for key, then two cases: Key in tree => reset value Key not in tree => add new node

Insert U Search for U ends at null

bst insert

Put: Associate value with key Search for key, then two cases: Key in tree => reset value Key not in tree => add new node

Insert U Create new node

bst insert

Put: Associate value with key Search for key, then two cases: Key in tree => reset value Key not in tree => add new node

Insert U Reset links on the way up

bst insert: java implementation

Put: Associate value with key

public void put(Key key, Value val) {
    root = put(root, key, val);
}

private Node put(Node x, Key key, Value val) {
    if(x == null) return new Node(key, val);
    int cmp = key.compareTo(x.key);
    // concise, but tricky, recursive code; read carefully!!
    if     (cmp < 0) x.left  = put(x.left, key, val);
    else if(cmp > 0) x.right = put(x.right, key, val);
    else             x.val   = val;
    return x;
}

Cost: Number of compares \(= 1 + \text{depth of node}\)

tree shape

• Many BSTs correspond to same set of keys
• Number of compares for search/insert \(= 1 + \text{depth of node}\)

Bottom line: tree shape depends on order of insertion

BST insertion: random order visualization

Ex: insert keys in random order

inorder traversal

• Traverse left subtree
• Enqueue key
• Traverse right subtree

// all keys, in order:
//     [smaller keys, in order]  key  [larger keys, in order]
public Iterable<Key> keys() {
    Queue<Key> q = new Queue<Key>();
    inorder(root, q);
    return q;
}

private void inorder(Node x, Queue<Key> q) {
    if(x == null) return;
    inorder(x.left, q);
    q.enqueue(x.key);
    inorder(x.right, q);
}

Property: Inorder traversal of a BST yields keys in ascending order

correspondence: BSTs and QS partitioning

 0 1 2 3 4 5 6 7 8 9 0 1 2 3
 P S E U D O M Y T H I C A L
 P S E U D O M Y T H I C A L                      |
 H L E A D O M C I|P|T Y U S            .---------P--.
 D C E A|H|O M L I . . . . .       .----H-------.   .-T-.
 A C|D|E . . . . . . . . . .    .--D--.    .----O   S   U-.
|A|C . . . . . . . . . . . .    A-.   E    I---.          Y
 .|C|. . . . . . . . . . . .      C          .-M
 . . .|E|. . . . . . . . . .                 L
 . . . . . I M L|O|. . . . .
 . . . . .|I|M L . . . . . .
 . . . . . . L|M|. . . . . .
 . . . . . .|L|. . . . . . .
 . . . . . . . . . . S|T|U Y
 . . . . . . . . . .|S|. . .
 . . . . . . . . . . . .|U|Y
 . . . . . . . . . . . . .|Y|
 A C D E H I L M O P S T U Y

Remark: Correspondence is 1–1 if array has no duplicate keys

correspondence: BSTs and QS partitioning

Remark: Correspondence is 1–1 if array has no duplicate keys

BSTs: mathematical analysis

Proposition: If \(N\) distinct keys are inserted into a BST in random order, the expected number of compares for a search/insert is \(\sim 2\ln N\).

Pf: 1–1 correspondence with quicksort partitioning

Proposition [Reed, 2003]: If \(N\) distinct keys are inserted into a BST in random order, the expected height is \(\sim 4.311 \ln N\) (expected depth of function-call stack in quicksort)

But... Worst-case height is \(N-1\) (exponentially small chance when keys are inserted in random order)

ST implementations: summary

\(^*\)guarantee, \(^\dagger\)average

Why not shuffle to ensure a (probabilistic) guarantee of \(\log N\)?

Binary search trees

ordered operations

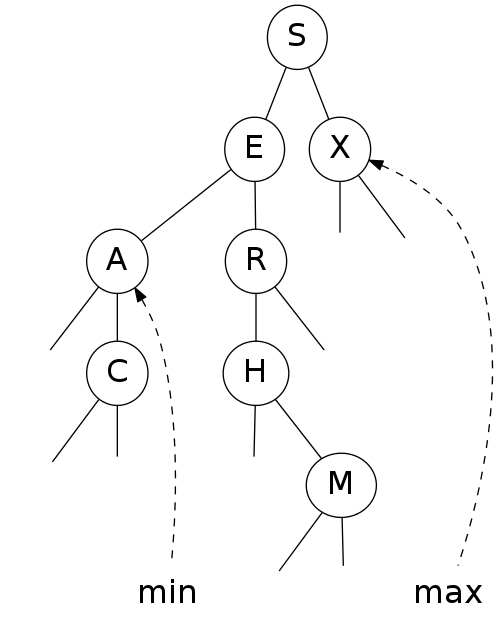

minimum and maximum

Minimum smallest key in table Maximum largest key in table

Q. How to find the min / max?

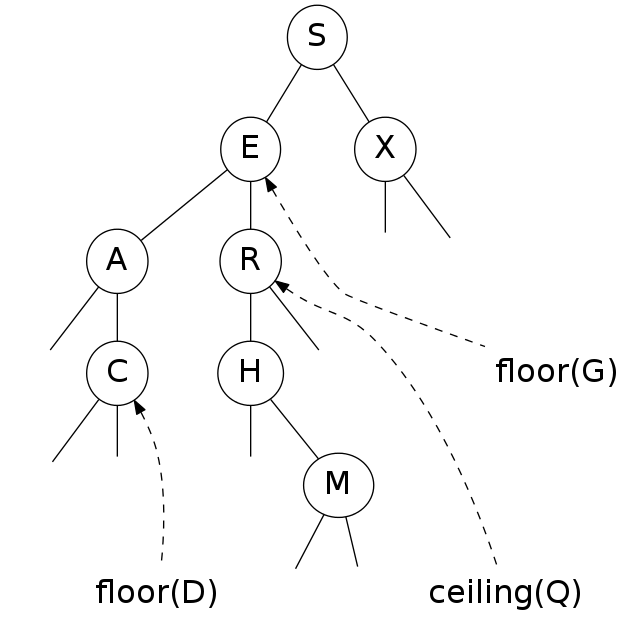

floor and ceiling

Floor Largest key \(\leq\) a given key Ceiling Smallest key \(\geq\) a given key

Q. How to find the floor / ceiling?

computing the floor

Floor: Find largest key \(\leq k\)

Three cases:

1. key in node \(x = k\): the floor of \(k\) is \(k\)
2. key in node \(x > k\): the floor of \(k\) is in the left subtree of \(x\)
3. key in node \(x < k\): the floor of \(k\) can't be in left subtree of \(x\), so it is either in the right subtree of \(x\) or it is the key in node \(x\)

Challenge: Prove to yourself that the above is correct.

computing the floor

public Key floor(Key key) {
    Node x = floor(root, key);
    if(x == null) return null;
    return x.key;
}

private Node floor(Node x, Key key) {
    if(x == null) return null;

    int cmp = key.compareTo(x.key);
    if(cmp == 0)  return x;
    if(cmp < 0)   return floor(x.left, key);

    Node t = floor(x.right, key);
    if(t != null) return t;
    else          return x;
}

rank and select

Q. How to implement rank() and select() efficiently?

1. In each node, store the number of nodes in its subtree

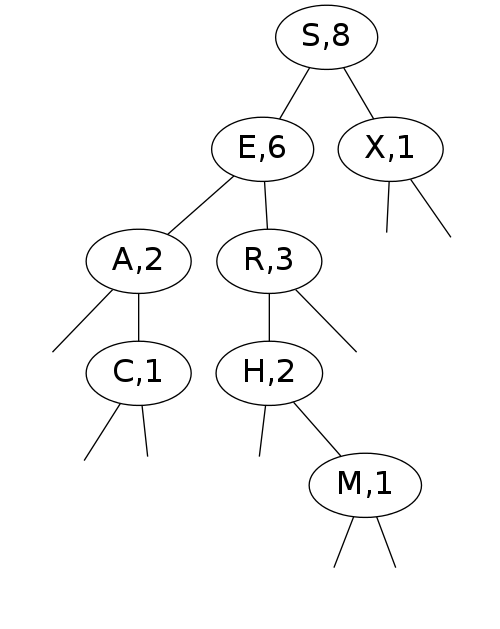

Number in node represents count of nodes in subtree rooted at node

BST implementation: subtree counts

public class BST<Key extends Comparable<Key>, Value> {
    private Node root;
    private class Node {
        /* ... */
        private int count; // number of nodes in subtree
    }

    private Node put(Node x, Key key, Value val) {
        if(x == null) {
            // init subtree count to 1
            return new Node(key, val, 1);
        }
        int cmp = key.compareTo(x.key);
        if     (cmp < 0) x.left  = put(x.left,  key, val);
        else if(cmp > 0) x.right = put(x.right, key, val);
        else             x.val   = val;
        x.count = 1 + size(x.left) + size(x.right);
        return x;
    }

    public  int size() { return size(root); }
    private int size(Node x) {
        if(x == null) return 0; // ok to call when x is null
        return x.count;
    }
}

computing the rank

Rank: How many keys \(< k\)?

Three cases:

1. key in node \(x = k\): All keys in left subtree \(< k\); no key in right subtree \(< k\)
2. key in node \(x > k\): No key in right subtree \(< k\); recursively compute rank in left subtree
3. key in node \(x < k\): All keys in left subtree \(< k\); some keys in right subtree may be \(< k\)

Easy recursive algorithm (3 cases)

rank

public int rank(Key key) { return rank(key, root); }

private int rank(Key key, Node x) {
    if(x == null) return 0;
    int cmp = key.compareTo(x.key);
    if     (cmp < 0) return rank(key, x.left);
    else if(cmp > 0) return 1 + size(x.left) + rank(key, x.right);
    else             return size(x.left);
}

symbol table operations summary

where \(h\) is height of BST (proportional to \(\log N\) if keys inserted in random order)

ST implementation: summary

\(^*\)guarantee, \(^\dagger\)average

Next: Deletion in BSTs

binary search trees

deletion

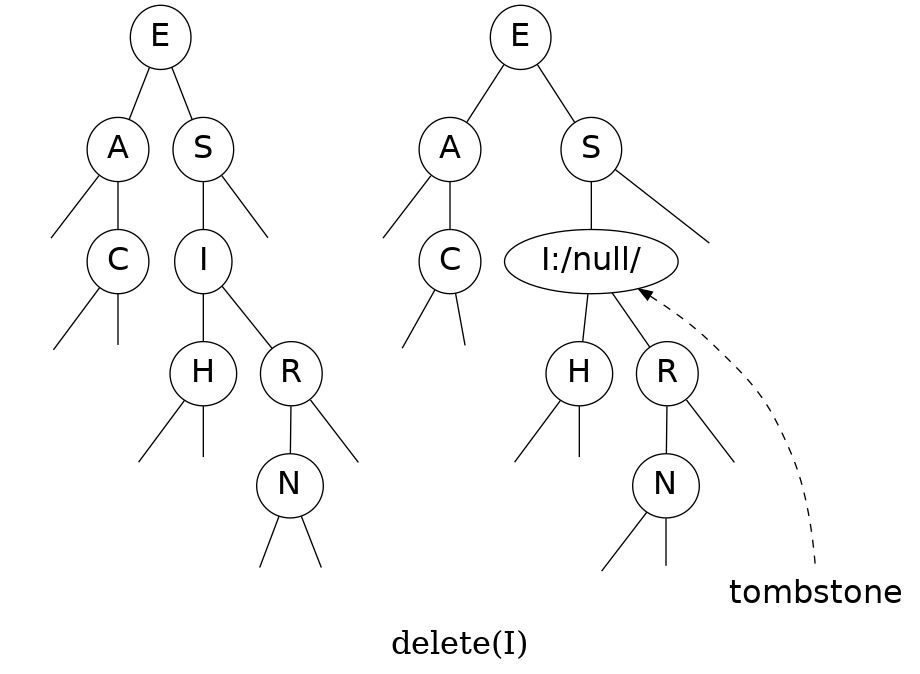

bst deletion: lazy approach

To remove a node with a given key:

• Set its value to null
• Leave key in tree to guide search (but don't consider it equal in search)

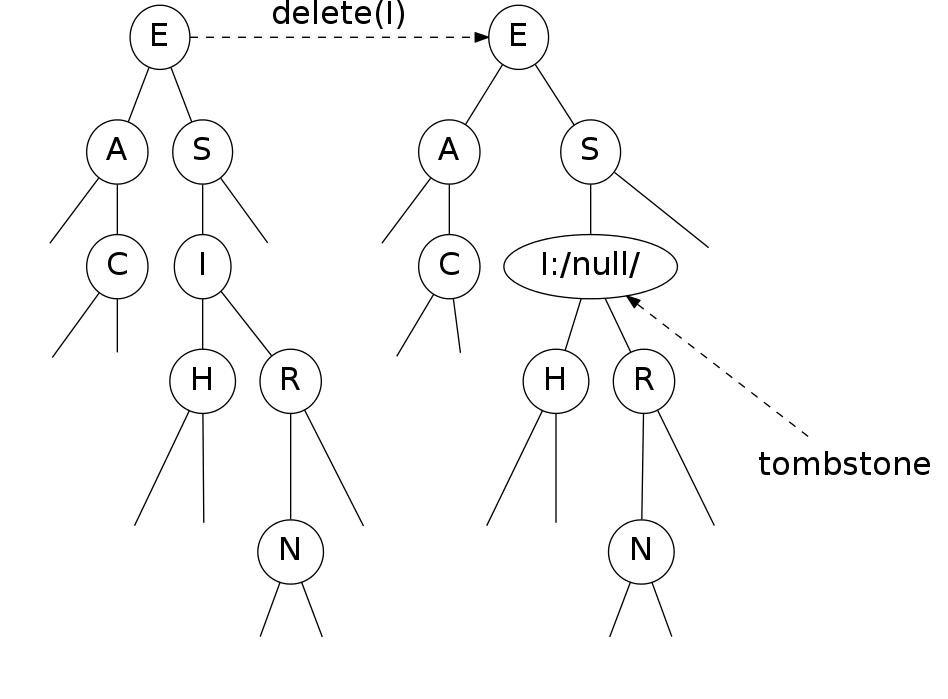

bst deletion: lazy approach

Cost: \(\sim 2 \ln N'\) per insert, search, and delete (if keys in random order), where \(N'\) is the number of key-value pairs ever inserted in the BST.

Unsatisfactory solution: tombstone (memory) overload

deleting the minimum

To delete the minimum key:

• Go left until finding a node with a null left link
• Replace that node by its right link
• Update subtree counts

public void deleteMin() {
    root = deleteMin(root);
}

private Node deleteMin(Node x) {
    if(x == null) return null;
    if(x.left == null) return x.right;
    x.left = deleteMin(x.left);
    x.count = 1 + size(x.left) + size(x.right);
    return x;
}

Challenge: Prove to yourself that the above is correct.

hibbard deletion

To delete a node with key k: search for node t containing key k.

1. 0 children: delete t by setting parent link to null
2. 1 child: delete t by replacing parent link
3. 2 children:
   • find successor x of t
     • the minimum in t's right subtree
   • remove x from tree, but don't garbage collect x!
     • x has no left child, so case "0 children" or "1 child"
   • put x in t's spot
     • still a BST!

hibbard deletion: java implementation

public void delete(Key key) {
    root = delete(root, key);
}

private Node delete(Node x, Key key) {
    if(x == null) return null;

    // search for key
    int cmp = key.compareTo(x.key);
    if     (cmp < 0) x.left  = delete(x.left,  key);
    else if(cmp > 0) x.right = delete(x.right, key);
    else {
        if(x.right == null) return x.left;  // no right child
        if(x.left  == null) return x.right; // no left child

        // replace with successor
        Node t = x;
        x = min(t.right);
        x.right = deleteMin(t.right);
        x.left = t.left;
    }
    // update subtree counts
    x.count = size(x.left) + size(x.right) + 1;
    return x;
}

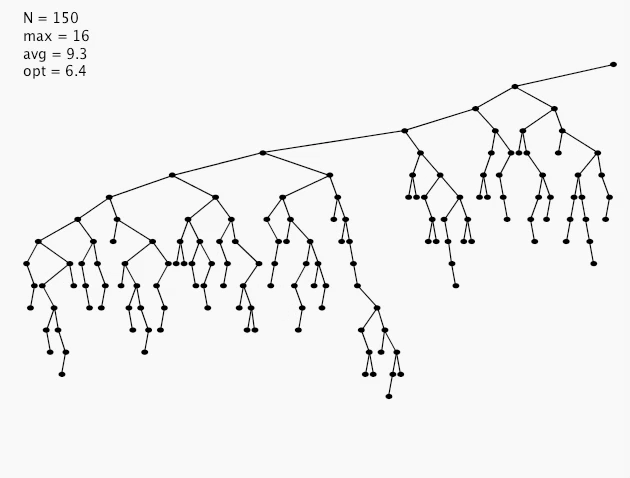

hibbard deletion: analysis

Unsatisfactory solution: not symmetric

Surprising consequence: Trees not random (!) \(\Rightarrow \sqrt{N}\) per op

Longstanding open problem: Simple and efficient delete for BSTs

ST implementation: summary

\(^*\)guarantee, \(^\dagger\)average

Average case for other BST operations also become \(\sqrt{N}\) if deletions allowed

Next: Guarantee logarithmic performance for all operations
