Priority Queues

COS 265 - Data Structures & Algorithms

Priority Queues

API and Elementary Implementations

collections

A collection is a data type that stores groups of items

data type	key operations	data structure
stack	`push`, `pop`	LL, resizing array
queue	`enqueue`, `dequeue`	LL, resizing array
priority queue	`insert`, `delete-max`	binary heap
symbol table	`put`, `get`, `delete`	BST, hash table
set	`add`, `contains`, `delete`	BST, hash table

collections

“
Show me your code and conceal your data structures, and I shall continue to be mystified. Show me your data structures, and I won't usually need your code; it'll be obvious
—Fred Brooks
”

priority queue

Collections: Insert and delete items. Which item to delete?

data type	item to remove
stack	most recently added
queue	least recently added
randomized queue	random item
priority queue	largest (or smallest) item

            Stack          Queue          RndQueue      MaxPQ
insert(P)   _              _              _             _
insert(Q)   __             __             __            __
insert(E)   ___            ___            ___           ___
remove()    __     => ?    __     => ?    __     => ?   __     => ?
insert(X)   ___            ___            ___           ___
insert(A)   ____           ____           ____          ____
insert(M)   _____          _____          _____         _____
remove()    ____   => ?    ____   => ?    ____   => ?   ____   => ?
insert(P)   _____          _____          _____         _____
insert(L)   ______         ______         ______        ______
insert(E)   _______        _______        _______       _______
remove()    ______ => ?    ______ => ?    ______ => ?   ______ => ?
            ^top           ^front         ^front        ^max

            Stack          Queue          RndQueue      MaxPQ
insert(P)   P              P              P             P
insert(Q)   QP             PQ             PQ            QP
insert(E)   EQP            PQE            PQE           QPE
remove()    __     => ?    __     => ?    __     => ?   __     => ?
insert(X)   ___            ___            ___           ___
insert(A)   ____           ____           ____          ____
insert(M)   _____          _____          _____         _____
remove()    ____   => ?    ____   => ?    ____   => ?   ____   => ?
insert(P)   _____          _____          _____         _____
insert(L)   ______         ______         ______        ______
insert(E)   _______        _______        _______       _______
remove()    ______ => ?    ______ => ?    ______ => ?   ______ => ?
            ^top           ^front         ^front        ^max

            Stack          Queue          RndQueue      MaxPQ
insert(P)   P              P              P             P
insert(Q)   QP             PQ             PQ            QP
insert(E)   EQP            PQE            PQE           QPE
remove()    QP     => E    QE     => P    PQ     => E   PE     => Q
insert(X)   ___            ___            ___           ___
insert(A)   ____           ____           ____          ____
insert(M)   _____          _____          _____         _____
remove()    ____   => ?    ____   => ?    ____   => ?   ____   => ?
insert(P)   _____          _____          _____         _____
insert(L)   ______         ______         ______        ______
insert(E)   _______        _______        _______       _______
remove()    ______ => ?    ______ => ?    ______ => ?   ______ => ?
            ^top           ^front         ^front        ^max

            Stack          Queue          RndQueue      MaxPQ
insert(P)   P              P              P             P
insert(Q)   QP             PQ             PQ            QP
insert(E)   EQP            PQE            PQE           QPE
remove()    QP     => E    QE     => P    PQ     => E   PE     => Q
insert(X)   XQP            QEX            PQX           XPE
insert(A)   AXQP           QEXA           PQXA          XPEA
insert(M)   MAXQP          QEXAM          PQXAM         XPMEA
remove()    ____   => ?    ____   => ?    ____   => ?   ____   => ?
insert(P)   _____          _____          _____         _____
insert(L)   ______         ______         ______        ______
insert(E)   _______        _______        _______       _______
remove()    ______ => ?    ______ => ?    ______ => ?   ______ => ?
            ^top           ^front         ^front        ^max

            Stack          Queue          RndQueue      MaxPQ
insert(P)   P              P              P             P
insert(Q)   QP             PQ             PQ            QP
insert(E)   EQP            PQE            PQE           QPE
remove()    QP     => E    QE     => P    PQ     => E   PE     => Q
insert(X)   XQP            QEX            PQX           XPE
insert(A)   AXQP           QEXA           PQXA          XPEA
insert(M)   MAXQP          QEXAM          PQXAM         XPMEA
remove()    AXQP   => M    EXAM   => Q    PQXM   => A   PMEA   => X
insert(P)   _____          _____          _____         _____
insert(L)   ______         ______         ______        ______
insert(E)   _______        _______        _______       _______
remove()    ______ => ?    ______ => ?    ______ => ?   ______ => ?
            ^top           ^front         ^front        ^max

            Stack          Queue          RndQueue      MaxPQ
insert(P)   P              P              P             P
insert(Q)   QP             PQ             PQ            QP
insert(E)   EQP            PQE            PQE           QPE
remove()    QP     => E    QE     => P    PQ     => E   PE     => Q
insert(X)   XQP            QEX            PQX           XPE
insert(A)   AXQP           QEXA           PQXA          XPEA
insert(M)   MAXQP          QEXAM          PQXAM         XPMEA
remove()    AXQP   => M    EXAM   => Q    PQXM   => A   PMEA   => X
insert(P)   PAXQP          EXAMP          PQXMP         PPMEA
insert(L)   LPAXQP         EXAMPL         PQXMPL        PPMLEA
insert(E)   ELPAXQP        EXAMPLE        PQXMPLE       PPMLEEA
remove()    ______ => ?    ______ => ?    ______ => ?   ______ => ?
            ^top           ^front         ^front        ^max

            Stack          Queue          RndQueue      MaxPQ
insert(P)   P              P              P             P
insert(Q)   QP             PQ             PQ            QP
insert(E)   EQP            PQE            PQE           QPE
remove()    QP     => E    QE     => P    PQ     => E   PE     => Q
insert(X)   XQP            QEX            PQX           XPE
insert(A)   AXQP           QEXA           PQXA          XPEA
insert(M)   MAXQP          QEXAM          PQXAM         XPMEA
remove()    AXQP   => M    EXAM   => Q    PQXM   => A   PMEA   => X
insert(P)   PAXQP          EXAMP          PQXMP         PPMEA
insert(L)   LPAXQP         EXAMPL         PQXMPL        PPMLEA
insert(E)   ELPAXQP        EXAMPLE        PQXMPLE       PPMLEEA
remove()    LPAXQP => E    XAMPLE => E    QXMPLE => P   PMLEEA => P
            ^top           ^front         ^front        ^max

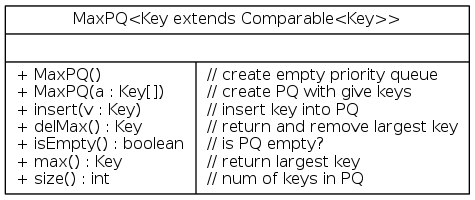

priority queue API

Requirement: Generic items are Comparable

Note: Duplicate keys allowed; delMax() and max() picks any maximum key

priority queue: applications

event-driven simulation: customers in a line, colliding particles
numerical computation: reducing roundoff error
discrete optimization: bin packing, scheduling
artificial intelligence: A* search
computer networks: web cache
operating systems: load balancing, interrupt handling
data compression: Huffman codes
graph searching: Dijkstra's algorithm, Prim's algoithm
number theory: sum of powers
spam filtering: Bayesian spam filtering
statistics: online median in data stream

priority queue: client example

Challenge: Find the largest $M$ items in a stream of $N$ items, where $N$ is huge and $M$ is large

fraud detection: isolate large $$ transactions
NSA monitoring: flag most suspicious documents

Constraint: not enough memory to store $N$ items

$ more transactions.txt
Turing      6/17/1990   644.08
vonNeumann  3/26/2002  4121.85
Dijkstra    8/22/2007  2678.40
vonNeumann  1/11/1999  4409.74
Dijkstra   11/18/1995   837.42
Hoare       5/10/1993  3229.27
vonNeumann  2/12/1994  4732.35
Hoare       8/18/1992  4381.21
Turing      1/11/2002    66.10
Thompson    2/27/2000  4747.08
Turing      2/11/1991  2156.86
Hoare       8/12/2003  1025.70
vonNeumann 10/13/1993  2520.97
Dijkstra    9/10/2000   708.95
Turing     10/12/1993  3532.36
Hoare       2/10/2005  4050.20

$ java TopM 5 < transactions.txt  # sort key = last col
Thompson    2/27/2000  4747.08
vonNeumann  2/12/1994  4732.35
vonNeumann  1/11/1999  4409.74
Hoare       8/18/1992  4381.21
vonNeumann  3/26/2002  4121.85

priority queue: client example

// Transaction data type is Comparable (ordered by $)
// use a min-oriented priority queue
MinPQ<Transaction> pq = new MinPQ<Transaction>();

while(StdIn.hasNextLine()) {
    String line = StdIn.readLine();
    Transaction transaction = new Transaction(line);
    pq.insert(transaction);
    if(pq.size() > M)
        pq.delMin();        // pq now contains largest M items
}

pq: unordered and ordered array

//                 unordered       ordered         reverse
// op     ret  sz  contents        contents        ordered
insert(P)      1   P               P               P
insert(Q)      2   P Q             P Q             Q P
insert(E)      3   P Q E           E P Q           Q P E
delMin()   E   2   P Q             P Q             Q P
insert(X)      3   P Q X           P Q X           X Q P
insert(A)      4   P Q X A         A P Q X         X Q P A
insert(M)      5   P Q X A M       A M P Q X       X Q P M A
delMin()   A   4   P Q X M         M P Q X         X Q P M
insert(P)      5   P Q X M P       M P P Q X       X Q P P M
insert(L)      6   P Q X M P L     L M P P Q X     X Q P P M L
insert(E)      7   P Q X M P L E   E L M P P Q X   X Q P P M L E
delMin()   E   6   P Q X M P L     L M P P Q X     X Q P P M L

A sequence of operations on a priority queue that is implemented using unordered array (left), ordered array (middle), and reverse ordered array (right)

What are runtimes of inserting and finding and deleting max?

pq: implementations cost summary

implementation	`insert`	`delMax`	`max`
unordered array	$1$	$N$	$N$
ordered array	$N$	$1$	$1$
goal for today	$\log N$	$\log N$	$\log N$

Order of growth of running time for priority queue with $N$ items

Priority Queues

Binary Heaps

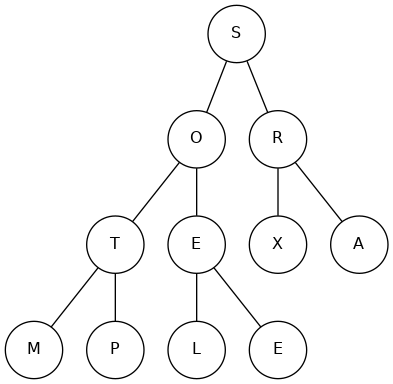

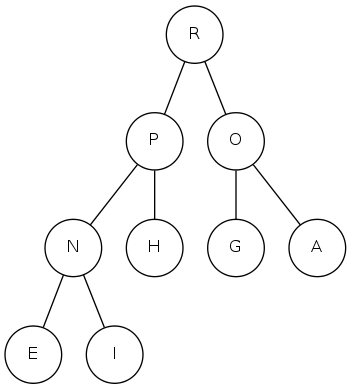

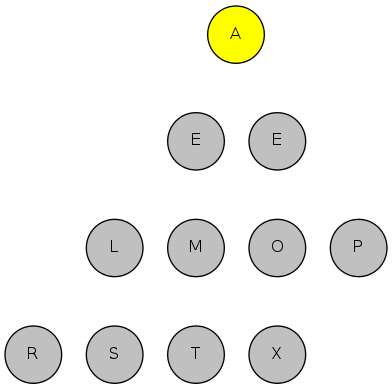

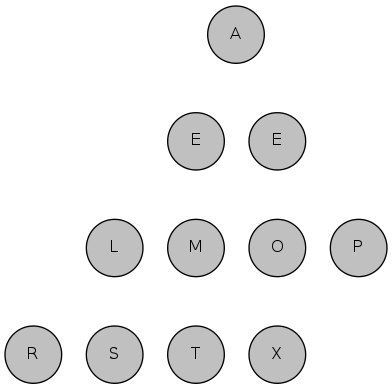

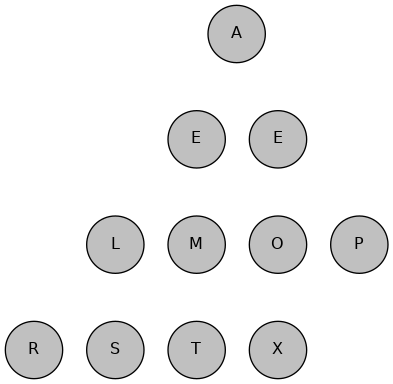

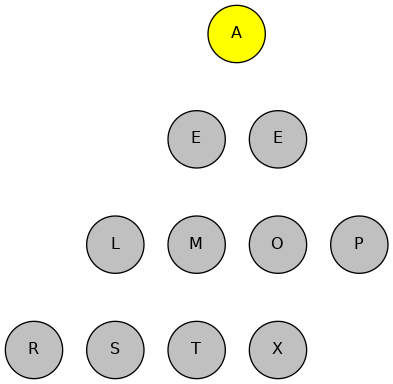

complete binary tree

Binary tree: Empty or node with links to left and right binary trees
Complete tree: Perfectly balanced tree, except for bottom level

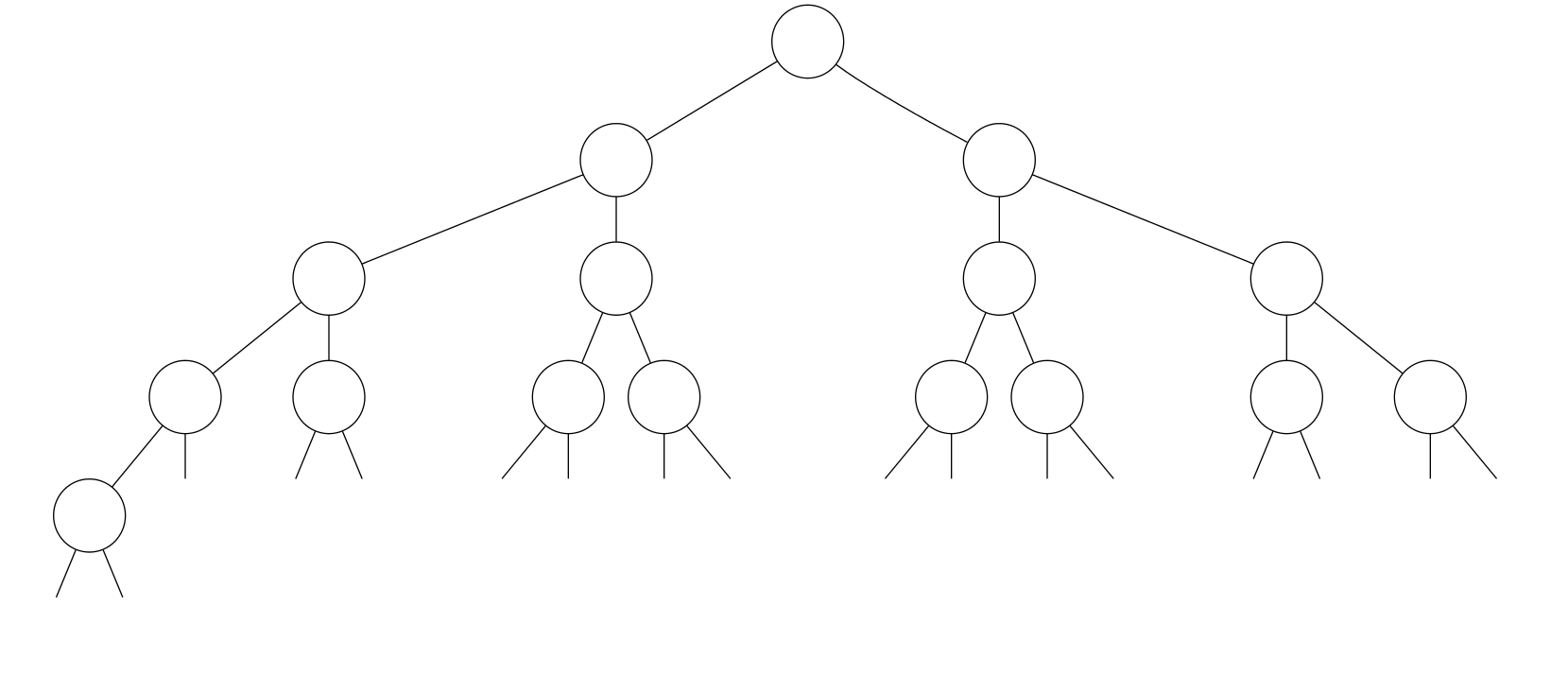

Complete Binary Tree with $N=16 \text{ nodes}$ ($\text{height} = 4$)

Property: Height of complete binary tree with $N$ nodes is $\lfloor \lg N \rfloor$.

Pf: Height increases only when $N$ is a power of $2$.

complete binary tree in nature

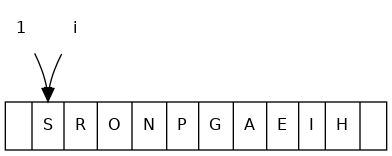

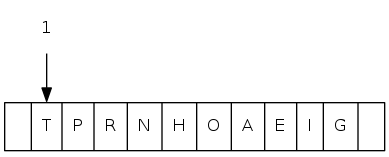

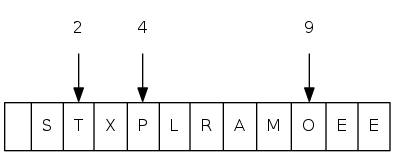

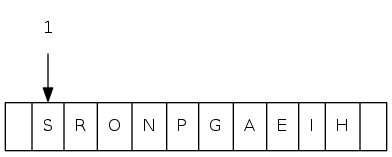

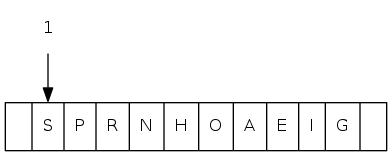

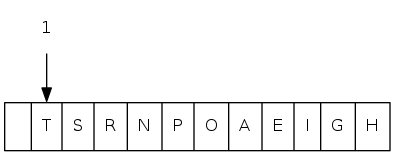

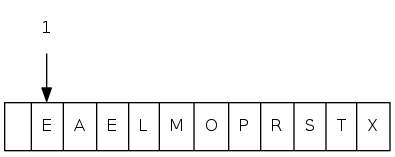

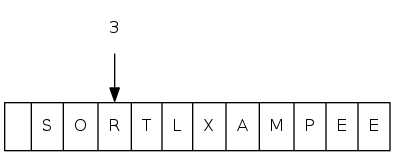

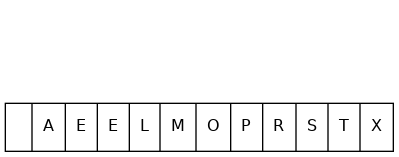

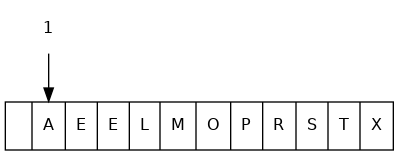

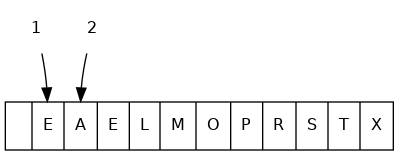

complete binary tree: array representation

Array representation

Indices start at 1
Take nodes in level order
Children of node $k$ at locations $2k$ and $2k+1$
No explicit links needed!

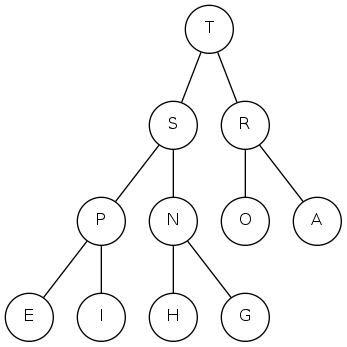

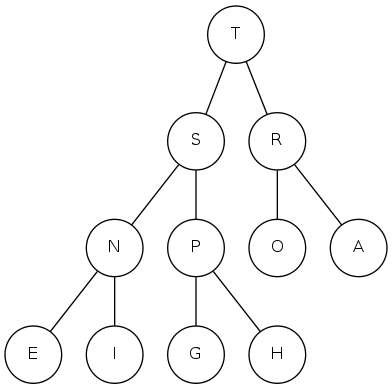

complete binary tree: array representation

          0  1  2  3  4  5  6  7  8  9 10 11
a[i] = [  .  T  S  R  P  N  O  A  E  I  H  G]
             T
                S  R
                      P  N  O  A
                                  E  I  H  G

Quiz: index of parent

[ live view, card view ]

What is the index of the parent of the item at index $k$ in a binary heap?

$k/2 - 1$
$k/2$
$k/2 + 1$
None of the above

          0  1  2  3  4  5  6  7  8  9 10 11
a[i] = [  .  T  S  R  P  N  O  A  E  I  H  G]

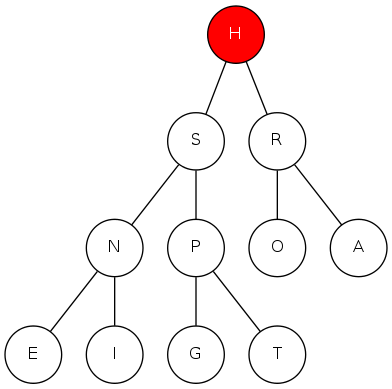

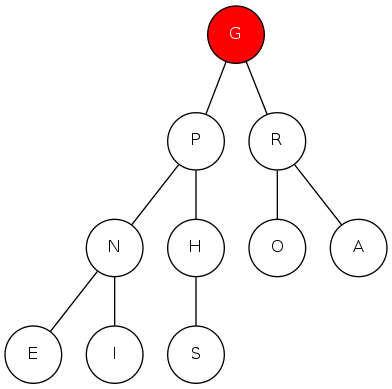

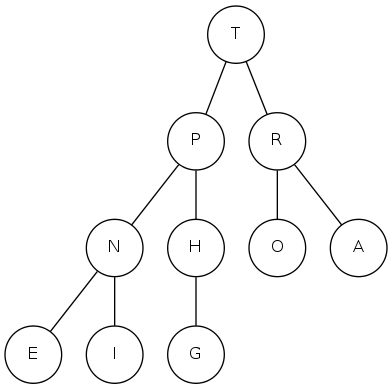

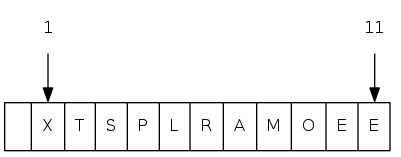

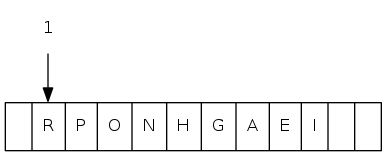

binary heap

Array representation

Indices start at 1
Take nodes in level order
Children of node $k$ at locations $2k$ and $2k+1$
No explicit links needed!

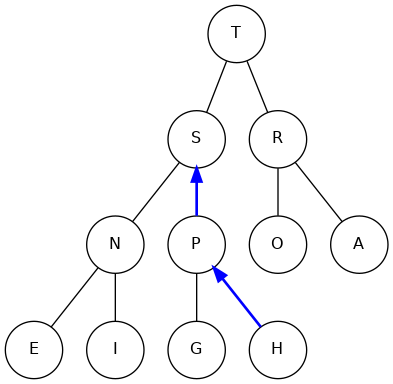

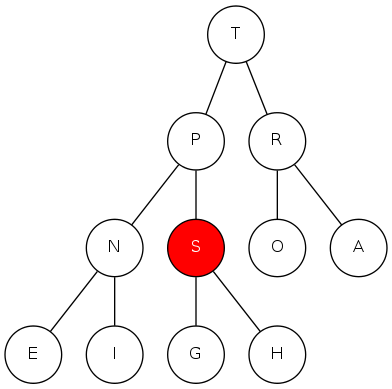

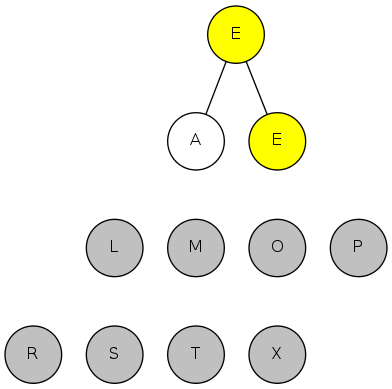

Max-Heap ordering

Keys in nodes
Parent's key no smaller than children's keys
"Just enough" ordering to support efficient priority queue operations

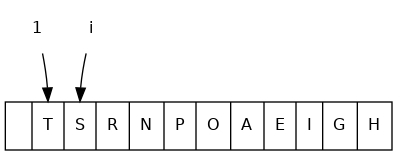

Binary heap: Array representation of heap-ordered complete binary tree

binary heap: properties

"Just enough" ordering to support efficient priority queue operations.

Largest key is a[1], which is the root of the binary tree
Can use array indices to move through the tree
- Children of node at k at locations 2*k and 2*k+1
- Parent of node at k is at k/2
insert() and delMax() violate heap order, but easy to fix up

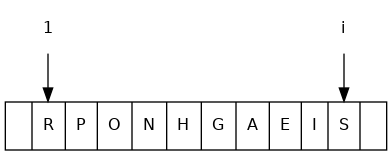

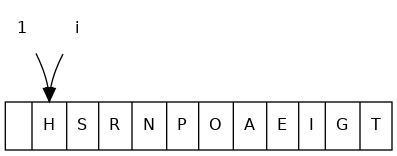

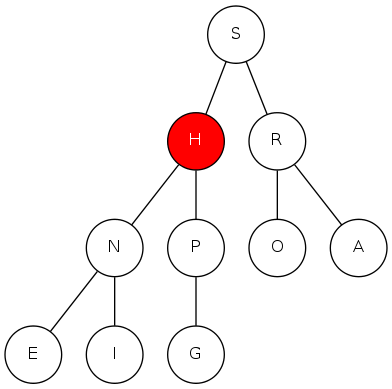

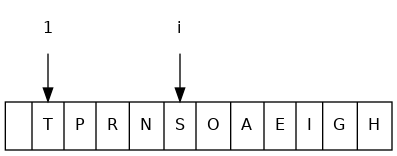

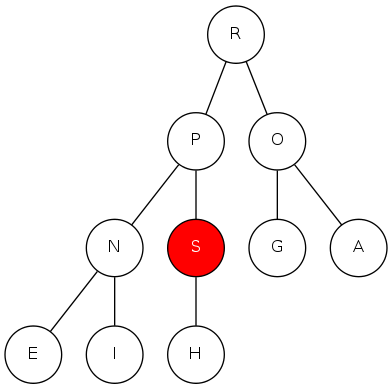

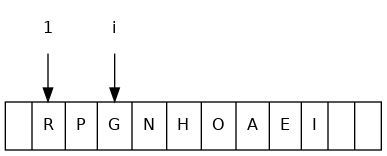

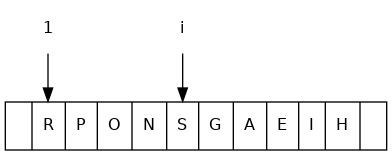

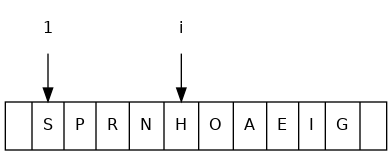

binary heap demo

Insert: Add node at end, them swim it up
Remove the maximum: Exchange root with node at end, then sink it down

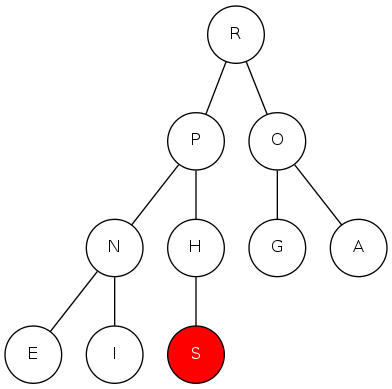

Insert S: add to end

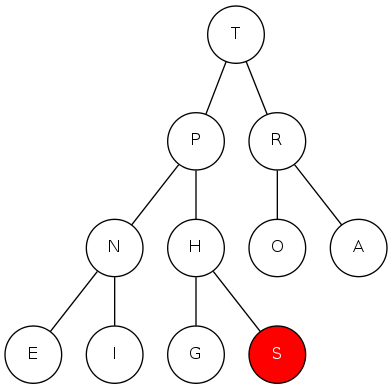

Insert S: swim up

Insert S: swim up

Insert S: swim up

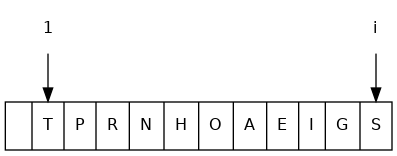

Insert S: finished

Remove-Max (T): swap first and last

Remove-Max (T): remove last element

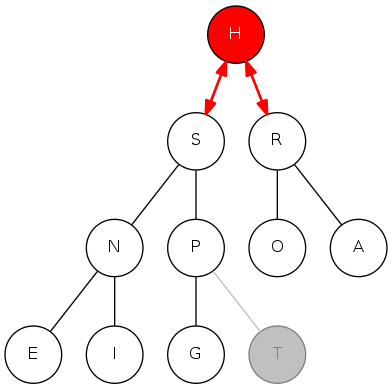

Remove-Max (T): sink down

Remove-Max (T): sink down

Remove-Max (T): sink down

Remove-Max (T): finished

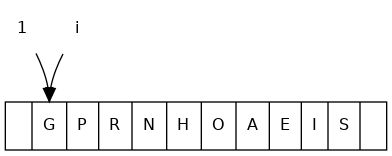

Remove-Max (S): swap first and last

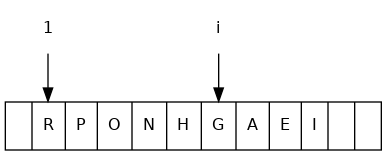

Remove-Max (S): remove last element

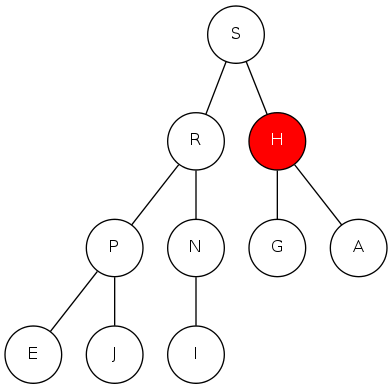

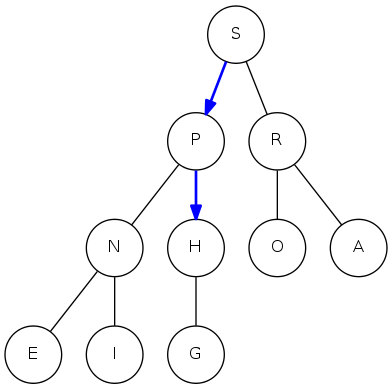

Remove-Max (S): sink down

Remove-Max (S): sink down

Remove-Max (S): sink down

Remove-Max (S): finished

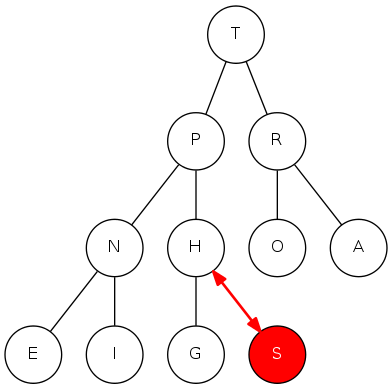

Insert S: add to end

Insert S: swim up

Insert S: swim up

Insert S: swim up

Insert S: swim up

Insert S: finished

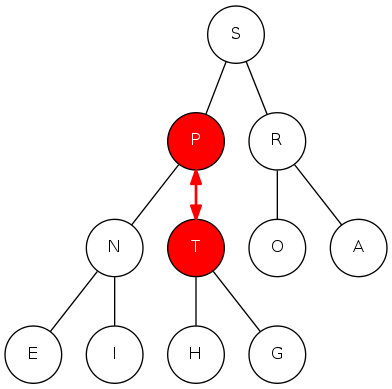

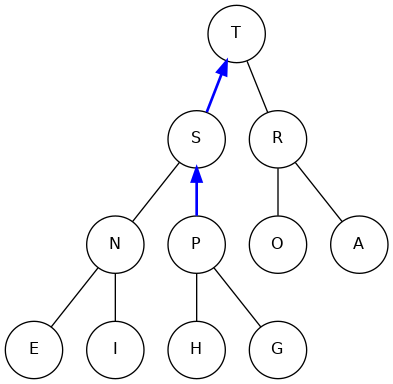

binary heap: promotion

Scenario: A key becomes larger than its parent's key

To eliminate the violation:

Exchange key in child with key in parent
Repeat until heap order restored

private void swim(int k) {
    while(k > 1 && less(k/2, k)) {
        exch(k, k/2);
        k = k/2;
    }
}

binary heap: promotion

binary heap: insertion

Insert: Add node at end, then swim it up

Cost: At most $1+\lg N$ compares

public void insert(Key k) {
    pq[++N] = k;
    swim(N);
}

binary heap: insertion

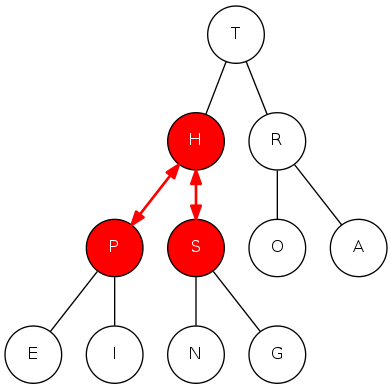

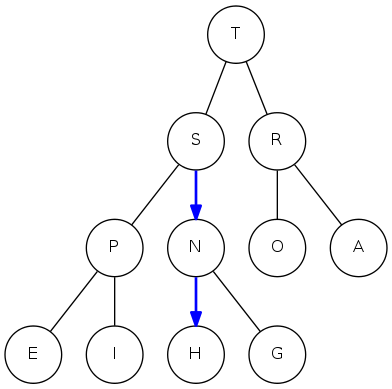

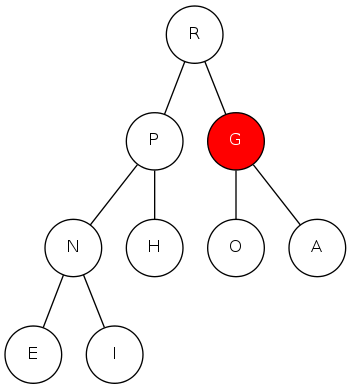

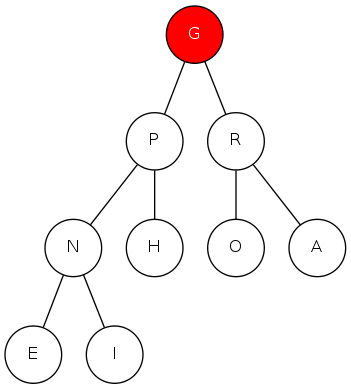

binary heap: demotion

Scenario: A key becomes smaller than one (or both) of its children's

To eliminate the violation:

Exchange key in parent with key in larger child (why not smaller child?)
Repeat until heap order is restored

private void sink(int k) {
    while(2*k <= N) {
        int j = 2*k;                    // first child
        if(j < N && less(j, j+1)) j++;  // second is larger
        if(!less(k, j)) break;          // parent > child?
        exch(k, j);
        k = j;
    }
}

binary heap: demotion

binary heap: delete the maximum

Delete max: Exchange root with node at end, then sink it down
Cost: At most $2 \lg N$ compares

public Key delMax() {
    Key max = pq[1];
    exch(1, N);
    pq[N--] = null;     // prevent loitering!
    sink(1);
    return max;
}

binary heap: delete the maximum

binary heap: java implementation

public class MaxPQ<Key extends Comparable<Key>> {
    private Key[] pq;
    private int N;

    public MaxPQ(int capacity) {
        pq = (Key[]) new Comparable[capacity+1];
    }

    public boolean isEmpty() { return N == 0; }

    public void insert(Key key) { /* see prev code */ }
    public Key  delMax()        { /* see prev code */ }

    private void swim(int k) { /* see prev code */ }
    private void sink(int k) { /* see prev code */ }

    private boolean less(int i, int j) {
        return pq[i].compareTo(pq[j]) < 0;
    }
    private void exch(int i, int j) {
        Key t = pq[i];
        pq[i] = pq[j];
        pq[j] = t;
    }
}

pq: implementations cost summary

implementation	`insert`	`delMax`	`max`
unordered array	$1$	$N$	$N$
ordered array	$N$	$1$	$1$
binary heap	$\log N$	$\log N$	$1$

order-of-growth of running time for priority queue with $N$ items

delete-random from a binary heap

Challenge: Delete a random key from a binary heap in logarithmic time

binary heap: practical improvements

Do "half-exchanges" in sink or swim

Reduces number of array accesses
Worth doing

binary heap: practical improvements

Multiway heaps

Complete $d$-way tree
Parent's key no smaller than any of its children's keys

Fact: Height of complete $d$-way tree on $N$ nodes is $\sim \log_d N$

quiz: insert in $d$-way heap

[ live view, card view ]

How many compares (in the worst case) to insert in a $d$-way heap?

$\sim \log_2 N$
$\sim \log_d N$
$\sim d \log_2 N$
$\sim d \log_d N$

quiz: delete in $d$-way heap

[ live view, card view ]

How many compares (in the worst case) to delete-max in a $d$-way heap?

$\sim \log_2 N$
$\sim \log_d N$
$\sim d \log_2 N$
$\sim d \log_d N$

pq: implementations cost summary

implementation	`insert`	`delMax`	`max`
unordered array	$1$	$N$	$N$
ordered array	$N$	$1$	$1$
binary heap	$\lg N$	$\lg N$	$1$
$d$-ary heap	$\log_d N$	$d \log_d N$	$1$
Fibonacci	$1$	$\log N^*$	$1$
Brodal queue	$1$	$\log N$	$1$
impossible	$1$	$1$	$1$

$^*$ amortized
sweet spot for $d$ is $d=4$
why is last line impossible?

order-of-growth of running time for priority queue with $N$ items

binary heap: considerations

Underflow and overflow

Underflow: throw exception if deleting from empty PQ
Overflow: add no-arg constructor and use resizing array (leads to $\lg N$ amortized time per op; how to make worst case?)

Minimum-oriented priority queue

Replace less() with greater()
Implement greater()

binary heap: considerations

Binary heap is not cache friendly (ex: page size = 8 nodes)

Cache-aligned $d$-heap
Funnel heap
B-heap
...

binary heap: considerations

Other operations

Remove an arbitrary item
Change the priority of an item
Can implement both efficiently with sink() and swim() (stay tuned for Prim/Dijkstra)

Immutability of keys

Assumption: client does not change keys while they're on the PQ
Best practice: use immutable keys

immutability: implementing in Java

Data type: set of values and operations on those values

Immutable data type: cannot change the data type value once created

public final class Vector {             // final = can't override
                                        // instance methods
    private final int N;                // instance vars private
    private final double[] data;        // and final

    public Vector(double[] data) {
        this.N = data.length;
        this.data = new double[N];
        for(int i = 0; i < N; i++)      // defensive copy of
            this.data[i] = data[i];     // mutable instance vars
    }

    /* ... */                           // instance methods don't
                                        // change instance vars
}

immutability: implementing in Java

Immutable: String, Integer, Double, Color, Vector, Transaction, Point2D

Mutable: StringBuilder, Stack, Counter, Java array

Advantages of immutability:

Simplifies debugging
Safer in presence of hostile code
Simplifies concurrent programming
Safe to use as key in priority queue or symbol table

Disadvantage: Must create new object for each data type value

immutability: implementing in Java

“
Classes should be immutable unless there's a very good reason to make them mutable. [...] If a class cannot be made immutable, you should still limit its mutability as much as possible.
—Joshua Bloch (Java architect)
”

[ I'm immutable t-shirt ]

Priority Queues

Heapsort

quiz: properties of sorting algorithm

[ live view, card view ]

What are the properties of this sorting algorithm?

public void sort(String[] a) {
    int N = a.length;
    MaxPQ<String> pq = new MaxPQ<String>();
    for(int i = 0;   i <  N; i++) pq.insert(a[i]);
    for(int i = N-1; i >= 0; i--) a[i] = pq.delMax();
}

$N \lg N$ compares in the worst case
in-place sorting
stable sorting
All of the above

heapsort

Basic plan for in-place sort

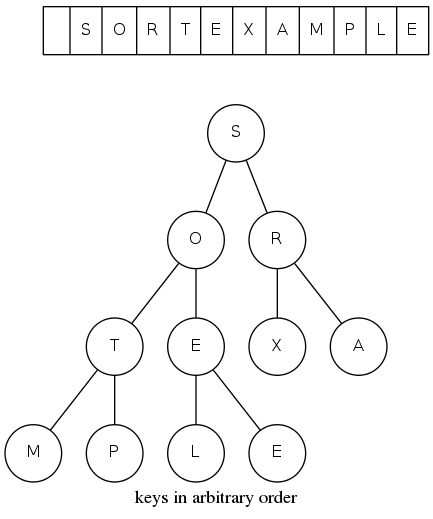

View input array as a complete binary tree
Heap construction: build a max-heap with all $N$ keys
Sortdown: repeatedly remove the maximum key

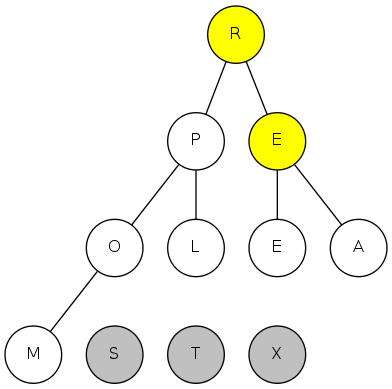

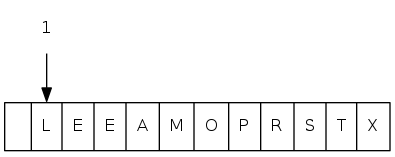

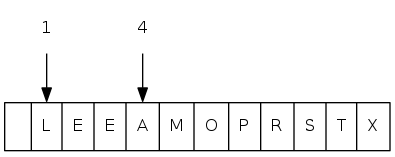

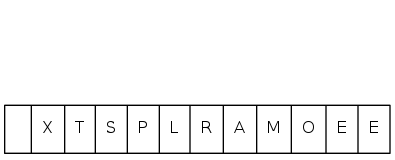

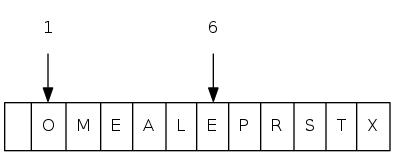

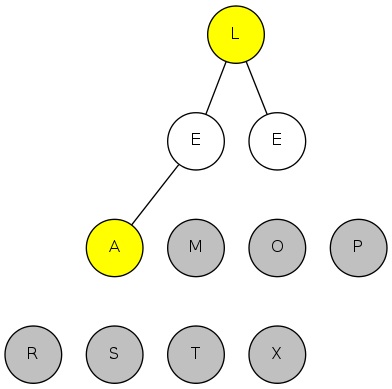

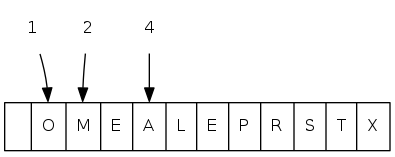

heapsort demo

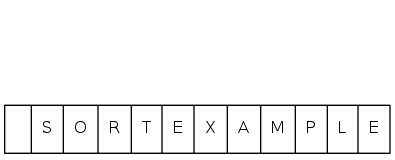

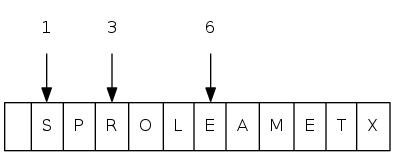

Heap construction: build max heap using bottom-up method (we assume array entries are indexed 1 to N)

Sortdown: Repeatedly delete the largest remaining item

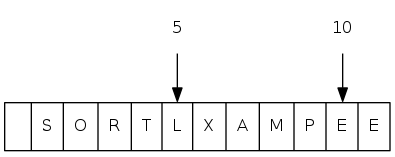

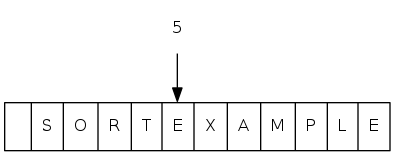

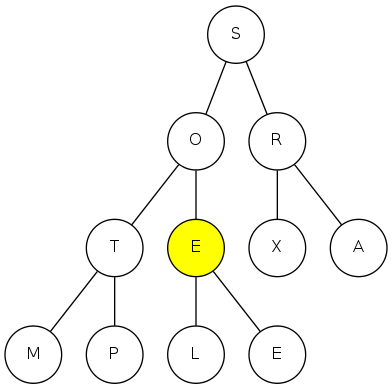

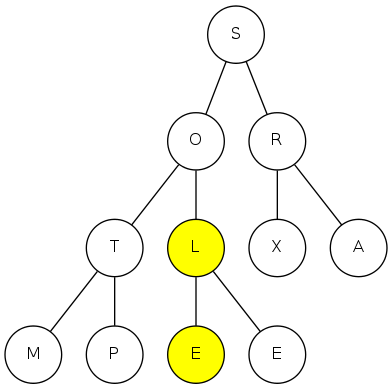

sink(5)

sink(5)

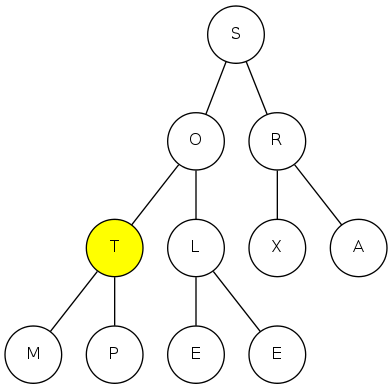

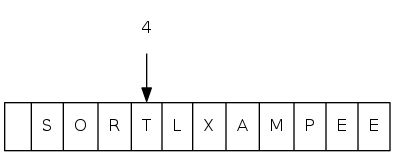

sink(4)

sink(4)

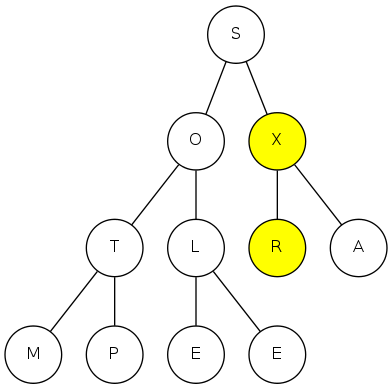

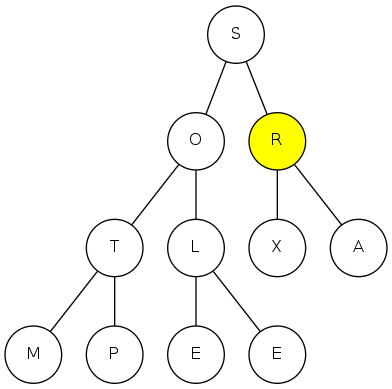

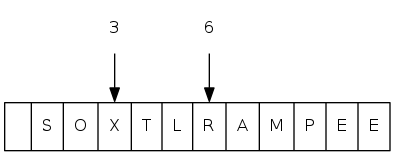

sink(3)

sink(3)

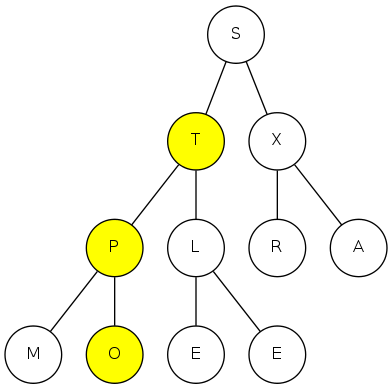

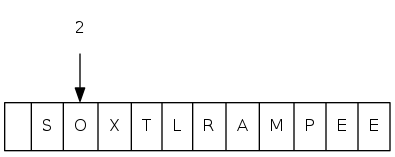

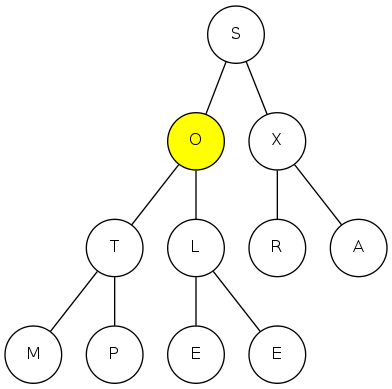

sink(2)

sink(2)

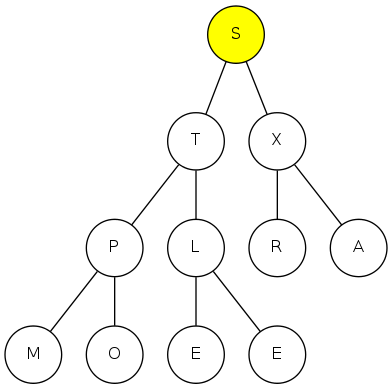

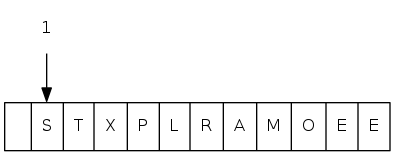

sink(1)

sink(1)

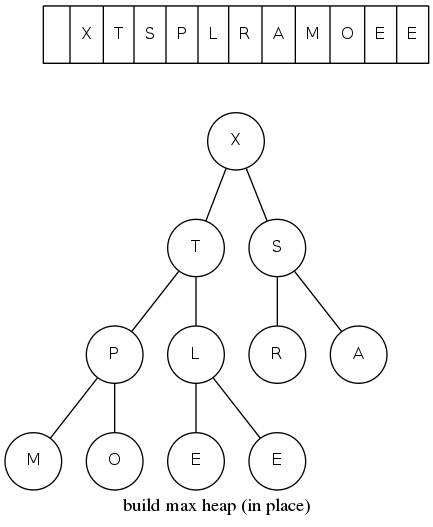

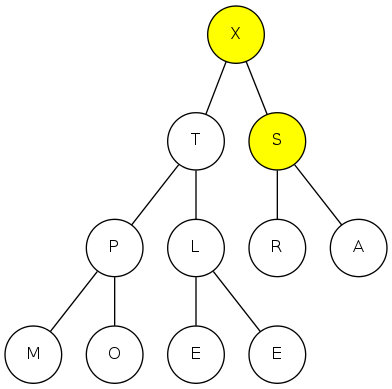

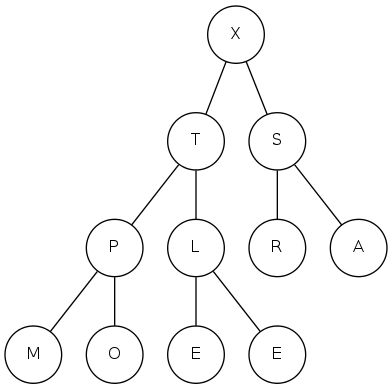

max-heap!

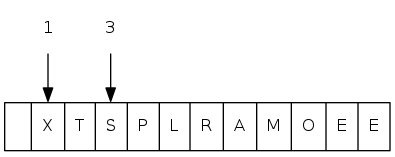

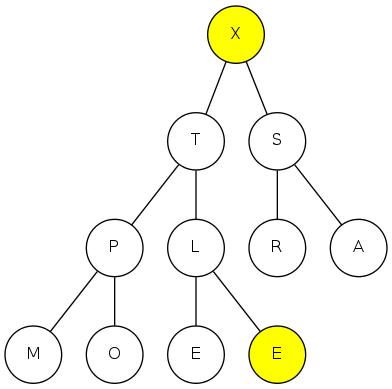

exch(1, 11), then sink(1)

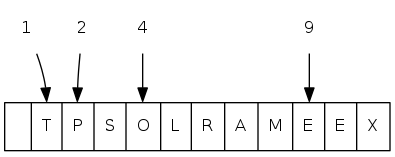

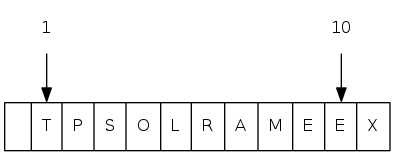

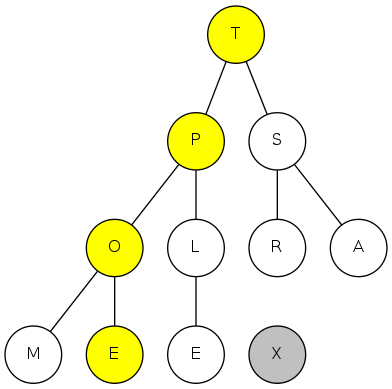

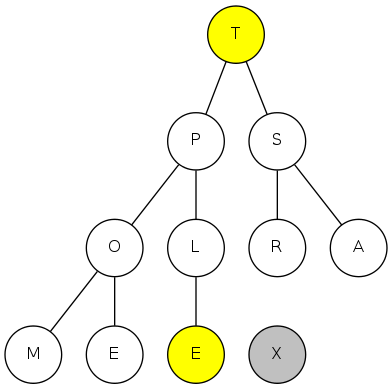

exch(1, 10), then sink(1)

exch(1, 10), then sink(1)

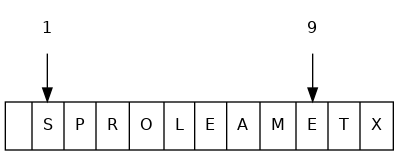

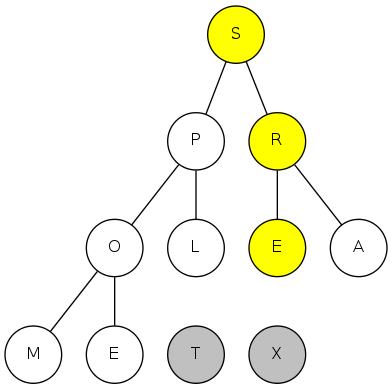

exch(1, 9), then sink(1)

exch(1, 9), then sink(1)

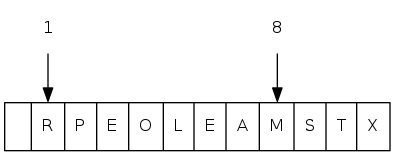

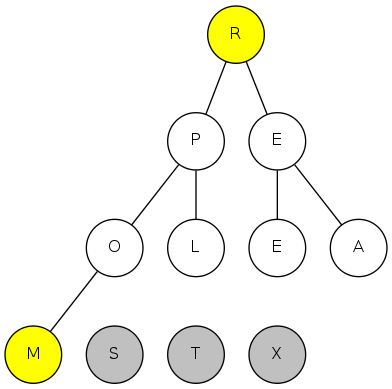

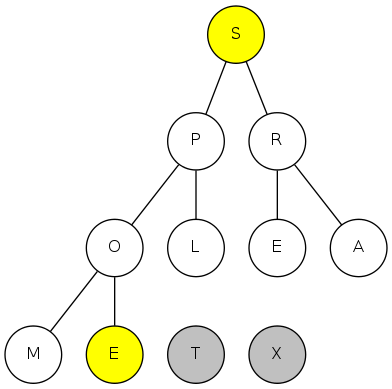

exch(1, 8), then sink(1)

exch(1, 8), then sink(1)

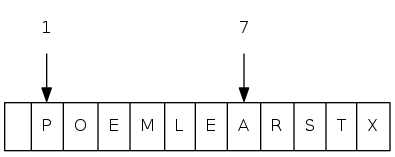

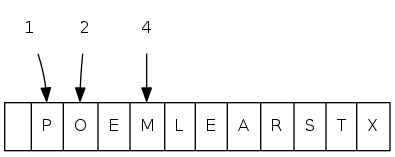

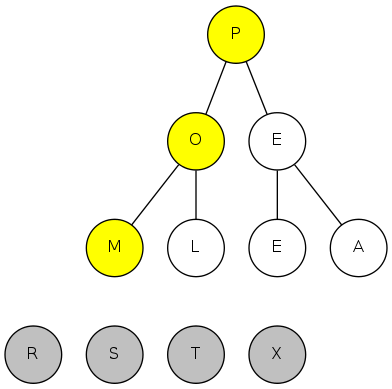

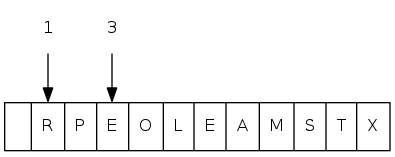

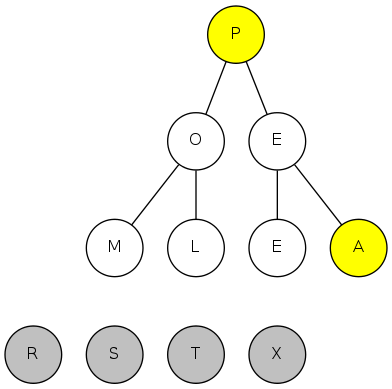

exch(1, 7), then sink(1)

exch(1, 7), then sink(1)

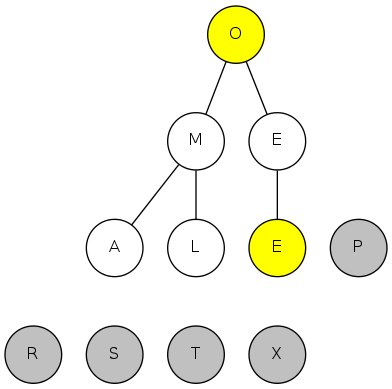

exch(1, 6), then sink(1)

exch(1, 6), then sink(1)

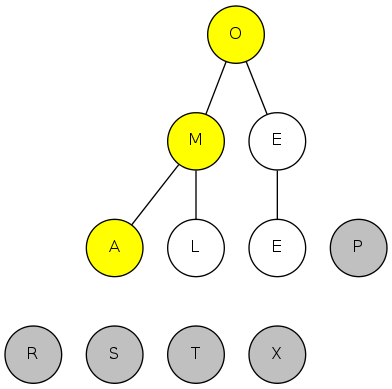

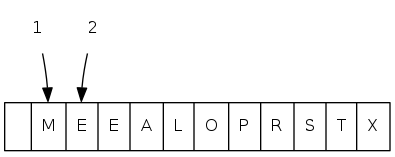

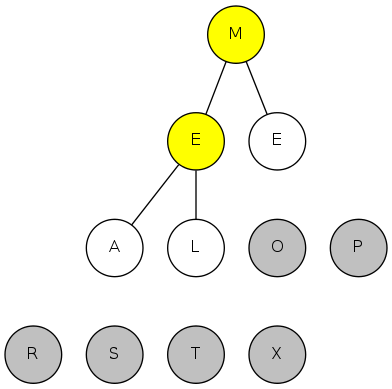

exch(1, 5), then sink(1)

exch(1, 5), then sink(1)

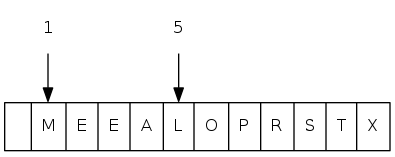

exch(1, 4), then sink(1)

exch(1, 4), then sink(1)

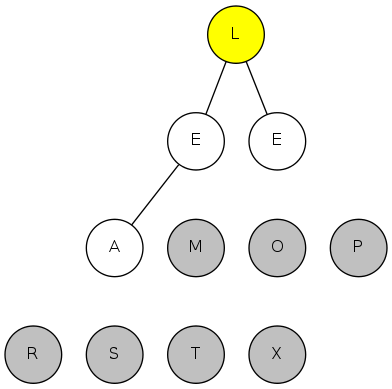

exch(1, 3), then sink(1)

exch(1, 3), then sink(1)

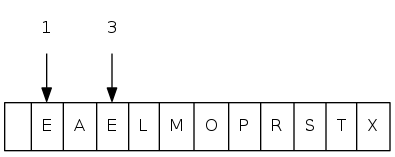

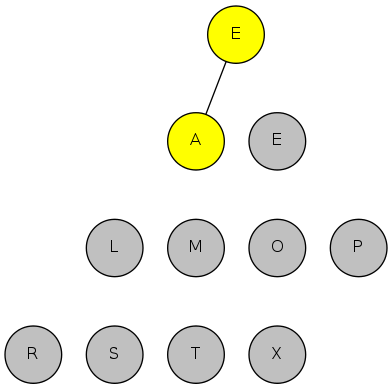

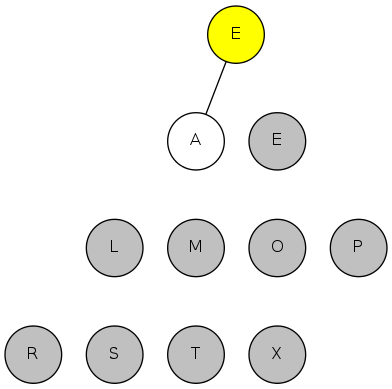

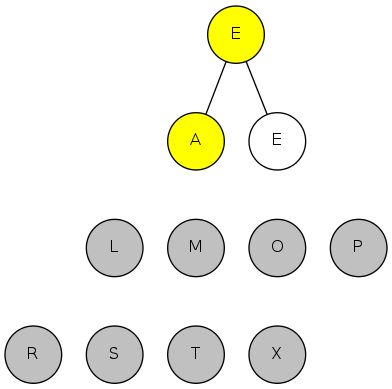

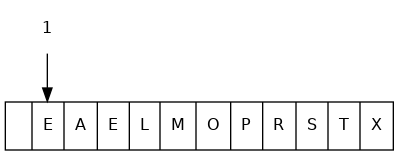

exch(1, 2), then sink(1)

exch(1, 2), then sink(1)

exch(1, 1), then sink(1)

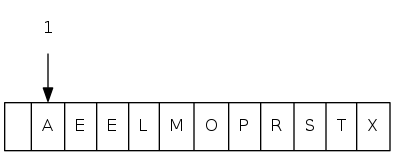

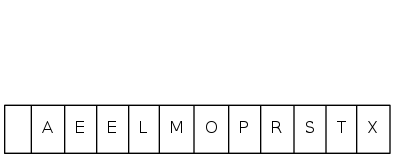

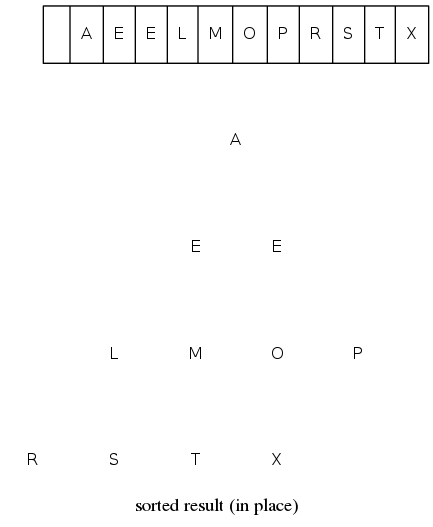

done sorting!

heapsort: heap construction

Heap construction (first pass):

Build heap using bottom-up method

for(int k = N/2; k >= 1; k--)
    sink(a, k, N);

Sortdown (second pass):

Remove the maximum, one at a time
Leave in array, instead of nulling out

while(N > 1) {
    exch(a, 1, N--);
    sink(a, 1, N);
}

heapsort: java implementation

public class Heap {
    public static void sort(Comparable[] a) {
        int N = a.length;
        for(int k = N/2; k >= 1; k--) sink(a, k, N);
        while(N > 1) {
            exch(a, 1, N);
            sink(a, 1, --N);
        }
    }

    private static void sink(Comparable[] a, int k, int N) {
        /* as before, but make static and pass arguments */
    }

    private static boolean less(Comparable[] a, int i, int j) {
        /* as before, but convert from 1-based indexing to 0-base */
    }

    private static void exch(Object[] a, int i, int j) {
        /* as before, but convert from 1-based indexing to 0-base */
    }
}

heapsort: trace

 N k   0  1  2  3  4  5  6  7  8  9 10 11
          S  O  R  T  E  X  A  M  P  L  E     initial values
11 5      .  .  .  .  L  .  .  .  .  E  E
11 4      .  .  .  T  .  .  .  M  P  .  .
11 3      .  .  X  .  .  R  A  .  .  .  .
11 2      .  T  .  P  L  .  .  M  O  .  .
11 1      X  T  S  .  .  R  A  .  .  .  .
          X  T  S  P  L  R  A  M  O  E  E     heap-ordered
10 1      T  P  S  O  L  .  .  M  E  .  X
 9 1      S  P  R  .  .  E  A  .  .  T  .
 8 1      R  P  E  .  .  E  A  .  S  .  .
 7 1      P  O  E  M  L  .  .  R  .  .  .
 6 1      O  M  E  A  L  .  P  .  .  .  .
 5 1      M  L  .  A  .  O  .  .  .  .  .
 4 1      L  E  E  A  M  .  .  .  .  .  .
 3 1      E  A  E  L  .  .  .  .  .  .  .
 2 1      E  A  E  .  .  .  .  .  .  .  .
 1 1      A  E  .  .  .  .  .  .  .  .  .
          A  E  E  L  M  O  P  R  S  T  X     sorted result

heapsort: animation

Key:

Black values are sorted
Gray values are unsorted
Red triangle marks algorithm position

[ Sorting Algorithm Animations: Heap Sort ]

heapsort: mathematical analysis

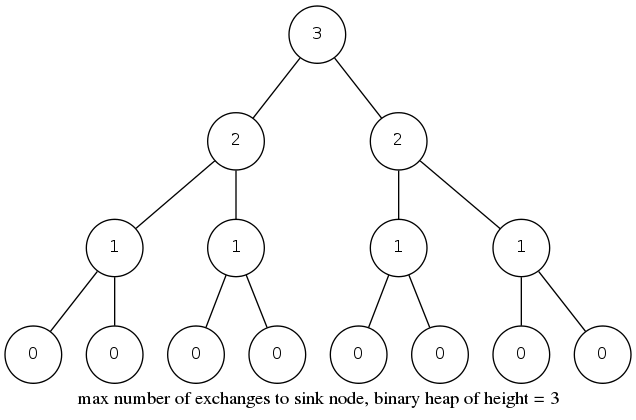

Proposition: Heap construction uses $\leq 2N$ compares and $\leq N$ exchanges

Pf sketch (assume $N = 2^{h+1}-1$):

\[\begin{array}{rcl} h + 2(h-1) + 4(h-2) + 8(h-3) + \ldots + 2^h(0) & \leq & 2^{h+1}-1 \\ & = & N \end{array}\]

note: left side of $\leq$ is a tricky sum (see Discrete Math)

heapsort: mathematical analysis

Proposition: Heapsort uses $\leq 2N \lg N$ compares and exchanges, though algorithm can be improved to $\sim 1 N \lg N$ (but no such variant is known to be practical, see Adaptive heap sort)

Significance: In-place sorting algorithm with $N \log N$ worst-case

Mergesort: no, linear extra space (in-place merge possible, not practical)
Quicksort: no, quadratic time in worst case ($N \log N$ worst-case quicksort possible, but not practical)
Heapsort: yes!

heapsort: mathematical analysis

Proposition: Heapsort uses $\leq 2N \lg N$ compares and exchanges, though algorithm can be improved to $\sim 1 N \lg N$ (but no such variant is known to be practical, see Adaptive heap sort)

Bottom line: Heapsort is optimal for both time and space, but...

Inner loop longer than quicksort's
Makes poor use of cache (can be improved using advanced caching tricks)
Not stable

Introsort

Goal: as fast as quicksort in practice; $N \log N$ worst case, in place

Introsort

Run quicksort
Cutoff to heapsort if stack depth exceeds $2 \lg N$
Cutoff to insertion sort for $N = 16$

In the wild: C++ STL, Microsoft .NET Framework, Go

sorting algorithms: summary

	inplace?	stable?	best	avg	worst	remarks
selection	✔		$\onehalf N^2$	$\onehalf N^2$	$\onehalf N^2$	$N$ exchanges
insertion	✔	✔	$N$	$\onequarter N^2$	$\onehalf N^2$	use for small $N$ or partially ordered
shell	✔		$N \log_3 N$	?	$c N^a$	tight code; subquadratic
merge		✔	$\onehalf N \lg N$	$N \lg N$	$N \lg N$	$N \log N$ guarantee; stable
timsort		✔	$N$	$N \lg N$	$N \lg N$	improves mergesort when preexisting order
quick	✔		$N \lg N$	$2 N \ln N$	$\onehalf N^2$	$N \log N$ probabilistic guarantee; fastest in practice
3-way qs	✔		$N$	$2 N \ln N$	$\onehalf N^2$	improves quicksort when duplicate keys
heap	✔		$3N$	$2 N \lg N$	$2 N \lg N$	$N \log N$ guarantee; in-place
?	✔	✔	$N$	$N \lg N$	$N \lg N$	holy grail of sorting

implementation	`insert`	`delMax`	`max`
unordered array	\(1\)	\(N\)	\(N\)
ordered array	\(N\)	\(1\)	\(1\)
goal for today	\(\log N\)	\(\log N\)	\(\log N\)

implementation	`insert`	`delMax`	`max`
unordered array	\(1\)	\(N\)	\(N\)
ordered array	\(N\)	\(1\)	\(1\)
binary heap	\(\log N\)	\(\log N\)	\(1\)

implementation	`insert`	`delMax`	`max`
unordered array	\(1\)	\(N\)	\(N\)
ordered array	\(N\)	\(1\)	\(1\)
binary heap	\(\lg N\)	\(\lg N\)	\(1\)
\(d\)-ary heap	\(\log_d N\)	\(d \log_d N\)	\(1\)
Fibonacci	\(1\)	\(\log N^*\)	\(1\)
Brodal queue	\(1\)	\(\log N\)	\(1\)
impossible	\(1\)	\(1\)	\(1\)

	inplace?	stable?	best	avg	worst	remarks
selection	✔		\(\onehalf N^2\)	\(\onehalf N^2\)	\(\onehalf N^2\)	\(N\) exchanges
insertion	✔	✔	\(N\)	\(\onequarter N^2\)	\(\onehalf N^2\)	use for small \(N\) or partially ordered
shell	✔		\(N \log_3 N\)	?	\(c N^a\)	tight code; subquadratic
merge		✔	\(\onehalf N \lg N\)	\(N \lg N\)	\(N \lg N\)	\(N \log N\) guarantee; stable
timsort		✔	\(N\)	\(N \lg N\)	\(N \lg N\)	improves mergesort when preexisting order
quick	✔		\(N \lg N\)	\(2 N \ln N\)	\(\onehalf N^2\)	\(N \log N\) probabilistic guarantee; fastest in practice
3-way qs	✔		\(N\)	\(2 N \ln N\)	\(\onehalf N^2\)	improves quicksort when duplicate keys
heap	✔		\(3N\)	\(2 N \lg N\)	\(2 N \lg N\)	\(N \log N\) guarantee; in-place
?	✔	✔	\(N\)	\(N \lg N\)	\(N \lg N\)	holy grail of sorting

Priority Queues

COS 265 - Data Structures & Algorithms

Priority Queues

API and Elementary Implementations

collections

collections

priority queue

priority queue API

priority queue: applications

priority queue: client example

priority queue: client example

pq: unordered and ordered array

pq: implementations cost summary

Priority Queues

Binary Heaps

complete binary tree

complete binary tree in nature

complete binary tree: array representation

complete binary tree: array representation

Quiz: index of parent

binary heap

binary heap: properties

binary heap demo

binary heap: promotion

binary heap: promotion

binary heap: insertion

binary heap: insertion

binary heap: demotion

binary heap: demotion

binary heap: delete the maximum

binary heap: delete the maximum

binary heap: java implementation

pq: implementations cost summary

delete-random from a binary heap

binary heap: practical improvements

binary heap: practical improvements

quiz: insert in \(d\)-way heap

quiz: delete in \(d\)-way heap

pq: implementations cost summary

binary heap: considerations

binary heap: considerations

binary heap: considerations

immutability: implementing in Java

immutability: implementing in Java

immutability: implementing in Java

Priority Queues

Heapsort

quiz: properties of sorting algorithm

heapsort

heapsort demo

heapsort: heap construction

heapsort: java implementation

heapsort: trace

heapsort: animation

heapsort: mathematical analysis

heapsort: mathematical analysis

heapsort: mathematical analysis

Introsort

sorting algorithms: summary
