Merge Sorts

COS 265 - Data Structures & Algorithms

two classic sorting algorithms

We finished studing some elementary sorting algorithms. Now, we focus on two classic sorting algorithms: merge sort and quicksort

Critical components in the world's computational infrastructure

• Full scientific understanding of their properties has enabled us to develop them into practical system sorts
• Quicksort honored as one of Top 10 Algorithms of 20th century in science and engineering

Merge sort: this lecture

Quicksort: next lecture

Merge Sorts

top-down merge sort

merge sort

Basic plan

• Divide array into two halves
• Recursively sort each half
• Merge two (sorted) halves

input:                         M E R G E S O R T E X A M P L E
                             /               / \               \
split into two halves:      M E R G E S O R |   | T E X A M P L E
merge sort left half:  ==>  E E G M O R R S |   | T E X A M P L E
merge sort right half:      E E G M O R R S |   | A E E L M P T X  <==
                             \               \ /               /
merge results:                 A E E E E G L M M O P R R S T X

merge demo

Goal: given two already sorted subarrays a[lo] to a[mid] and a[mid+1] to a[hi], replace with sorted subarray a[lo] to a[hi].

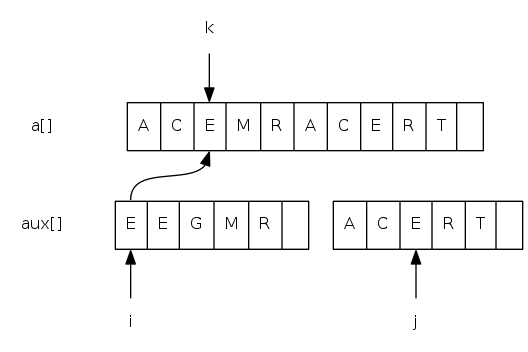

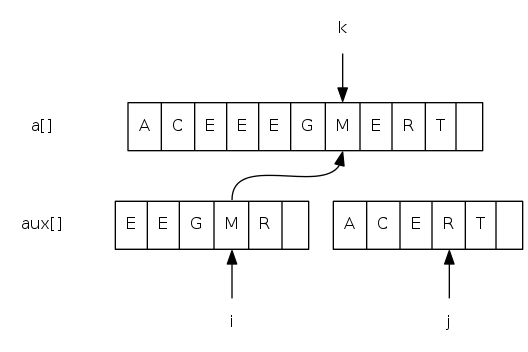

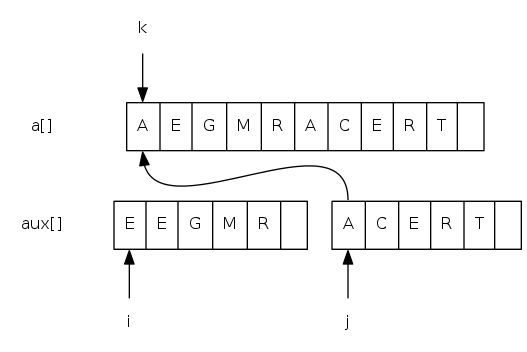

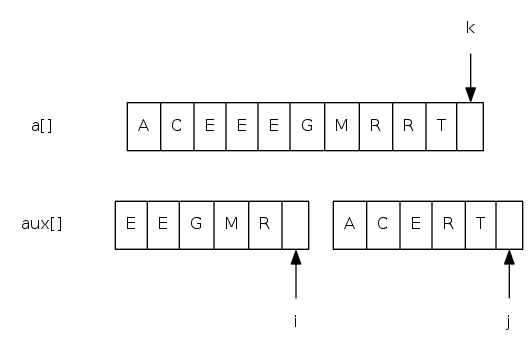

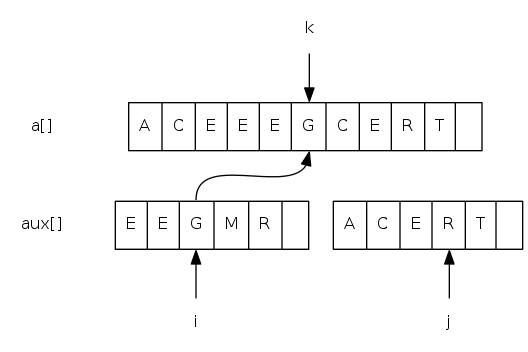

merge demo  #

‹ □ 0 play: 1fps play: 2fps play: 4fps play: 8fps ›

merging: java implementation

private static void merge(Comparable[] a, Comparable[] aux,
                          int lo, int mid, int hi) {
    // copy data to aux
    for(int k = lo; k <= hi; k++) aux[k] = a[k];

    // merge back into a
    int i = lo, j = mid + 1;
    for(int k = lo; k <= hi; k++) {
        if(i > mid)                   a[k] = aux[j++];  // left  side empty
        else if(j > hi)               a[k] = aux[i++];  // right side empty
        else if(less(aux[j], aux[i])) a[k] = aux[j++];  // right <  left
        else                          a[k] = aux[i++];  // left  <= right
    }
}

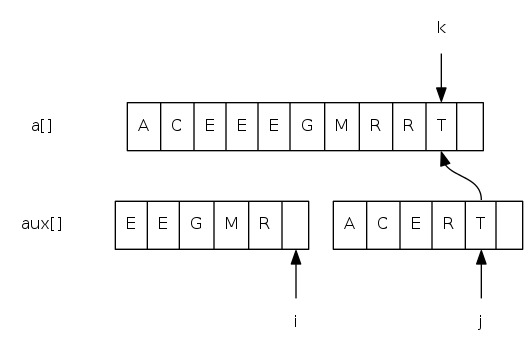

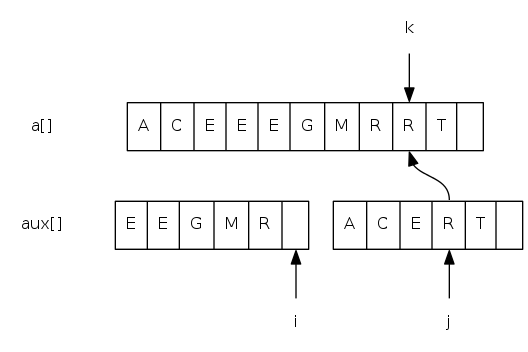

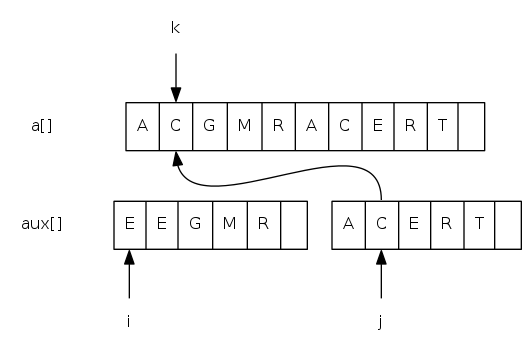

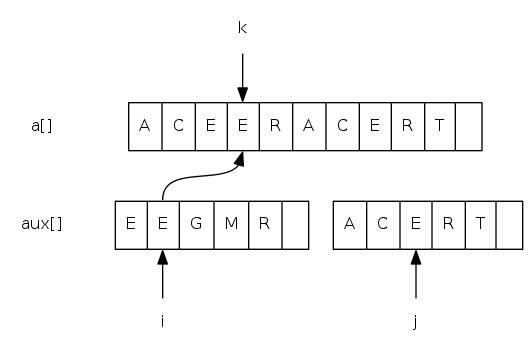

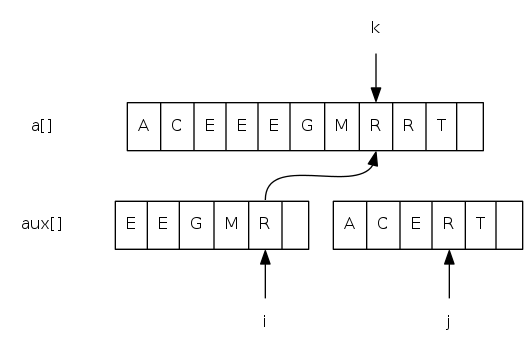

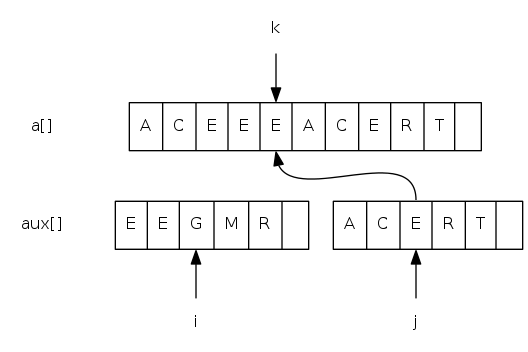

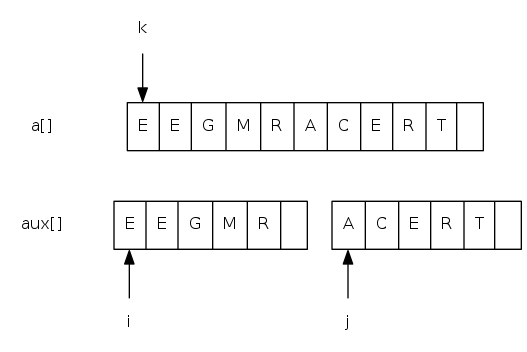

//        lo           i   mid         j      hi
//         |           |   |           |       |
aux[] = {  A   G   L   O   R | H   I   M   S   T }
a[]   = {  A   G   H   I   L   M   ?   ?   ?   ? }
//                             |
//                             k

merging: java implementation

public class Merge {
    private static void merge(/*...*/) { /* as before */ }

    public static void sort(Comparable[] a) {
        Comparable[] aux = new Comparable[a.length];
        sort(a, aux, 0, a.length - 1);
    }

    private static void sort(Comparable[] a, Comparable[] aux,
                             int lo, int hi) {
        if(hi <= lo) return;                    // 0 or 1 items
        int mid = lo + (hi - lo) / 2;           // find mid
        sort(a, aux, lo, mid);                  // sort left
        sort(a, aux, mid+1, hi);                // sort right
        merge(a, aux, lo, mid, hi);             // merge left and right
    }
}

Merge sort: trace

                                    0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5
                    lo      hi      M E R G E S O R T E X A M P L E
      merge(a, aux,  0,  0,  1)     E M . . . . . . . . . . . . . .
      merge(a, aux,  2,  2,  3)     . . G R . . . . . . . . . . . .
    merge(a, aux,  0,  1,  3)       E G M R . . . . . . . . . . . .
      merge(a, aux,  4,  4,  5)     . . . . E S . . . . . . . . . .
      merge(a, aux,  6,  6,  7)     . . . . . . O R . . . . . . . .
    merge(a, aux,  4,  5,  7)       . . . . E O R S . . . . . . . .
  merge(a, aux,  0,  3,  7)         E E G M O R R S . . . . . . . .
      merge(a, aux,  8,  8,  9)     . . . . . . . . E T . . . . . .
      merge(a, aux, 10, 10, 11)     . . . . . . . . . . A X . . . .
    merge(a, aux,  8,  9, 11)       . . . . . . . . A E T X . . . .
      merge(a, aux, 12, 12, 13)     . . . . . . . . . . . . M P . .
      merge(a, aux, 14, 14, 15)     . . . . . . . . . . . . . . E L
    merge(a, aux, 12, 13, 15)       . . . . . . . . . . . . E M L P
  merge(a, aux,  8, 11, 15)         . . . . . . . . A E E L M P T X
merge(a, aux,  0,  7, 15)           A E E E E G L M M O P R R S T X

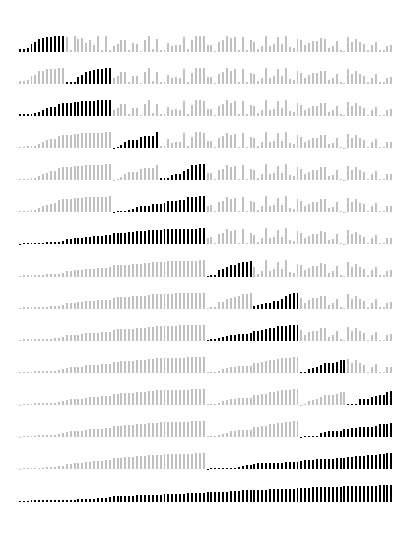

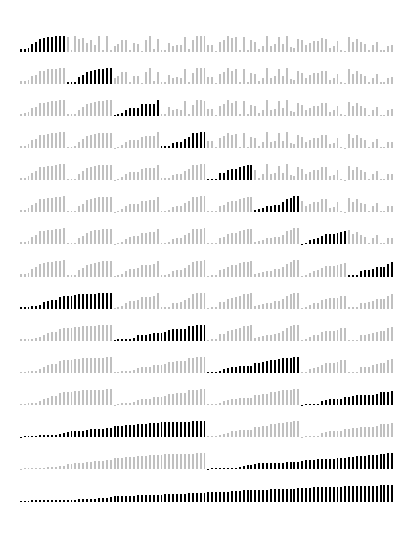

merge sort: animation

Key:

• Black values are sorted
• Gray values are unsorted
• Red triangle marks algorithm position
• Dark gray values denote the current interval

merge sort: empirical analysis

Running time estimates of insertion vs. merge sort:

• Home PC executes \(10^8\) compares/second
• Supercomputer executes \(10^{12}\) compares/second

Bottom line: Good algorithms are better than supercomputers.

merge sort: number of compares

Proposition: Merge sort uses \(\leq N \lg N\) compares to sort an array of length \(N\).

Pf sketch: The number of compares \(C(N)\) to merge sort an array of length \(N\) satisfies the recurrence \[ C(N) \leq \underbrace{C(\lceil N/2 \rceil)}_{\text{sort left half}} + \underbrace{C(\lfloor N/2 \rfloor)}_{\text{sort right half}} + \underbrace{N}_{\text{merge}} \text{ for } N > 1, \text{ with } C(1) = 0 \]

We solve the recurrence when \(N\) is a power of 2 (result holds for all \(N\), analysis cleaner in this case):

\[D(N) = 2 D(N/2) + N, \text{ for } N > 1, \text{ with } D(1) = 0\]

divide-and-conquer recurrence

Proposition: If \(D(N)\) satisfies \(D(N) = 2 D(N/2) + N\) for \(N > 1\), with \(D(1) = 0\), then \(D(N) = N \lg N\)

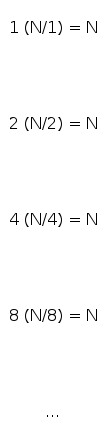

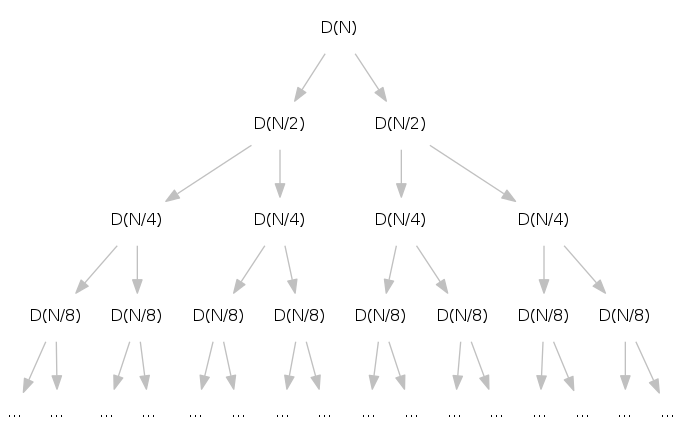

Pf by picture (assuming \(N\) is a power of 2):

Height of binary tree: \(\lg N\)

Recurrence: \(D(N) = N \lg N\)

divide-and-conquer recurrence

Proposition: If \(D(N)\) satisfies \(D(N) = 2 D(N/2) + N\) for \(N > 1\), with \(D(1) = 0\), then \(D(N) = N \lg N\)

Pf by induction (assuming \(N\) is a power of 2):

• Base case: \(N = 1\)
• Inductive hypothesis: \(D(N) = N \lg N\)
• Goal: show that \(D(2N) = (2N) \lg (2N)\)

\[ \begin{array}{rcll} D(2N) & = & 2 D(N) + 2N & \text{given} \\ & = & 2N \lg N + 2N & \text{inductive hypothesis} \\ & = & 2N (\lg (2N) - 1) + 2N & \text{algebra} \\ & = & 2N \lg (2N) & \text{QED} \\ \end{array} \]

merge sort: number of array accesses

Proposition: Merge sort uses \(\leq 6 N \lg N\) array accesses to sort an array of length \(N\)

Pf sketch: The number of array accesses \(A(N)\) satisfies the recurrence: \[A(N) \leq A(\lceil N / 2 \rceil) + A(\lfloor N / 2 \rfloor) + 6N \text{ for } N > 1, \text{ with } A(1) = 0\]

Key point: any algorithm with the following structure takes \(N \log N\) time

public static void linearithmic(int N) {
    if(N == 0) return;
    linearithmic(N/2);      // solve two problems
    linearithmic(N/2);      //   of half the size
    linear(N);              // do a linear amount of work
}

Notable examples: FFT, hidden-line removal, Kendall-tau distance, ...

merge sort analysis: memory

Proposition: Merge sort uses extra space proportional to \(N\)
Pf: The array aux[] needs to be of length \(N\) for the last merge

         two     sorted    subarrays
A C D G H I M N U V   B E F J O P Q R S T

A B C D E F G H I J   M N O P Q R S T U V
              merged result

Def: A sorting algorithm is in-place if it uses \(\leq c \log N\) extra memory
Ex: Insertion sort, selection sort, shellsort

Challenge 1 (not hard): Use aux[] array of length \(\sim \frac{1}{2} N\)
instead of \(N\)

Challenge 2 (very hard): In-place merge [Kronrod 1969]

merge sort: practical improvements

Use insertion sort for small subarrays

• Merge sort has too much overhead for tiny subarrays
• Cutoff to insertion sort for \(\approx\) 10 items

private static void sort(Comparable[] a, Comparable[] aux,
                         int lo, int hi) {
    if(hi <= lo + CUTOFF - 1) {     // cut off to insertion sort
        Insertion.sort(a, lo, hi);
        return;
    }
    int mid = lo + (hi - lo) / 2;
    sort(a, aux, lo, mid);
    sort(a, aux, mid+1, hi);
    merge(a, aux, lo, mid, hi);
}

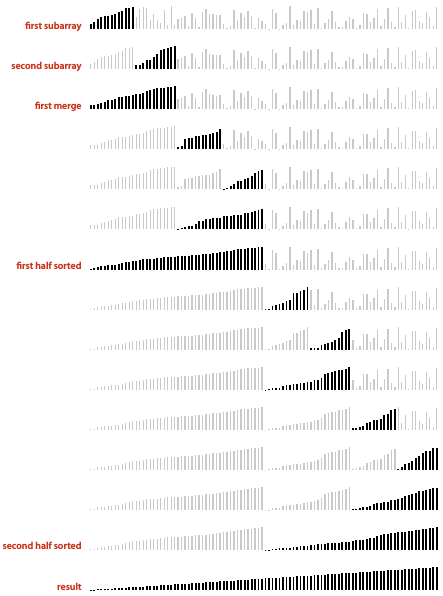

merge sort with cutoff in insertion sort

merge sort: practical improvements

Stop (no need to merge) if already sorted

• Is largest item in first half \(\leq\) smallest item in second half?
• Helps for partially-ordered arrays

A B C D E F G H I J    M N O P Q R S T U V
                  ^ <= ^

private static void sort(Comparable[] a, Comparable[] aux,
                         int lo, int hi) {
    if(hi <= lo) return;
    int mid = lo + (hi-lo) / 2;
    sort(a, aux, lo, mid);
    sort(a, aux, mid+1, hi);
    if(!less(a[mid+1], a[mid])) return;  // two halves already sorted!
    merge(a, aux, lo, mid, hi);
}

merge sort: practical improvements

Eliminate the copy to the auxiliary array: save time (but not space) by switching the role of the input and auxiliary array in each recursive call.

private static void merge(Comparable[] a, Comparable[] aux,
                          int lo, int mid, int hi) {
    // don't need to copy from a[] to aux[]  if we merge from a[] to aux[]
    int i = lo, j = mid + 1;
    for(int k = lo; k <= hi; k++) {
        if(i > mid)                   aux[k] = a[j++];
        else if(j > hi)               aux[k] = a[i++];
        else if(less(aux[j], aux[i])) aux[k] = a[j++];
        else                          aux[k] = a[i++];
    }
}

private static void sort(Comparable[] a, Comparable[] aux,
                         int lo, int hi) {
    // note: assuming aux[] is init to a[] once, before recursive calls!
    if(hi <= lo) return;
    int mid = lo + (hi-lo) / 2;
    sort(aux, a, lo, mid);          // switch roles of
    sort(aux, a, mid+1, hi);        //   aux[] and a[]
    merge(a, aux, lo, mid, hi);
}

java 6 system sort

Basic algorithm for sorting objects = merge sort

• Cutoff to insertion sort = 7
• Stop-if-already-sorted test
• Eliminate-the-copy-to-the-auxiliary-array trick

Array.sort(a)

Java 6 Javadoc

merge sorts

bottom-up merge sort

bottom-up merge sort

Basic plan

• Pass through array, merging subarrays of size 1
• Repeat for subarrays of size 2, 4, 8, ...

                                    0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5
                    lo      hi      M E R G E S O R T E X A M P L E
      sz=1
      merge(a, aux,  0,  0,  1)     E M . . . . . . . . . . . . . .
      merge(a, aux,  2,  2,  3)     . . G R . . . . . . . . . . . .
      merge(a, aux,  4,  4,  5)     . . . . E S . . . . . . . . . .
      merge(a, aux,  6,  6,  7)     . . . . . . O R . . . . . . . .
      merge(a, aux,  8,  8,  9)     . . . . . . . . E T . . . . . .
      merge(a, aux, 10, 10, 11)     . . . . . . . . . . A X . . . .
      merge(a, aux, 12, 12, 13)     . . . . . . . . . . . . M P . .
      merge(a, aux, 14, 14, 15)     . . . . . . . . . . . . . . E L

    sz = 2
    merge(a, aux,  0,  1,  3)       E G M R . . . . . . . . . . . .
    merge(a, aux,  4,  5,  7)       . . . . E O R S . . . . . . . .
    merge(a, aux,  8,  9, 11)       . . . . . . . . A E T X . . . .
    merge(a, aux, 12, 13, 15)       . . . . . . . . . . . . E M L P

  sz = 4
  merge(a, aux,  0,  3,  7)         E E G M O R R S . . . . . . . .
  merge(a, aux,  8, 11, 15)         . . . . . . . . A E E L M P T X

sz = 8
merge(a, aux,  0,  7, 15)           A E E E E G L M M O P R R S T X

bottom-up merge sort: java implementation

public class MergeBU {
    private static void merge(/*...*/) { /* as before */ }

    public static void sort(Comparable[] a) {
        int N = a.length;
        Comparable[] aux = new Comparable[N];
        for(int sz = 1; sz < N; sz = sz+sz)
            for(int lo = 0; lo < N-sz; lo += sz+sz)
                merge(a, aux, lo, lo+sz-1, Math.min(lo+sz+sz-1, N-1));
    }
}

Bottom line: simple and non-recursive version of merge sort (but about 10% slower than recursive, top-down merge sort on typical systems)

merge sort: visualizations

natural merge sort

Idea: Exploit pre-existing order by identifying naturally-occurring runs

input:           1  5 10 16  3  4 23  9 13  2  7  8 12 14

                 ============== first pass ==============
first run:       1  5 10 16  .  .  .  .  .  .  .  .  .  .
second run:      .  .  .  .  3  4 23  .  .  .  .  .  .  .
merge two runs:  1  3  4  5 10 16 23  .  .  .  .  .  .  .
third run:       .  .  .  .  .  .  .  9 13  .  .  .  .  .
fourth run:      .  .  .  .  .  .  .  .  .  2  7  8 12 14
merge two runs:  .  .  .  .  .  .  .  2  7  8  9 12 13 14

                 ============== second pass =============
first run:       1  3  4  5 10 16 23  .  .  .  .  .  .  .
second run:      .  .  .  .  .  .  .  2  7  8  9 12 13 14
merge two runs:  1  2  3  4  5  7  8  9 10 12 13 14 16 23

Tradeoff: Fewer passes vs. extra compares/pass to identify runs

timsort

• Natural merge sort
• Use binary insertion sort to make initial runs (if needed)
• A few more clever optimizations

Intro
-----
This describes an adaptive, stable, natural mergesort, modestly
called timsort (hey, I earned it <wink>). It has supernatural
performance on many kinds of partially ordered arrays (less than
lg(N!) comparisons needed, and as few as N-1), yet as fast as
Python's previous highly tuned samplesort hybrid on random arrays.

In a nutshell, the main routine marches over the array once, left to
right, alternately identifying the next run, then merging it into
the previous runs "intelligently". Everything else is complication
for speed, and some hard-won measure of memory efficiency.
...

Consequence: Linear time on many arrays with pre-existing order

Now widely used: Python, Java 7, GNU Octave, Android, ...

tim peters, author of the zen of python

merge sorts

sorting complexity

computational complexity

Framework to study efficiency of algorithms for solving a particular problem \(X\).

complexity of sorting

Framework to study efficiency of algorithms for solving a particular problem \(X\).

Let's look at comparison-based sorting.

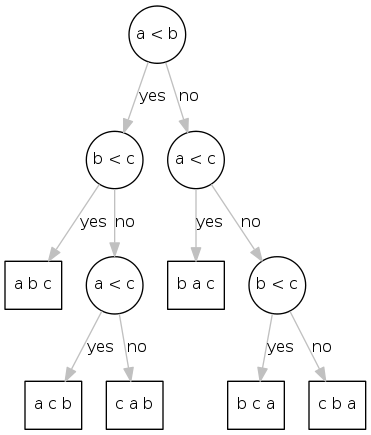

decision tree (for 3 distinct keys a, b, c)

code between compares (e.g., sequence of exchanges) height of tree = worst-case number of compares each leaf corresponds to one (and only one) ordering; (at least) one leaf for each possible ordering

compare-based lower bound for sorting

Proposition: Any compare-based sorting algorithm must use at least \(\lg(N!) \sim N \lg N\) compares in the worst-case

Pf:

• Assume array consists of \(N\) distinct values \(a_1\) through \(a_N\)
• Worst case dictated by height \(h\) of decision tree
• Binary tree of height \(h\) has at most \(2^h\) leaves
• \(N!\) different orderings → at least \(N!\) leaves

\[\begin{array}{rc} & 2^h \geq \text{num of leaves} \geq N! \\ \Rightarrow & 2^h \geq N! \\ \Rightarrow & h \geq \lg(N!) \\ \Rightarrow & h \text{ is at least} \sim N \lg N \end{array}\]

complexity of sorting

Framework to study efficiency of algorithms for solving a particular problem \(X\).

Let's look at comparison-based sorting.

First goal of algorithm design: optimal algorithms

complexity results in context

Merge sort...

• is optimal with respect to number of COMPARES
• is not optimal with respect to SPACE usage

Lessons: Use theory as a guide

Ex: Design sorting algorithm that guarantees \(\frac{1}{2} N \lg N\) compares

Ex: Design sorting algorithm that is both time- and space-optimal

complexity results in context

“

The best theory is inspired by practice. The best practice is inspired by theory.
–Donald Knuth

”

complexity results in context

Lower bound may not hold if the algorithm can take advantage of:

• The initial order of the input

  • Ex: insertion sort requires only a linear number of compares on partially-sorted arrays

• The distribution of key values

  • Ex: 3-way quicksort requires only a linear number of compares on arrays with a constant number of distinct keys (stay tuned)

• The representation of the keys

  • Ex: radix sort requires no key compares—it accesses the data via character/digit compares

Merge sorts

comparators

comparators

What if we sometimes wanted to sort the data by one key, but at other times sort by a completely different key?

Implementing the Comparable interface allows you to define only one way of sorting the data.

The Comparator interface allows you to define as many ways to sort as you need.

sort countries

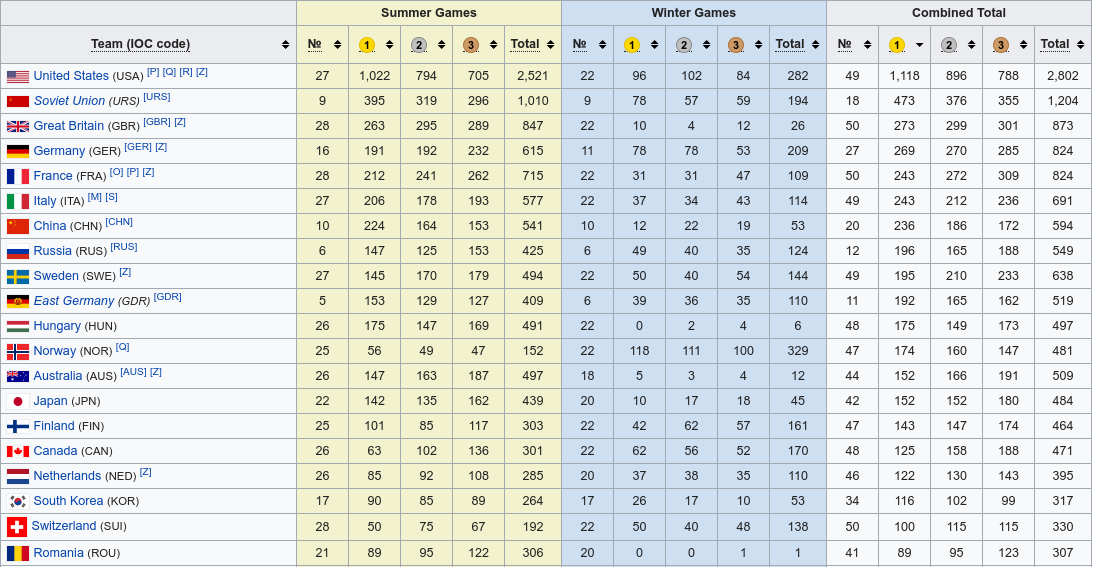

Countries sorted by gold medals

sort countries

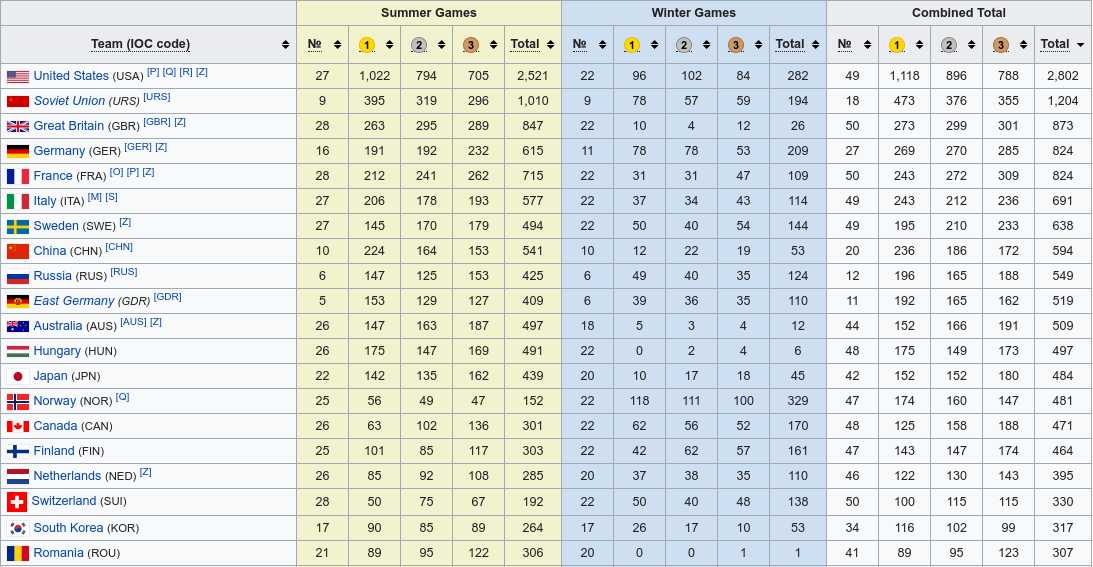

Countries sorted by all medals

sort music library

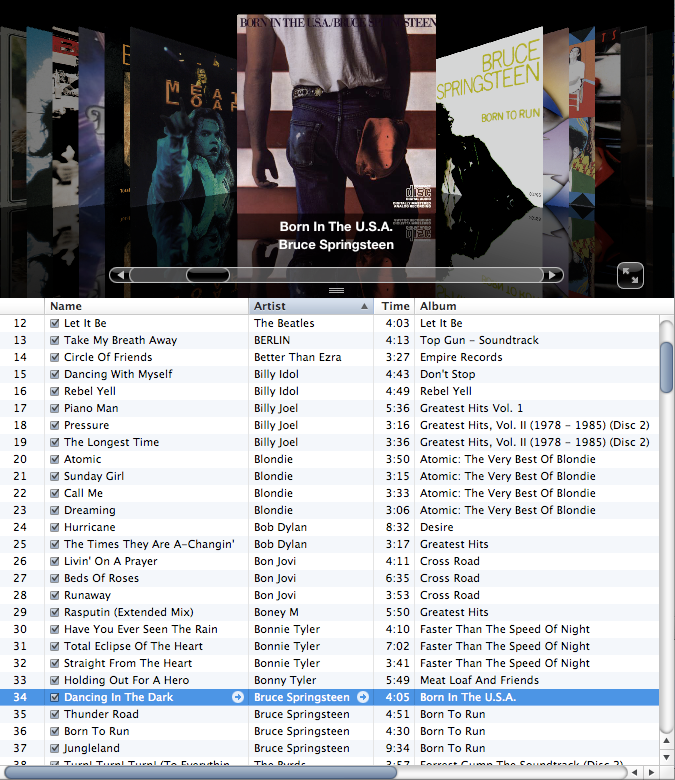

Music library sorted by artist

sort music library

Music library sorted by song name

Comparable interface: review

Comparable interface: sort using a type's natural order

public class Date implements Comparable<Date> {
    private final int month, day, year;

    public Date(int m, int d, int y) {
        month = m;
        day   = d;
        year  = y;
    }

    public int compareTo(Date that) {
        if(this.year  < that.year ) return -1;
        if(this.year  > that.year ) return +1;
        if(this.month < that.month) return -1;
        if(this.month > that.month) return +1;
        if(this.day   < that.day  ) return -1;
        if(this.day   > that.day  ) return +1;
        return 0;
    }
}

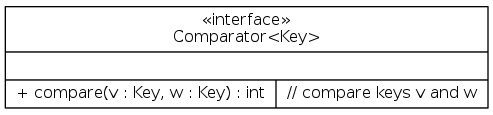

Comparator interface

Comparator interface: sort using an alternate order

Required property: Must be a total order

† Spanish language: pre-1994 order for digraphs ch and ll and rr

Comparator interface: system sort

To use with Java system sort:

• Create Comparator object
• Pass as second argument to Arrays.sort()

String[] a = {"foo","bar","baz"}

// sort using natural order
Arrays.sort(a);

// sort using alternate order defined by Comparator<String> object
Arrays.sort(a, String.CASE_INSENSITIVE_ORDER);
Arrays.sort(a, Collator.getInstance(new Locale("es")));
Arrays.sort(a, new BritishPhoneBookOrder());

Bottom line: Comparators decouple the definition of the data type from the definition of what it means to compare two objects of that type.

Comparator interface: using

To support comparators in our sort implementations:

• Use Object instead of Comparable
• Pass Comparator to sort() and less() and use it in less()

// insertion sort using a Comparator

public static void sort(Object[] a, Comparator comparator) {
    int N = a.length;
    for(int i = 0; i < N; i++)
        for(int j = i; j > 0 && less(comparator, a[j], a[j-1]); j--)
            exch(a, j, j-1);
}

private static boolean less(Comparator c, Object v, Object w) {
    return c.compare(v, w) < 0;
}
private static void exch(Object[] a, int i, int j) {
    Object swap = a[i]; a[i] = a[j]; a[j] = swap;
}

Comparator interface: implementing

To implement a comparator:

• Define a (nested) class that implements the Comparator interface
• Implement the compare() method

public class Student {
    private final String name;
    private final int section;

    public static class ByName implements Comparator<Student> {
        public int compare(Student v, Student w) {
            return v.name.compareTo(w.name);
        }
    }

    public static class BySection implements Comparator<Student> {
        public int compare(Student v, Student w) {
            // this trick works here since no danger of overflow
            return v.section - w.section;
        }
    }
}

using different Comparator implementations

// unsorted                              // <===
Arrays.sort(a, new Student.ByName());
Arrays.sort(a, new Student.BySection());

using different Comparator implementations

// unsorted
Arrays.sort(a, new Student.ByName());    // <===
Arrays.sort(a, new Student.BySection());

using different Comparator implementations

// unsorted
Arrays.sort(a, new Student.ByName());
Arrays.sort(a, new Student.BySection()); // <===

Merge sort

stability

Stability

A typical application: First, sort by name; then, sort by section

Selection.sort(a, new Student.ByName());    // <===
Selection.sort(a, new Student.BySection());

Stability

A typical application: First, sort by name; then, sort by section

Selection.sort(a, new Student.ByName());
Selection.sort(a, new Student.BySection()); // <===

Stability

A typical application: First, sort by name; then, sort by section

Selection.sort(a, new Student.ByName());
Selection.sort(a, new Student.BySection()); // <===

Argh! Students in section 3 no longer sorted by name!

A stable sort preserves the relative order of items with equal keys

stability

Q: Which sorts are stable?
A: Need to check algorithm (and implementation)

First sort by time, then sort by city

stability: insertion sort

Proposition: Insertion sort is stable

public class Insertion {
    public static void sort(Comparable[] a) {
        int N = a.length;
        for(int i = 0; i < N; i++)
            for(int j = i; j > 0 && less(a[j], a[j-1]); j--)
                exch(a, j, j-1);
    }
}

i j   0  1  2  3  4
      B1 A1 A2 A3 B2      note: A1==A2==A3  and  B1==B2
0 0   B1 .  .  .  .       the number indicates the order
1 0   A1 B1 .  .  .       in which each A and B originally
2 1   .  A2 B1 .  .       appear
3 2   .  .  A3 B1 .
4 4   .  .  .  .  B2      after sorting, we still have
      A1 A2 A3 B1 B2      A1 before A2 before A3, B1 before B2

Pf: Equal items (A1==A2==A3 and B1==B2) never move past each other

stability: Selection sort

Proposition: Selection sort is not stable

public class Selection {
    public static void sort(Comparable[] a) {
        int N = a.length;
        for(int i = 0; i < N; i++) {
            int min = i;
            for(int j = i+1; j < N; j++)
                if(less(a[j], a[min])) min = j;
            exch(a, i, min);
        }
    }
}

i min   0  1  2
        B1 B2 A      B1 comes before B2
0  2    A  .  B1
1  1    .  B2 .
2  2    .  .  B1
        A  B2 B1     B2 and B1 have swapped!

Pf by counterexample: Long-distance exchange can move one equal item past another one

stability: shellsort

Proposition: Shellsort is not stable

public class Shell {
    public static void sort(Comparable[] a) {
        int N = a.length;
        int h = 1;
        while(h < N/3) h = 3 * h + 1;
        while(h >= 1) {
            for(int i = h; i < N; i++) {
                for(int j = i; j > h && less(a[j], a[j-h]); j -= h)
                    exch(a, j, j-h);
            }
            h = h / 3;
        }
    }
}

h   0  1  2  3  4
    B1 B2 B3 B4 A     order: B1, B2, B3, B4
4   A  .  .  .  B1
1   .  .  .  .  .
    A  B2 B3 B4 B1    B1 now after B2,B3,B4!

Pf by counterexample: Long-distance exchanges

stability: merge sort

Proposition: Merge sort is stable

public class Merge {
    private static void merge(/*...*/) { /* as before */ }

    private static void sort(Comparable[] a, Comparable[] aux,
                             int lo, int hi) {
        if(hi <= lo) return;
        int mid = lo + (hi - lo) / 2;
        sort(a, aux, lo, mid);
        sort(a, aux, mid+1, hi);
        merge(a, aux, lo, mid, hi);
    }

    public static void sort(Comparable[] a) { /* as before */ }
}

Pf: Suffices to verify that merge operation is stable

stability: merge sort

Proposition: Merge sort is stable

public static void merge( /*...*/ ) {
    for(int k = lo; k <= hi; k++) aux[k] = a[k];

    int i = lo, j = mid+1;
    for(int k = lo; k <= hi; k++) {
        if     (i > mid)              a[k] = aux[j++];
        else if(j > hi)               a[k] = aux[i++];
        else if(less(aux[j], aux[i])) a[k] = aux[j++];
        else                          a[k] = aux[i++];
    }
}

0  1  2  3  4    5  6  7  8  9  10
A1 A2 A3 B  D    A4 A5 C  E  F  G

A1 A2 A3 A4 A5 B C D E F G

Pf: Takes from left subarray if equal keys

sorting summary
