Bags, Queues, and Stacks

COS 265 - Data Structures & Algorithms

Bags, Queues, and Stacks

introduction

stacks and queues

Fundamental data types

• Value: collection of objects
• Operations: insert, remove, iterate, test if empty
• Intent is fairly clear when we insert
• Which item do we remove?

stacks and queues

Stack: examine the item most recently added (LIFO)

Queue: examine the item least recently added (FIFO)

stacks and queues

Separate interface and implementation

For example: stack, queue, bag, priority queue, symbol table, union-find, ...

Benefits:

• client can't know details of implementation

  • client has many implementation from which to choose

• implementation can't know details of client needs

  • many clients can re-use the same implementation

• design: creates modular, reusable libraries

• performance: use optimized implementation where it matters

definitions

Client

program using operations defined in interface

Implementation

actual code implementing operations defined in interface

Interface

description of data type, basic operations

quick aside

Linked List

a recursive data structure that is either empty (null) or a reference to a node having a reference to a (generic) item and a reference to a linked list

Bags, Queues, and Stacks

stacks

stack api

Warmup API: stack of strings data type

Warmup client: reverse sequence of strings from standard input

quiz: linked-list stack

How to implement a stack with a linked list?

Can't be done efficiently with a singly-linked list. B. C. D.

push("it") push("was") push("the") push("best")

stack: linked-list implementation

• Maintain pointer first to first node in a singly-linked list
• Push new item before first
• Pop item from first

// inner class
private class Node {
    String item;
    Node next;
}

stack pop: linked-list implementation

public String pop() {
    String item = first.item;   // save item to return
    first = first.next;         // delete first node
    return item;                // return saved item
}

stack push: linked-list implementation

public void push(String item) {
    Node oldfirst = first;      // save a link to the list
    first = new Node();         // create a new node for the beginning
    first.item = item;          // set the instance variables in
    first.next = oldfirst;      //        the new node
}

stack: linked-list implementation in java

public class LinkedStackOfStrings {
    private Node first = null;

    private class Node {    // private inner class
        String item;        // (access modifiers for instance
        Node next;          // variables don't matter)
    }

    public boolean isEmpty() {
        return first == null;
    }

    public void push(String item) {
        Node oldfirst = first;
        first = new Node();
        first.item = item;
        first.next = oldfirst;
    }

    public String pop() {
        String item = first.item;
        first = first.next;
        return item;
    }
}

stack linked-list: performance

Proposition: Every operation takes constant time in the worst case

Proposition: A stack with \(N\) items uses \(\sim 40 N\) bytes.

private class Node { String item; Node next; }

Remark: This accounts for the memory for the stack, but not the memory for Strings themselves, which the client owns.

quiz: fixed-capacity array stack

How to implement a fixed-capacity stack with array?

Can't be done efficiently with an array B. C. D.

push("it") push("was") push("the") push("best") push("times")

fixed-capacity stack: array implementation

• Use array s[] to store N items on stack
• push(): add new item at s[N]
• pop(): remove item from s[N-1]

Defect: Stack overflows when N exceeds capacity! (stay tuned...)

fixed-capacity stack: array implementation

public class FixedCapacityStackOfStrings {
    private String[] s;
    private int N = 0;

    public FixedCapacityStackOfStrings(int capacity) {
        s = new String[capacity];   // a cheat (stay tuned!)
    }

    public boolean isEmpty() {
        return N == 0;
    }

    public void push(String item) {
        s[N++] = item;  // use to index into array, then increment N
    }

    public String pop() {
        return s[--N];  // decrement N, then use to index into array
    }
}

stack considerations

Overflow and underflow

• Underflow: throw exception if pop from an empty stack
• Overflow: use resizing array for array implementation (stay tuned)

Null items: we allow null items to be inserted

Loitering: holding a reference to an object when it is no longer needed

stack considerations

Following code allows for loitering.

public String pop() {
    return s[--N];
}

Following code avoids loitering, so garbage collector can reclaim memory for an object only if no outstanding references.

public String pop() {
    String item = s[--N];
    s[N] = null;
    return item;
}

Bags, Queues, and Stacks

resizing arrays

stack: resizing-array implementation

Problem: requiring client to provide capacity does not implement API!

Q: How to grow and shrink array?

First try:

• push(): increase size of array s[] by 1.
• pop(): decrease size of array s[] by 1.

Too expensive!

stack: resizing-array implementation

Resizing by increasing size of array by 1:

• Need to copy a items to a new array, for each operation
• Array accesses to insert first \(N\) items is \(\underbrace{N}_1 + \underbrace{(2+4+\ldots+2(N-1))}_{2(k-1)} \sim N^2\)
  • \(1\) array access per push
  • \(2(k-1)\) array accesses to expand to size \(k-1\) to \(k\), ignoring cost to create new array
• Infeasible for large \(N\)

stack: resizing-array implementation

Challenge: Ensure that array resizing happens infrequently

stack: resizing-array implementation

Q: How to grow array?

A: If array is full, create a new array of twice the size, and copy items. (twice = repeated doubling)

public ResizingArrayStackOfStrings() {
    s = new String[1];
}

public void push(String item) {
    if(N == s.length) resize(2 * s.length);
    s[N++] = item;
}

private void resize(int capacity) {
    String[] copy = new String[capacity];
    for(int i = 0; i < N; i++) copy[i] = s[i];
    s = copy;
}

stack: resizing-array implementation

Array accesses to insert first \(N = 2^i\) items:

\[ \underbrace{N}_1 + \underbrace{(2+4+8+16+\ldots+N)}_k \sim 3N \]

• \(1\) array access per push
• \(k\) array accesses to double size from \(k/2\) to \(k\), ignoring cost to create new array

stack: resizing-array implementation

Q: How to shrink array?

First try:

• push(): double size of s[] when array is full
• pop(): halve size of array s[] when array is one-half full

Too expensive in worst case

• Consider push-pop-push-pop-... sequence when array is full
• Each operation takes time proportional to \(N\)

stack: resizing-array implementation

push("to"); push("be"); push("or"); push("not"); push("be"); // N = 5 pop(); // N = 4 push("to"); // N = 5 pop(); // N = 4

stack: resizing-array implementation

Q: How to shrink array?

Efficient solution:

• push(): double size of array s[] when array is full
• pop(): halve size of array s[] when array is one-quarter full

public String pop() {
    String item = s[--N];
    s[N] = null;
    if(N > 0 && N == s.length/4) resize(s.length/2);
    return item;
}

Invariant: Array is between 25% and 100% full

stack resizing-array: performance

Amortized analysis

Starting from an empty data structure, average running time per operation over a worst-case sequence of operations

Proposition: starting from an empty stack, any sequence of \(M\) push and pop operations takes time proportional to \(M\)

Order of growth of running time for resizing stack with \(N\) items:

\(N\) for push and pop because of doubling and halving operations.

stack resizing-array: memory usage

Proposition: uses between \(\sim 8N\) and \(\sim 32N\) bytes to represent a stack with \(N\) items

• \(\sim 8N\) when full
• \(\sim 32N\) when one-quarter full

public class ResizingArrayStackOfStrings {
    private String[] s;     // 8 bytes * array size
    private int N = 0;
    // ...
}

Remark: this accounts for the memory for the stack, but not the memory for strings themselves, which the client owns.

stack: resizing array vs. linked list

Tradeoffs: can implement a stack with either resizing array or linked list; client can use interchangeably. Which one is better?

Linked-list implementation

• Every operation takes constant time in the worst case
• Uses extra time and space to deal with the links

Resizing-array implementation

• Every operation takes constant amortized time
• Less wasted space

Bags, Queues, and Stacks

queues

Queue API

Quiz: Impement Linked-List Queue

How to implement queue with linked list?

Can't be done efficiently with a singly-linked list B. C. D.

enqueue("it") enqueue("was") enqueue("the") enqueue("best")

Queue: linked-list implementation

• Maintain one pointer first to first node in singly-linked list
• Maintain another pointer last to last node
• Dequeue from first
• Enqueue after last

queue dequeue: linked-list implementation

public String dequeue() {
    String item = first.item;   // save item to return
    first = first.next;         // delete first node
    return item;                // return saved item
}

Remark: Identical code to linked-list stack pop

queue enqueue: linked-list implementation

public String enqueue(String item) {
    Node oldlast = last;        // save a link to the last node
    last = new Node();          // create a new node for end
    last.item = item;
    oldlast.next = last;        // link new node to end of list
}

queue: linked-list implementation in java

public class LinkedQueueOfStrings {
    private Node first, last;

    private class Node { /* same as in LinkedStackOfStrings */ }

    public boolean isEmpty() { return first == null; }

    public void enqueue(String item) {
        Node oldlast = last;
        last = new Node();
        last.item = item;
        last.next = null;
        if(isEmpty()) first = last;     // handle special case
        else oldlast.next = last;       // for empty queue
    }

    public String dequeue() {
        String item = first.item;
        first = first.next;
        if(isEmpty()) last = null;      // handle special case...
        return item;
    }
}

quiz: implement fixed-capacity array queue

How to implement a fixed-capacity queue with an array?

Can't be done efficiently with an array B. C. D. Either B or C

enqueue("it") enqueue("was") enqueue("the") enqueue("best") enqueue("times")

queue: resizing-array implementation

• Use array q[] to store items in queue
• enqueue adds new item at q[tail]
• dequeue removes item from q[head]
• Update head and tail modulo the capacity
• Add resizing array

Q: How to resize?

Bags, Queues, and Stacks

generics

parameterized stack

We implemented StackOfStrings

We also want StackOfURLs, StackOfInts, StackOfPancakes, ...

Attempt 1: Implement a separate stack class for each type

• Rewriting code is tedious and error-prone
• Maintaining copy-and-pasted code is tedious and error-prone

Unfortunately, this was most reasonable approach in Java until 1.5!

parameterized stack

We implemented StackOfStrings

We also want StackOfURLs, StackOfInts, StackOfPancakes, ...

Attempt 2: Implement a stack with items of type Object

• Casting is required in client
• Casting is error-prone: run-time error if types mismatch

StackOfObjects s = new StackOfObjects();
Apple  a = new Apple();
Banana b = new Banana();
s.push(a);
s.push(b);
a = (Apple) (s.pop());  // run-time error!

parameterized stack

We implemented StackOfStrings

We also want StackOfURLs, StackOfInts, StackOfPancakes, ...

Attempt 3: Java generics

• Avoid casting in client
• Discover type mismatch errors at compile-time instead of run-time

Stack<Apple> s = new Stack<Apple>();
//    ^^^^^                ^^^^^   type parameter
Apple  a = new Apple();
Banana b = new Banana();
s.push(a);
s.push(b);  // compile-time error
a = s.pop();

Guiding principles: welcome compile-time errors; avoid run-time errors

Generic stack: linked-list implementation

public class LinkedStackOfStrings {
    private Node first = null;

    private class Node {    // private inner class
        String item;        // (access modifiers for instance
        Node next;          // variables don't matter)
    }

    public boolean isEmpty() { return first == null; }

    public void push(String item) {
        Node oldfirst = first;
        first = new Node();
        first.item = item;
        first.next = oldfirst;
    }

    public String pop() {
        String item = first.item;
        first = first.next;
        return item;
    }
}

Generic stack: linked-list implementation

public class LinkedStack<Item> {
    private Node first = null;

    private class Node {    // private inner class
        Item item;          // (access modifiers for instance
        Node next;          // variables don't matter)
    }

    public boolean isEmpty() { return first == null; }

    public void push(Item item) {
        Node oldfirst = first;
        first = new Node();
        first.item = item;
        first.next = oldfirst;
    }

    public Item pop() {
        Item item = first.item;
        first = first.next;
        return item;
    }
}

generic stack: array implementation

public class FixedCapacityStackOfStrings {
    private String[] s;
    private int N = 0;

    public FixedCapacityStackOfStrings(int capacity) {
        s = new String[capacity];
    }

    public boolean isEmpty() { return N == 0; }
    public void push(String item) { s[N++] = item; }
    public String pop() { return s[--N]; }
}

generic stack: array implementation

public class FixedCapacityStack<Item> {
    private Item[] s;
    private int N = 0;

    public FixedCapacityStackOfStrings(int capacity) {
        s = new Item[capacity];     // <- not allowed in Java :(
    }

    public boolean isEmpty() { return N == 0; }
    public void push(Item item) { s[N++] = item; }
    public Item pop() { return s[--N]; }
}

Except line 6 (generic array creation) is not allowed in Java :(

generic stack: array implementation

public class FixedCapacityStack<Item> {
    private Item[] s;
    private int N = 0;

    public FixedCapacityStackOfStrings(int capacity) {
        s = (Item[]) new Object[capacity];  // ugly cast :( but works :|
    }

    public boolean isEmpty() { return N == 0; }
    public void push(Item item) { s[N++] = item; }
    public Item pop() { return s[--N]; }
}

A (ugly) cast will "fix" the problem

Unchecked cast

May get a compiler warning

$ javac GenericArrays.java
Note: GenericArrays.java uses unchecked or unsafe operations.
Note: Recompile with -Xlint:unchecked for details.

$ javac -Xlint:unchecked GenericArrays.java
GenericArrays.java:6: warning: [unchecked] unchecked cast
        items = (Item[]) new Object[5];
                         ^
  required: Item[]
  found:    Object[]
  where Item is a type-variable:
    Item extends Object declared in class GenericArrays
1 warning

Q: Why does Java make me cast (or use reflection)?

Short answer: Backward compatibility.

Long answer: Need to learn about type erasure and covariant arrays (see this page for more details)

generic array note

Note: creating a generic array where the generic type implements an interface requires using the interface, not Object.

public class BrokenCollection<Item extends Comparable<Item>> {
    Item[] array;
    public Collection() {
        array = (Item[]) new Object[1];      // Runtime Exception :(
    }
}

public class WorkingCollection<Item extends Comparable<Item>> {
    Item[] array;
    public Collection() {
        array = (Item[]) new Comparable[1];  // this works :)
    }
}

stack implementations

Stack<String> llstack = new LinkedListStack<>();
Stack<String> astack  = new ArrayStack<>();
//   ^^^^^^^^                         ^^
// only need to specify generic type once

// these are still fine to do
LinkedListStack<String> llstack2 = new LinkedListStack<>();
ArrayStack<String>      astack2  = new ArrayStack<>();

// the following is error!
Stack<String> stack = new Stack<>();
//                        ^^^^^
// cannot create instance of interface!

Generic data types: autoboxing

Q: What to do about primitive types? (int, double, boolean, etc.)

Wrapper type

• Each primitive has a wrapper object type
• ex: Integer for int, Double for double, Boolean for boolean, etc.

Autoboxing

Automatic cast between a primitive type and its wrapper

Stack<Integer> s = new Stack<Integer>();
s.push(17);         // s.push(Integer.valueOf(17));
int a = s.pop();    // int a = s.pop().intValue();

Bottom line: Client code can use generic stack for any type of data

Bags, Queues, and Stacks

iterators

iteration

Design challenge: Support iteration over stack items by client, without revealing the internal representation of the stack.

Java solution: Make stack implement the java.lang.Iterable interface

iteration

Q: What is an Iterable?
A: Has a method that returns an Iterator.

Q: What is an Iterator?
A: Has methods hasNext() and next().

// java.lang.Iterable interface
public interface Iterable<Item> {
    Iterator<Item> iterator();
}

// java.util.Iterator interface
public interface Iterator<Item> {
    boolean hasNext();
    Item next();
    void remove();  // optional; use at your own risk
}

iteration

Q: Why make data structures Iterable?
A: Java support elegant client code.

// "foreach" statement (shorthand)
for(String s : stack) {
    StdOut.println(s);
}

// equivalent code (longhand)
Iterator<String> i = stack.iterator();
while(i.hasNext()) {
    String s = i.next();
    StdOut.println(s);
}

stack iterator: linked-list implementation

Version 1: named Iterator class for linked-list stack

import java.util.Iterator;      // <- must import this!
public class LinkedListStack<Item> implements Iterable<Item> {
    /* ... */
    public Iterator<Item> iterator() { return new ListIterator(); }
    private class ListIterator implements Iterator<Item> {
        private Node<Item> current = first;
        public boolean hasNext() { return current != null; }
        public void remove()     { /* not supported */ }
        public Item next() {
            Item item = current.item;
            current = current.next;
            return item;
        }
    }
}

stack iterator: linked-list implementation

Version 2: unnamed Iterator class for linked-list stack

import java.util.Iterator;      // <- must import this!
public class LinkedListStack<Item> implements Iterable<Item> {
    /* ... */
    public Iterator<Item> iterator() {
        return new Iterator<Item>() {
            private Node<Item> current = first;
            public boolean hasNext() { return current != null; }
            public void remove()     { /* not supported */ }
            public Item next() {
                Item item = current.item;
                current = current.next;
                return item;
            }
        };
    }
}

stack iterator: array implementation

Version 1: named Iterator class for array-based stack

import java.util.Iterator;      // <- must import this!
public class ArrayStack<Item> implements Iterable<Item> {
    /* ... */
    public Iterator<Item> iterator() {
        return new ReverseArrayIterator();
    }
    private class ReverseArrayIterator implements Iterator<Item> {
        private int i = N;
        public boolean hasNext() { return i > 0; }
        public void remove()     { /* not supported */ }
        public Item next()       { return s[--i]; }
    }
}

iteration: concurrent modification

Q: What if client modifies the data structure while iterating?
A: A fail-fast iterator throws a java.util.ConcurrentModificationException.

// concurrent modification :(
for(String s : stack) stack.push(s);

Q: How to detect?
A: Simple!

• Count total number of push() and pop() operations in Stack
• Save counts in Iterator subclass upon creation
• If, when calling next() and hasNext(), the current count and saved count do not equal (client called push or pop), throw exception

Bags, Queues, and Stacks

applications

java collections library

List interface: java.util.List is API for a sequence of items

Implementations: java.util.ArrayList uses resizing array; java.util.LinkedList uses linked list.

Caveat: many operations available, but only some are efficient!

java collections library

java.util.Stack

• Supports push(), pop(), and iteration
• Extends java.util.Vector, which implements java.util.List interface from previous slide, including get() and remove()
• Bloated and poorly-designed API (why?)

java collections library

Java 1.3 bug report (June 27, 2001)

“

The iterator method on java.util.Stack iterates through a Stack from the bottom up. One would think that it should iterate as if it were popping off the top of the Stack.

”

Status (closed, will not fix)

“

It was an incorrect design decision to have Stack extend Vector ("is-a" rather than "has-a"). We sympathize with the submitter but cannot fix this because of compatibility.

”

java collections library

java.util.Stack

java.util.Queue: An interface, not an implementation of a queue

Best practices: use implementations of Stack, Queue, and Bag provided by algs4.jar

War story

Generate random tile locations in \(N\)-by-\(N\) HexBoard

• Alice
  • Pick row,col at random; if already set, repeat
  • Takes \(\sim c_1 N^2\) seconds
• Bob
  • Create a java.util.ArrayList of \(N^2\) unset tile locations
  • Pick an index at random and delete
  • Takes \(\sim c_2 N^4\) seconds

“

Why is my program so slow?

”

War story

Lesson: Don't use a library until you understand its API and implementation!

This course: Can't use a library until we've implemented it in class

stack applications

• Parsing in a compiler
• Java virtual machine
• Undo in a word processor
• Back button in a web browser
• PostScript language for printers
• Implementing function calls in a compiler
• ...

function calls

How a compiler implements a function

• Function call: push local environment and return address
• Return: pop return address and local environment

Recursive function: Function that calls itself

Note: Can always use an explicit stack to remove recursion

function calls

Recursion example: greatest common divisor

static int gcd(int p, int q) {
    if(q == 0) return p;
    return gcd(q, p % q);
}

gcd(216, 192)       // stack: p=216, q=192
    gcd(192, 24)    // stack:   216,   192, p=192, q=24
        gcd(24, 0)  // stack:   216,   192,   192,   24, p=24, q=0
        <- 24       // stack:   216,   192,   192,   24, ret=24
    <- 24           // stack:   216,   192, ret=24
<- 24               // stack: ret=24

arithmetic expression evaluation

Goal: evaluate infix expressions

( 1 + ( ( 2 + 3 ) * ( 4 * 5 ) ) )
          ^ operand     ^ operator

Two-stack algorithm (E. W. Dijkstra)

• Value/operand: push onto the value stack
• Operator: push onto the operator stack
• Left parenthesis: ignore
• Right parenthesis: pop operator and two values, and push to value stack the result of applying operator on values
• Notes: Every operator must nest in a unique pair of parentheses; assuming valid arithmetic input.

Context: an interpreter!

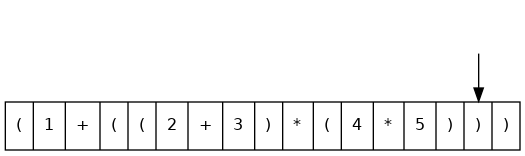

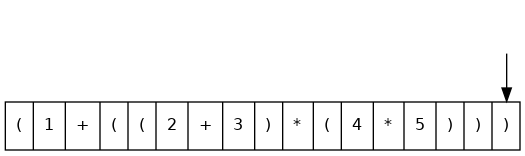

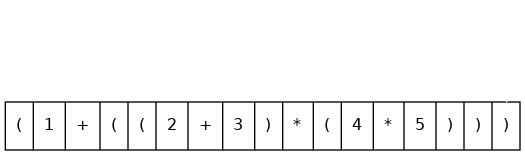

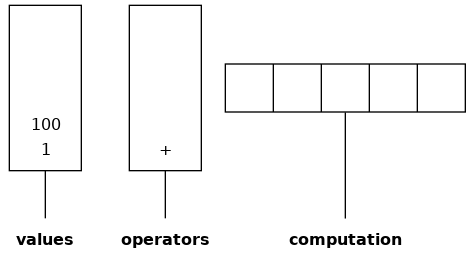

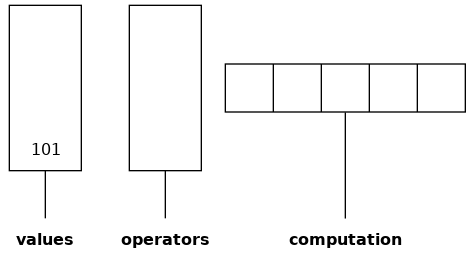

Dijkstra's two-stack algorithm demo

‹ □ 0 play: 1fps play: 2fps play: 4fps play: 8fps ›

infix expression (fully parenthesized)

infix expression (fully parenthesized)

infix expression (fully parenthesized)

infix expression (fully parenthesized)

infix expression (fully parenthesized)

infix expression (fully parenthesized)

infix expression (fully parenthesized)

infix expression (fully parenthesized)

infix expression (fully parenthesized)

infix expression (fully parenthesized)

infix expression (fully parenthesized)

infix expression (fully parenthesized)

infix expression (fully parenthesized)

infix expression (fully parenthesized)

infix expression (fully parenthesized)

infix expression (fully parenthesized)

infix expression (fully parenthesized)

infix expression (fully parenthesized)

infix expression (fully parenthesized)

infix expression (fully parenthesized)

infix expression (fully parenthesized)

infix expression (fully parenthesized)

infix expression (fully parenthesized)

arithmetic expression evaluation

public class Evaluate {
    public static void main(String[] args) {
        Stack<String> ops  = new Stack<String>();
        Stack<Double> vals = new Stack<Double>();
        while(!StdIn.isEmpty()) {
            String s = StdIn.readString();
            if     (s.equals("("))            ;
            else if(s.equals("+")) ops.push(s);
            else if(s.equals("*")) ops.push(s);
            else if(s.equals(")")) {
                String op = ops.pop();
                if     (op.equals("+"))
                            vals.push(vals.pop() + vals.pop());
                else if(op.equals("*"))
                            vals.push(vals.pop() * vals.pop());
            } else vals.push(Double.parseDouble(s));
        }
        StdOut.println(vals.pop());
    }
}

$ java Evaluate
( 1 + ( ( 2 + 3 ) * ( 4 * 5 ) ) )
101.0

correctness

Q: Why correct?
A: When algorithm encounters an operator surrounded by two values within parentheses, it leaves the result on the value stack as if it was the original input.

input:          ( 1 + ( ( 2 + 3 ) * ( 4 * 5 ) ) )
processing:     ( 1 + ( ( 2 + 3 ) ...
                ( 1 + ( 5         * ( 4 * 5 ) ...
                ( 1 + ( 5         * 20        ) ...
                ( 1 + 100                       )
output:         101

Extensions: More ops, precedence order, associativity

stack-based programming languages

Observation 1: Dijkstra's two-stack algorithm computes the same value if the operator occurs after the two values

Observation 2: All the parentheses are redundant!

infix:   ( 1 + ( ( 2 + 3 ) * ( 4 * 5 )   )   )
postfix: ( 1   ( ( 2 3 + )   ( 4 5 * ) * ) + )
no ()s:    1       2 3 +       4 5 *   *   +

short: 1 2 3 + 4 5 * * +

Bottom line: Postfix or "reverse Polish" notation

Applications: Postscript, Forth, calculators, Java virtual machine, ...
