Union-Find

COS 265 - Data Structures & Algorithms

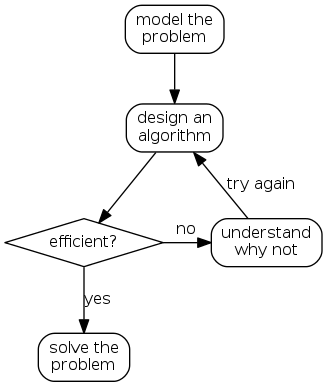

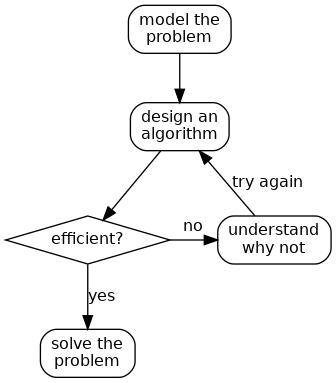

Union-Find

dynamic-connectivity problem

Given a set of \(N\) elements, support two operations:

Connection command connect(a, b): directly connect two elements, a and b, with an edge
Connection query isConnected(a, b): returns true if there is a path connecting two elements, a and b?

dynamic-connectivity problem

connect(4, 3)
connect(3, 8)
connect(6, 5)
connect(9, 4)
connect(2, 1)
isConnected(8, 9) // ?
isConnected(5, 7) // ?
connect(5, 0)
connect(7, 2)
connect(6, 1)
connect(1, 0)
isConnected(5, 7) // ?

determining isConnected this way can be tricky, especially as number of elements and connect calls increases...

connect(4, 3)     // <--
connect(3, 8)
connect(6, 5)
connect(9, 4)
connect(2, 1)
isConnected(8, 9) // ?
isConnected(5, 7) // ?
connect(5, 0)
connect(7, 2)
connect(6, 1)
connect(1, 0)
isConnected(5, 7) // ?

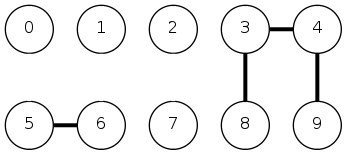

instead, working and thinking visually can make the problem a little easier

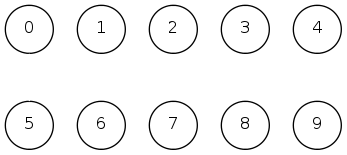

connect(4, 3)

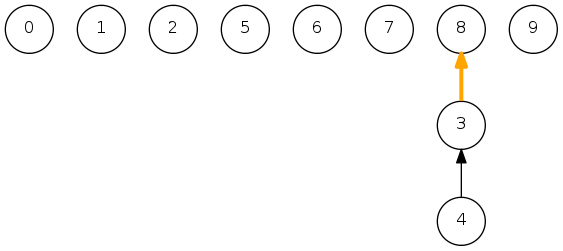

connect(3, 8)     // <--
connect(6, 5)
connect(9, 4)
connect(2, 1)
isConnected(8, 9) // ?
isConnected(5, 7) // ?
connect(5, 0)
connect(7, 2)
connect(6, 1)
connect(1, 0)
isConnected(5, 7) // ?

connect(4, 3)
connect(3, 8)
connect(6, 5)     // <--
connect(9, 4)
connect(2, 1)
isConnected(8, 9) // ?
isConnected(5, 7) // ?
connect(5, 0)
connect(7, 2)
connect(6, 1)
connect(1, 0)
isConnected(5, 7) // ?

connect(4, 3)
connect(3, 8)
connect(6, 5)
connect(9, 4)     // <--
connect(2, 1)
isConnected(8, 9) // ?
isConnected(5, 7) // ?
connect(5, 0)
connect(7, 2)
connect(6, 1)
connect(1, 0)
isConnected(5, 7) // ?

connect(4, 3)
connect(3, 8)
connect(6, 5)
connect(9, 4)
connect(2, 1)     // <--
isConnected(8, 9) // ?
isConnected(5, 7) // ?
connect(5, 0)
connect(7, 2)
connect(6, 1)
connect(1, 0)
isConnected(5, 7) // ?

connect(4, 3)
connect(3, 8)
connect(6, 5)
connect(9, 4)
connect(2, 1)
isConnected(8, 9) // ? <--
isConnected(5, 7) // ?
connect(5, 0)
connect(7, 2)
connect(6, 1)
connect(1, 0)
isConnected(5, 7) // ?

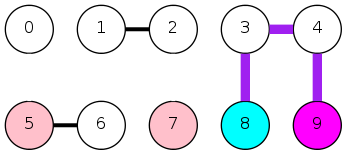

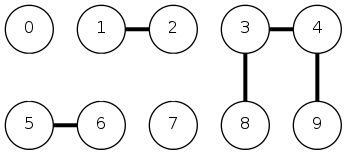

visually (intuitively), this is much easier to answer

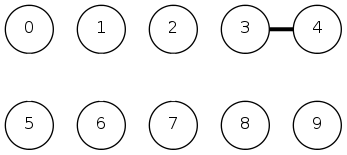

connect(4, 3)

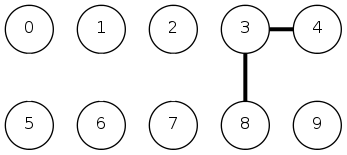

connect(3, 8)
connect(6, 5)
connect(9, 4)
connect(2, 1)
isConnected(8, 9) // true
isConnected(5, 7) // ?
connect(5, 0)
connect(7, 2)
connect(6, 1)
connect(1, 0)
isConnected(5, 7) // ?

connect(4, 3)
connect(3, 8)
connect(6, 5)
connect(9, 4)
connect(2, 1)
isConnected(8, 9) // true
isConnected(5, 7) // ? <--
connect(5, 0)
connect(7, 2)
connect(6, 1)
connect(1, 0)
isConnected(5, 7) // ?

visually (intuitively), this is much easier to answer

connect(4, 3)
connect(3, 8)
connect(6, 5)
connect(9, 4)
connect(2, 1)

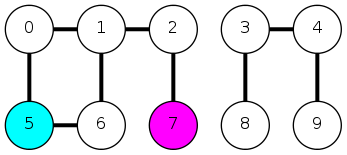

isConnected(8, 9) // true
isConnected(5, 7) // false
connect(5, 0)
connect(7, 2)
connect(6, 1)
connect(1, 0)
isConnected(5, 7) // ?

connect(4, 3)
connect(3, 8)
connect(6, 5)
connect(9, 4)
connect(2, 1)
isConnected(8, 9) // true
isConnected(5, 7) // false
connect(5, 0)     // <--
connect(7, 2)     // <--
connect(6, 1)     // <--
connect(1, 0)     // <--
isConnected(5, 7) // ?

connect(4, 3)
connect(3, 8)
connect(6, 5)
connect(9, 4)
connect(2, 1)
isConnected(8, 9) // true
isConnected(5, 7) // false
connect(5, 0)
connect(7, 2)
connect(6, 1)
connect(1, 0)
isConnected(5, 7) // ? <--

connect(4, 3)
connect(3, 8)
connect(6, 5)
connect(9, 4)
connect(2, 1)
isConnected(8, 9) // true
isConnected(5, 7) // false
connect(5, 0)
connect(7, 2)
connect(6, 1)
connect(1, 0)
isConnected(5, 7) // true

A larger connectivity example

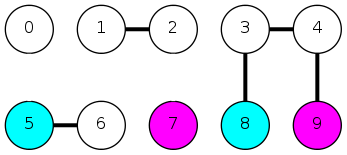

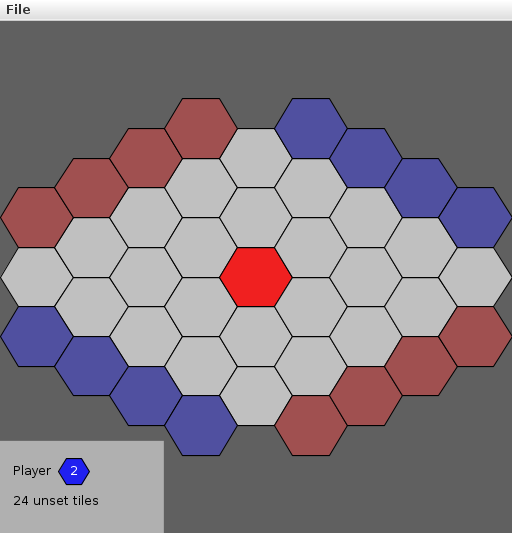

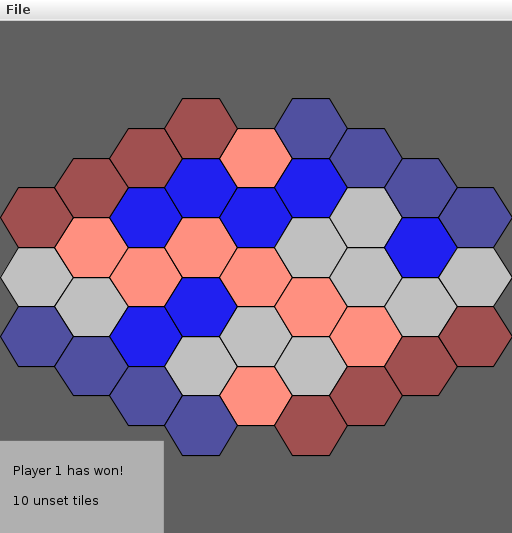

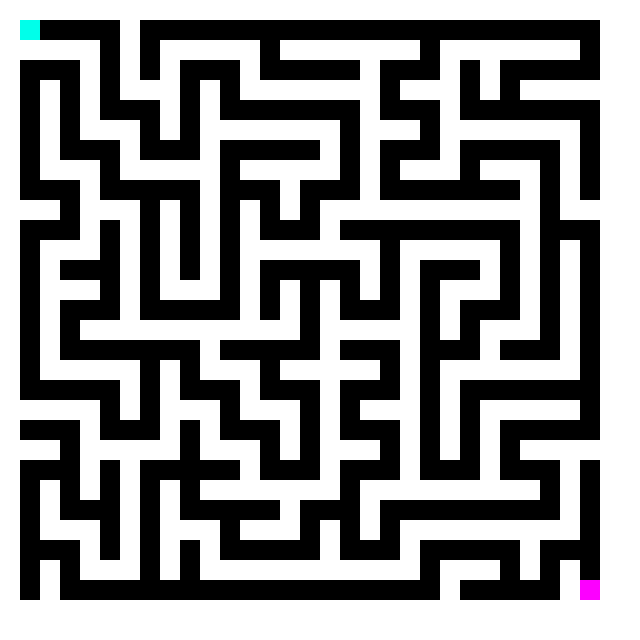

Is there a path connecting cyan and pink elements?

Yes.

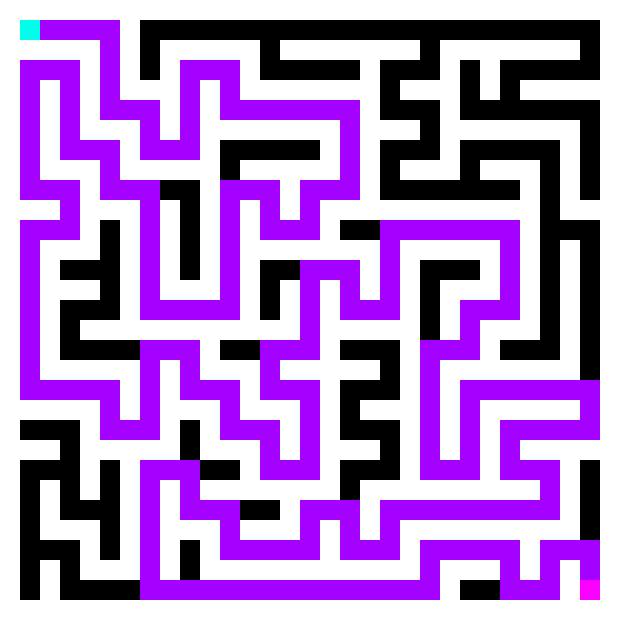

Note: finding the path explicitly is a harder problem

Note: as the problem size gets larger, the problem becomes harder

modeling the elements

Applications involve manipulating elements of all types

pixels in a digital photo
computers in a network
friends in a social network
transistors in a computer chip
elements in a mathematical set
variable names in a Fortran program
metallic sites in a composite system

modeling the elements

When programming, convenient to name elements 0 to N-1.

use integers as array index
suppress details not relevant to union-find

modeling the elements

We model "is connected to" as an equivalence relation, which is reflexive, symmetric, and transitive.

Reflexive: p is connected to p

Symmetric: if p is connected to q, then q is connected to p

Transitive: if p is connected to q and q is connected to r, then p is connected to r

quiz: equivalence relation

live view; card view; qrcode

Which is not a property of equivalence relation?

Associative
Reflexive
Transitive
Symmetric

modeling the elements

Connected component: maximal set of elements that are mutually connected

Example:

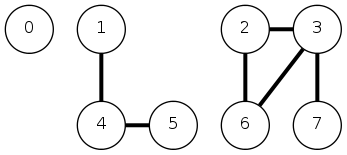

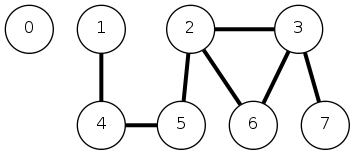

3 disjoint sets / connected components

\[ \{0\}\ \{1,4,5\}\ \{2,3,6,7\} \]

two core operations on disjoint sets

union(p, q): replace sets containing elements p and q with their union
find(p): in which set is element p?
isConnected(p, q): can be defined as find(p) == find(q)

\[\{0\}\ \{1,4,5\}\ \{2,3,6,7\}\quad\underset{\textrm{union}(2,5)}{\Rightarrow}\quad\{0\}\ \{1,2,3,4,5,6,7\}\]

find(5) != find(6)
union(2, 5)         // 3 disjoint sets -> 2 disjoint sets
find(5) == find(6)

modeling dynamic-connectivity using u-f

How to model the dynamic-connectivity problem using union-find?

Maintain disjoint sets that correspond to connected components

union(2, 5)

union-find data type (api)

Goal: design an efficient union-find data type

number of elements \(N\) can be huge
number of operations \(M\) can be huge
union and find operations can be intermixed

public class UF {
    // initialize union-find data structure with N singleton sets (0 to N-1)
    UF(int N) { ... }

    // merge sets containing elements p and q
    void union(int p, int q) { ... }

    // identifier for set containing element p (0 to N-1)
    int find(int p) { ... }
}

dynamic-connectivity client

read in number of elements \(N\) from standard input
repeat:
- read in pair of integers from standard input
- if they are not yet connected, connect them and print pair

public static void main(String[] args) {
    int N = StdIn.readInt();
    UF uf = new UF(N);
    while(!StdIn.isEmpty()) {
        int p = StdIn.readInt();
        int q = StdIn.readInt();
        if(uf.find(p) != uf.find(q)) {
            uf.union(p, q);
            StdOut.println(p + " " + q);
        }
    }
}

dynamic-connectivity client

Note with input below, lines 7, 11, and 12 (highlighted) are already connected and therefore will not print.

Input:

Output:

Union-Find

quick find implementation

quick-find (eager approach)

Data Structure

Integer array id[] of length N
Interpretation: id[p] identifies the set containing element p

\[ \{0,5,6\}\ \{1,2,7\}\ \{3,4,8,9\} \]

//           0 1 2 3 4 5 6 7 8 9   index
int [] id = {0,1,1,8,8,0,0,1,8,8};
// find(5) == 0

Q: How to implement find(p)?

quick-find (eager approach)

Data Structure

Integer array id[] of length N
Interpretation: id[p] identifies the set containing element p

\[ \{0,5,6\}\ \{1,2,7\}\ \{3,4,8,9\} \]

//           0 1 2 3 4 5 6 7 8 9   index
int [] id = {0,1,1,8,8,0,0,1,8,8};
// find(5) == 0

Q: How to implement find(p)?
A: Easy, just return id[p]

quick-find (eager approach)

Data Structure

Integer array id[] of length N
Interpretation: id[p] identifies the set containing element p \[ \{0,5,6\}\ \{1,2,7\}\ \{3,4,8,9\} \underset{\textrm{union}(6,1)}{\Rightarrow} \{0,1,2,5,6,7\}\ \{3,4,8,9\} \]

//           0 1 2 3 4 5 6 7 8 9   index
int [] id = {0,1,1,8,8,0,0,1,8,8};

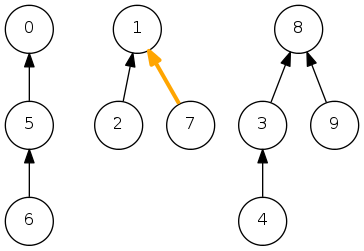

union(6,1);
//     id = ??

Q: How to implement union(p,q)?

quick-find (eager approach)

Data Structure

Integer array id[] of length N
Interpretation: id[p] identifies the set containing element p \[ \{0,5,6\}\ \{1,2,7\}\ \{3,4,8,9\} \underset{\textrm{union}(6,1)}{\Rightarrow} \{0,1,2,5,6,7\}\ \{3,4,8,9\} \]

//           0 1 2 3 4 5 6 7 8 9   index
int [] id = {0,1,1,8,8,0,0,1,8,8};
union(6,1);
//     id = ??

Q: How to implement union(p,q)?
A: Change all entries whose identifier equals id[p] to id[q].
id = {1,1,1,8,8,1,1,1,8,8}

quick-find java implementation

public class QuickFindUF {
    private int[] id;

    public QuickFindUF(int N) {
        // set id of each element to itself.  N array accesses
        id = new int[N];
        for(int i = 0; i < N; i++)
            id[i] = i;
    }

    public int find(int p) {
        // return the id of p.  1 array access
        return id[p];
    }

    public void union(int p, int q) {
        // change all entries with id[p] to id[q]
        // N+2 to 2N+2 array accesses
        int pid = id[p];
        int qid = id[q];
        for(int i = 0; i < id.length; i++) {
            if(id[i] == pid) id[i] = qid;
        }
    }
}

quick-find is too slow

Cost model: Number of array accesses (for read or write)

algorithm	initialize	union	find
quick-find	\(N\)	\(N\)	\(1\)

Note

Ignoring leading constant (for now)

Union is too expensive! Processing a sequence of \(N\) union operations on \(N\) elements takes more than \(N^2\) (quadratic) array accesses.

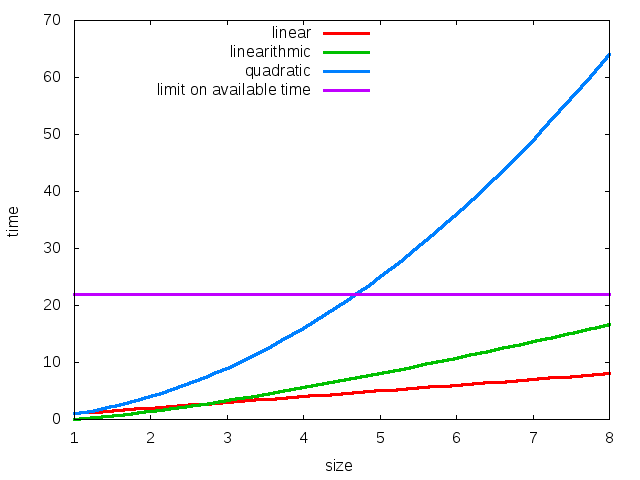

quadratic algorithms do not scale

Rough standard (for now)

\(10^{10}\) operations per second
\(10^{10}\) words of main memory
touch all words in approximately 1 second
- a truism (roughly) since 1950!

Ex. Huge problem for quick-find

\(10^{10}\) union commands on \(10^{10}\) elements
quick-find takes more than \(10^{20}\) operations
300+ years of computer time!
- you will be long gone before your program finishes

quadratic algorithms do not scale

Quadratic algorithms don't scale with technology

new computer may be 10× as fast with 10× as much memory
\(\Rightarrow\) want to solve a problem that is 10× as big
with quadratic algorithm, takes 10× as long!

Union-Find

quick union implementation

quick-union (lazy approach)

Data Structure

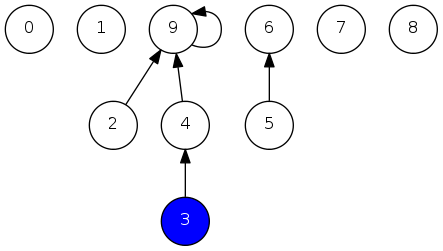

Integer array parent[] of length N, where parent[i] is parent of i in tree
Interpretation: elements in a tree corresponding to a set

quick-union (lazy approach)

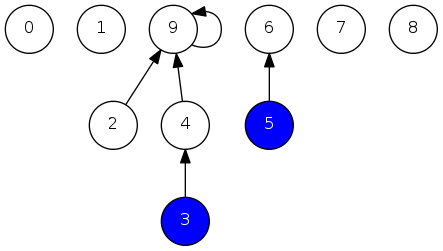

\[ \{0\}\ \{1\}\ \{2,3,4,9\}\ \{5,6\}\ \{7\}\ \{8\} \]

//               0 1 2 3 4 5 6 7 8 9   index
int [] parent = {0,1,9,4,9,6,6,7,8,9};
// parent of 3 is 4, parent of 4 is 9, parent of 9 is 9
//   root of 3 is 9
// parent and root of 5 is 6

Q: How to implement find(p)?

quick-union (lazy approach)

\[ \{0\}\ \{1\}\ \{2,3,4,9\}\ \{5,6\}\ \{7\}\ \{8\} \]

//               0 1 2 3 4 5 6 7 8 9   index
int [] parent = {0,1,9,4,9,6,6,7,8,9};
// parent of 3 is 4, parent of 4 is 9, parent of 9 is 9
//   root of 3 is 9
// parent and root of 5 is 6

Q: How to implement find(p)?
A: Return root of tree containing p

quick-union (lazy approach)

\[ \ldots \{2,3,4,9\} \{5,6\} \ldots \Rightarrow \ldots \{2,3,4,5,6,9\} \ldots \]

//               0 1 2 3 4 5 6 7 8 9   index
int [] parent = {0,1,9,4,9,6,6,7,8,9};
union(3, 5)
//     parent = ???

Q: How to implement union(p,q)?

quick-union (lazy approach)

\[ \ldots \{2,3,4,9\} \{5,6\} \ldots \Rightarrow \ldots \{2,3,4,5,6,9\} \ldots \]

//               0 1 2 3 4 5 6 7 8 9   index
int [] parent = {0,1,9,4,9,6,6,7,8,9};
union(3, 5)
//     parent = ???

Q: How to implement union(p,q)?
A: Set parent of p's root to parent of q's root.

quick-union (lazy approach)

\[ \ldots \{2,3,4,9\} \{5,6\} \ldots \Rightarrow \ldots \{2,3,4,5,6,9\} \ldots \]

//               0 1 2 3 4 5 6 7 8 9   index
int [] parent = {0,1,9,4,9,6,6,7,8,9};
union(3, 5)
//               0 1 2 3 4 5 6 7 8 9   index
//     parent = {0,1,9,4,9,6,6,7,8,6}
//                                 ^ only one value changes!

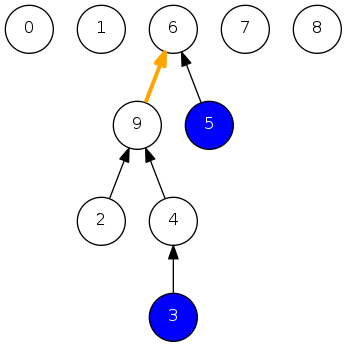

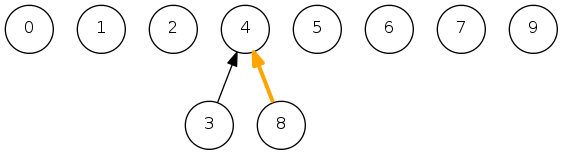

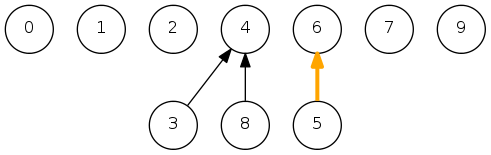

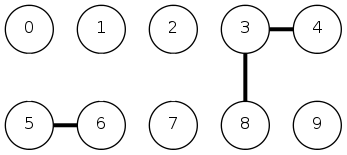

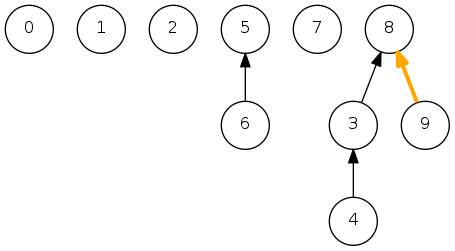

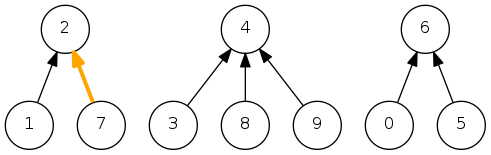

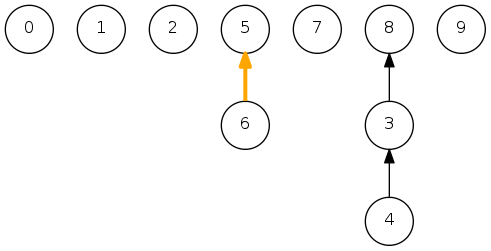

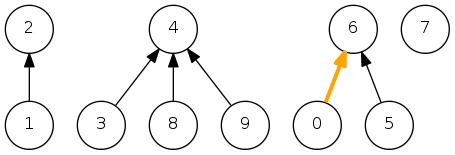

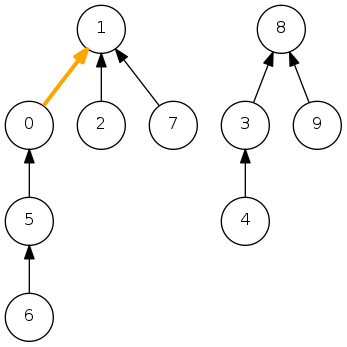

quick-union demo

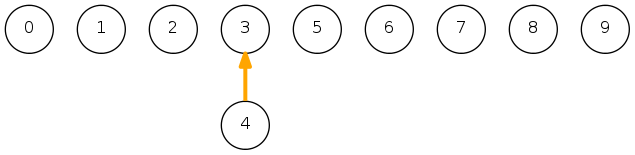

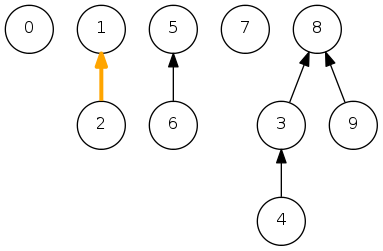

union(4,3)
union(3,8)
union(6,5)
union(9,4)
union(2,1)
isConnected(8,9)
!isConnected(5,4)
union(5,0)
union(7,2)
union(6,1)
union(7,3)

quick-union demo

int [] parent = {0, ..., 9};

union(4,3);  // <== action

index:    0 1 2 3 4 5 6 7 8 9
parent: { 0 1 2 3 4 5 6 7 8 9 }
parent: { ??? }


union(4,3);

union(3,8);  // <== action

index:    0 1 2 3 4 5 6 7 8 9
parent: { 0 1 2 3 4 5 6 7 8 9 }
parent: { 0 1 2 3 3 5 6 7 8 9 }
parent: { ??? }


union(3,8);

union(6,5);  // <== action

index:    0 1 2 3 4 5 6 7 8 9
parent: { 0 1 2 3 3 5 6 7 8 9 }
parent: { 0 1 2 8 3 5 6 7 8 9 }
parent: { ??? }


union(6,5);

union(9,4);  // <== action

index:    0 1 2 3 4 5 6 7 8 9
parent: { 0 1 2 8 3 5 6 7 8 9 }
parent: { 0 1 2 8 3 5 5 7 8 9 }
parent: { ??? }


union(9,4);

union(2,1);  // <== action

index:    0 1 2 3 4 5 6 7 8 9
parent: { 0 1 2 8 3 5 5 7 8 9 }
parent: { 0 1 2 8 3 5 5 7 8 8 }
parent: { ??? }


union(2,1);

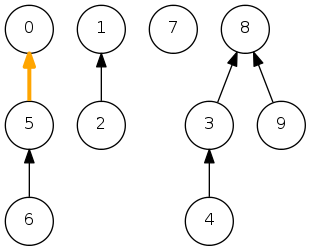

union(5,0);  // <== action

index:    0 1 2 3 4 5 6 7 8 9
parent: { 0 1 2 8 3 5 5 7 8 8 }
parent: { 0 1 1 8 3 5 5 7 8 8 }
parent: { ??? }


union(5,0);

union(7,2);  // <== action

index:    0 1 2 3 4 5 6 7 8 9
parent: { 0 1 1 8 3 5 5 7 8 8 }
parent: { 0 1 1 8 3 0 5 7 8 8 }
parent: { ??? }


union(7,2);

union(6,1);  // <== action

index:    0 1 2 3 4 5 6 7 8 9
parent: { 0 1 1 8 3 0 5 7 8 8 }
parent: { 0 1 1 8 3 0 5 1 8 8 }
parent: { ??? }


union(6,1);

union(7,3);  // <== action

index:    0 1 2 3 4 5 6 7 8 9
parent: { 0 1 1 8 3 0 5 1 8 8 }
parent: { 1 1 1 8 3 0 5 1 8 8 }
parent: { ??? }


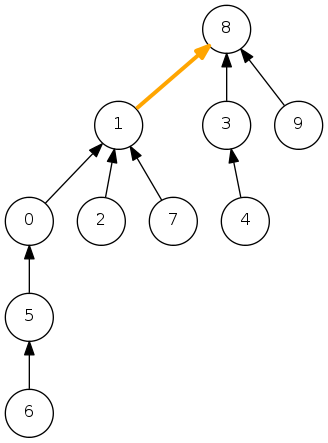

union(7,3);

// all done!

index:    0 1 2 3 4 5 6 7 8 9
parent: { 1 1 1 8 3 0 5 1 8 8 }
parent: { 1 8 1 8 3 0 5 1 8 8 }

quick-union java implementation

public class QuickUnionUF {
    private int[] parent;

    public QuickUnionUF(int N) {
        // set parent of each element to itself.  N array accesses
        parent = new int[N];
        for(int i = 0; i < N; i++)
            parent[i] = i;
    }

    public int find(int p) {
        // chase parent pointers until root.  depth of p array accesses
        while(p != parent[p])
            p = parent[p];
        return p;
    }

    public void union(int p, int q) {
        // change root of p to point to root of q
        // depth of p and q array accesses
        int i = find(p);
        int j = find(q);
        if(i == j) return; // already unioned
        parent[i] = j;
    }
}

quick-union is also too slow

Cost model: Number of array accesses (for read or write)

algorithm	initialize	union	find
quick-find	\(N\)	\(N\)	\(1\)
quick-union	\(N\)	\(N^\dagger\)	\(N\)

\(\dagger\) includes cost of finding two roots

Note

Analyzed quick-union for worst case

quick-union is also too slow

Quick-find defect

Union too expensive (\(N\) array accesses)
Trees are flat, but too expensive to keep them flat

Quick-union defect

Trees can get tall
Find too expensive (\(N\) array accesses)
- Union uses Find, so also too expensive

// worst-case input
union(0,1);
union(0,2);
union(0,3);
union(0,4);

Union-find

improvements

improvement 1: weighting

Modify quick-union to avoid tall trees (weighted quick-union)

Keep track of size (weight) of each tree
- Use number of elements in tree as size
- (exercise: why not depth or height?)

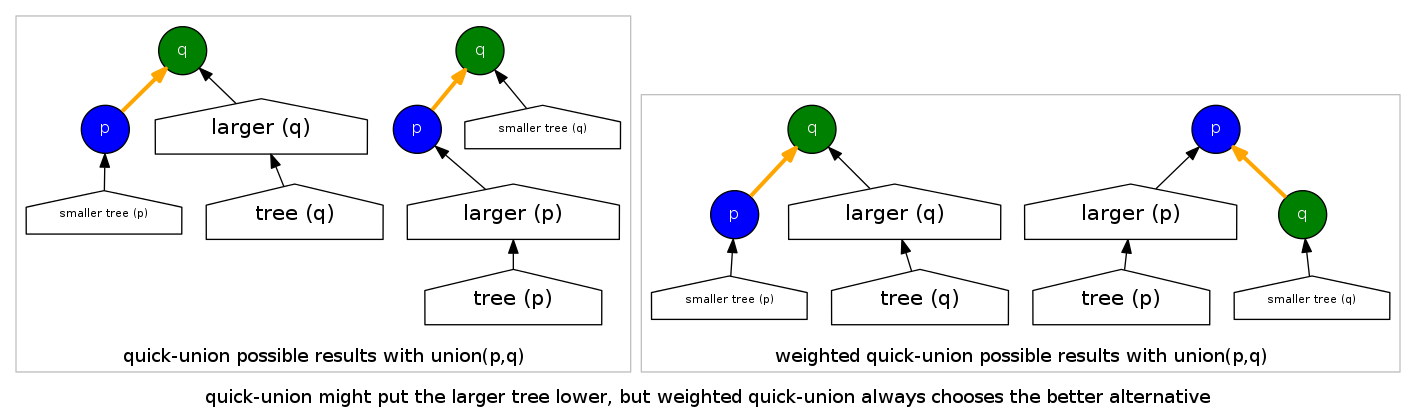

Always link root of smaller tree to root of larger tree

quiz: weighted quick-union

live view; card view; qrcode

Suppose that the parent[] array during weighted quick-union is

//               0 1 2 3 4 5 6 7 8 9
int [] parent = {0,0,0,0,0,0,7,8,8,8};

Which parent[] entry changes during union(2,6)?

A.	`parent[0]`
B.	`parent[2]`
C.	`parent[6]`
D.	`parent[8]`

weighted quick-union demo

union(4,3)
union(3,8)
union(6,5)
union(9,4)
union(2,1)
union(5,0)
union(7,2)
union(6,1)
union(7,3)

weighted quick-union demo

int [] parent = {0,1,2,3,4,5,6,7,8,9};
union(4,3);     // <- next step

union(4,3);     // 0 1 2 3 4 5 6 7 8 9 => 0 1 2 4 4 5 6 7 8 9
union(3,8);     // <- next step

union(3,8);     // 0 1 2 4 4 5 6 7 8 9 => 0 1 2 4 4 5 6 7 4 9
union(6,5);     // <- next step

union(6,5);     // 0 1 2 4 4 5 6 7 4 9 => 0 1 2 4 4 6 6 7 4 9

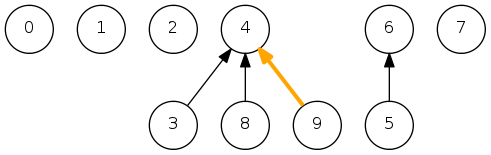

union(9,4);     // <- next step

union(9,4);     // 0 1 2 4 4 6 6 7 4 9 => 0 1 2 4 4 6 6 7 4 4

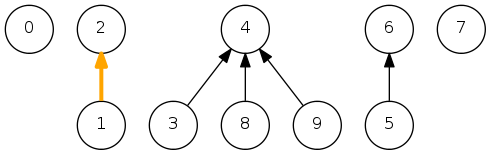

union(2,1);     // <- next step

union(2,1);     // 0 1 2 4 4 6 6 7 4 4 => 0 2 2 4 4 6 6 7 4 4
union(5,0);     // <- next step

union(5,0);     // 0 2 2 4 4 6 6 7 4 4 => 6 2 2 4 4 6 6 7 4 4
union(7,2);     // <- next step

union(7,2);     // 6 2 2 4 4 6 6 7 4 4 => 6 2 2 4 4 6 6 2 4 4
union(6,1);     // <- next step

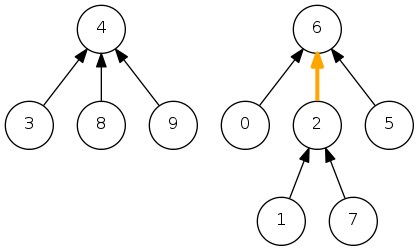

union(6,1);     // 6 2 2 4 4 6 6 2 4 4 => 6 2 6 4 4 6 6 2 4 4
union(7,3);     // <- next step

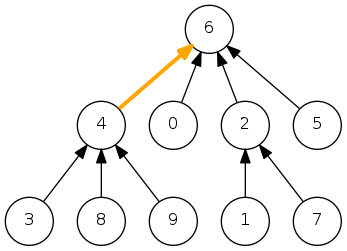

union(7,3);     // 6 2 6 4 4 6 6 2 4 4 => 6 2 6 4 6 6 6 2 4 4
// all done!

weighted quick-union demo

quick-union

weighted quick-union

quick-union vs. weighted quick-union

A larger example: 100 items, 88 union() operations

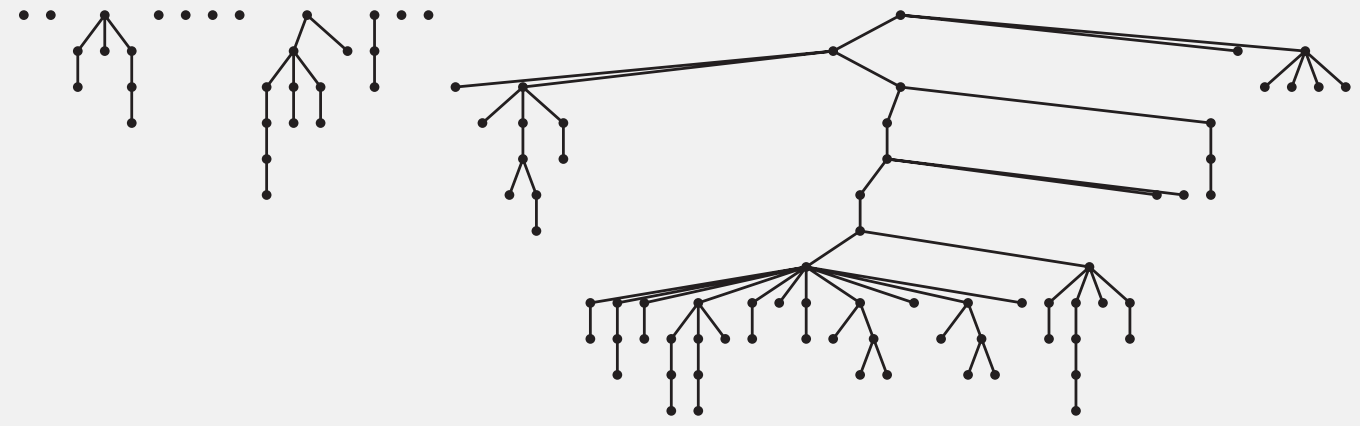

quick-union: average distance to root = 5.11

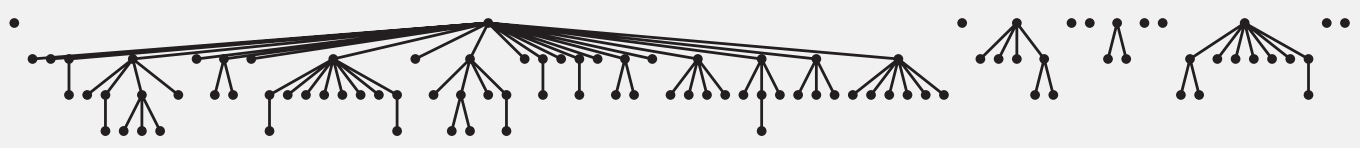

weighted quick-union: average distance to root = 1.52

weighted quick-union java implementation

Data structure: same as quick-union, but maintain extra array size[i] to count number of elements in the tree rooted at i, initially set to 1.

Find: identical to quick-union

Union: modify quick-union to:

link root of smaller tree to root of larger tree
update the size[] array

int i = find(p);
int j = find(q);
if(i == j) return;
if(size[i] < size[j]) { parent[i] = j; size[j] += size[i]; }
else                  { parent[j] = i; size[i] += size[j]; }

weighted quick-union analysis

Running time

Find: takes time proportional to depth of p
Union: takes constant time, given two roots.

Proposition: depth of any node \(\textsf{x}\) is at most \(\lg N\)

\[N = 10\] \[\text{depth}(\textsf{x}) \leq \lg N \approx 3.32\]

Note

In computer science, \(\lg\) means base-2 logarithm

weighted quick-union analysis

Proposition: depth of any node \(\textsf{x}\) is at most \(\lg N\)

Proof: What causes the depth of element \(\textsf{x}\) to increase? Increase by 1 when root of tree \(T_1\) containing \(\textsf{X}\) is linked to root of tree \(T_2\).

Since \(|T_2| \geq |T_1|\), the size of the tree containing \(\textsf{X}\) at least doubles .
Size of tree containing \(\textsf{x}\) can double at most \(\lg N\) times. Why?

weighted quick-union analysis

algorithm	initialize	union	find
quick-find	\(N\)	\(N\)	\(1\)
quick-union	\(N\)	\(N^\dagger\)	\(N\)
weighted QU	\(N\)	\(\lg N^\dagger\)	\(\lg N\)

\(\dagger\) includes cost of finding two roots

Note

Analyzed quick-union for worst case

summary

Key point: weighted quick-union makes it possible to solve problems that could not otherwise be addressed.

algorithm	worst-case time
quick-find	\(M N\)
quick-union	\(M N\)
weighted QU	\(N + M \log N\)
QU + path compression*	\(N + M \log N\)
weighted QU + path compression*	\(N + M \invackermann(N) \approx N+M\)

Order of growth for \(M\) union-find ops on a set of \(N\) elements

Example: \(10^{10}\) unions and finds with \(10^{10}\) elements

WQUPC reduces time from CENTURIES to SECONDS
Supercomputer won't help much; good algorithm enables solution

\(\invackermann\): inverse Ackermann function, link
*path compression analysis is amortized

Union-Find

applications

Union-find applications

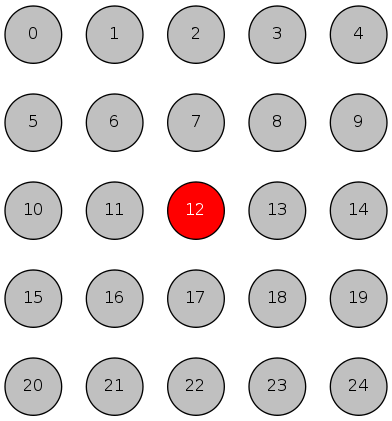

percolation
games (Go, Hex)
least common ancestor
dynamic-connectivity problem
equivalence of finite state automata
Hoshen-Kopelman algorithm in physics
Hinley-Milner polymorphic type inference
Kruskal's minimum spanning tree algorithm
Compiling equivalence statements in Fortran
morphological attribute openings and closings
Matlab's bwlabel() function in image processing

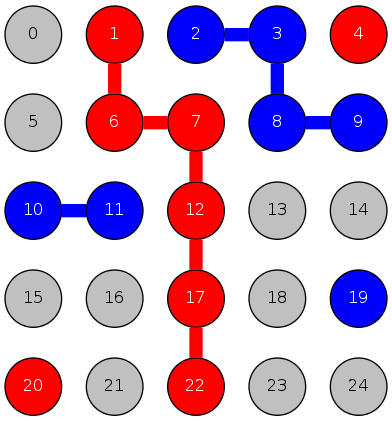

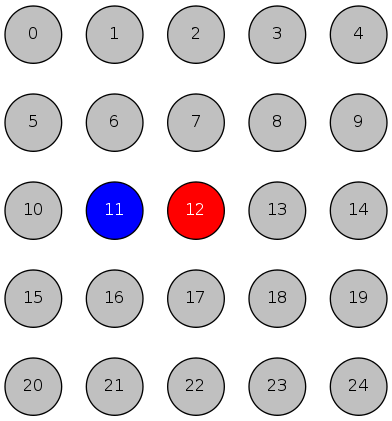

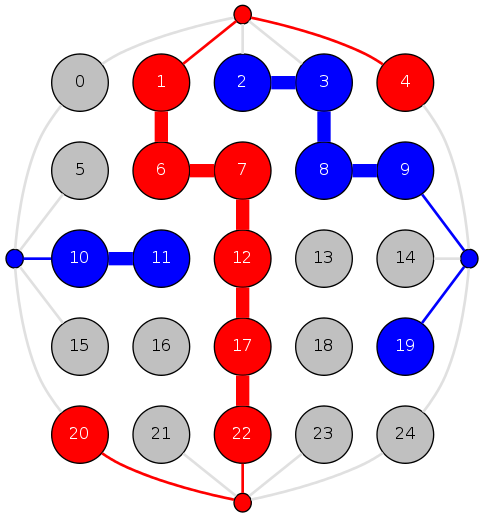

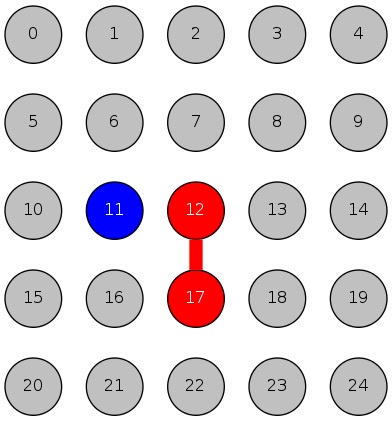

hex, the game

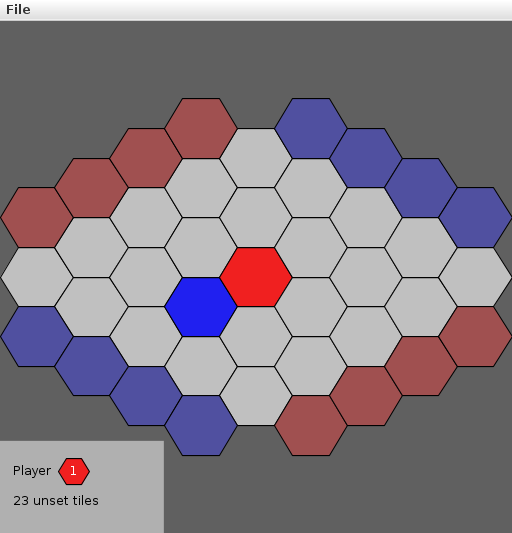

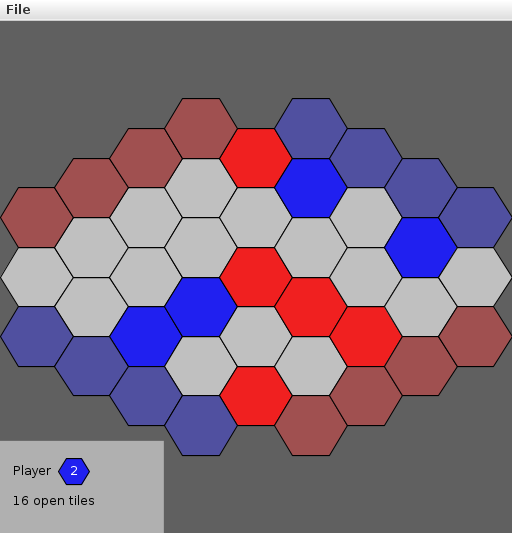

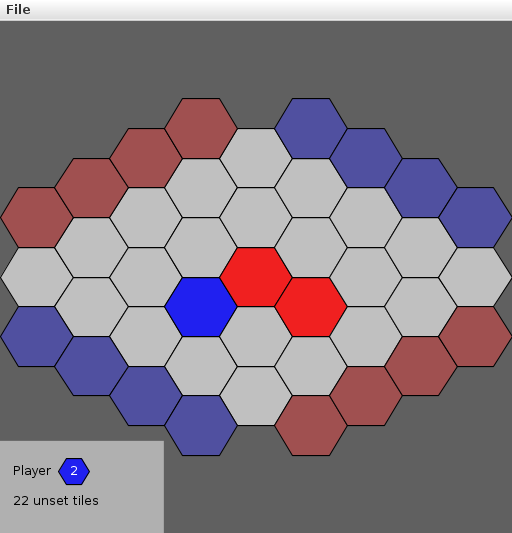

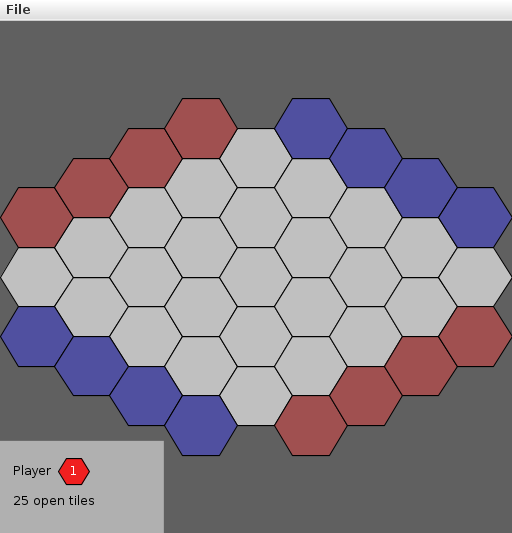

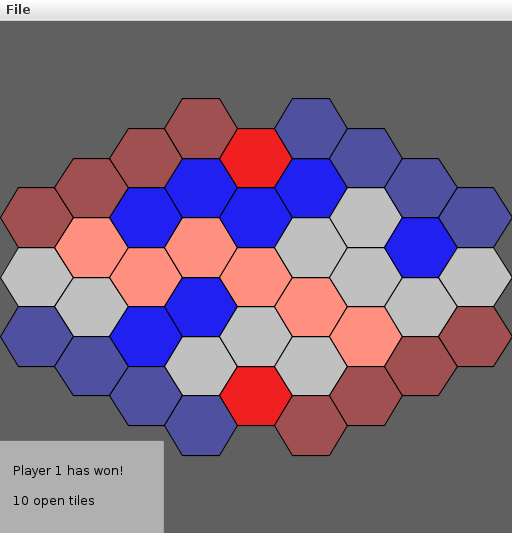

The game of Hex is played on a diamond-shaped board of hexagons. Two players alternate turns by placing their colored stones (yellow/cyan, black/white, red/blue, etc.) on the board, attempting to make a connection between their respective opposite sides.
